It is used to position the trolley and charging pile, and keep the charging module on the trolley in
contact with the charging pile in the same position to ensure normal charging during wireless
charging.
7.58.2 Disassembly and Assembly
Precautions
Protect the exterior surface of the parts.
Specific Steps
There are multiple suction cups under the wireless charging guide plate for ground adsorption.
Remove the guide plate by holding one side of the guide plate.
7.58.3 Commissioning and Verification
None

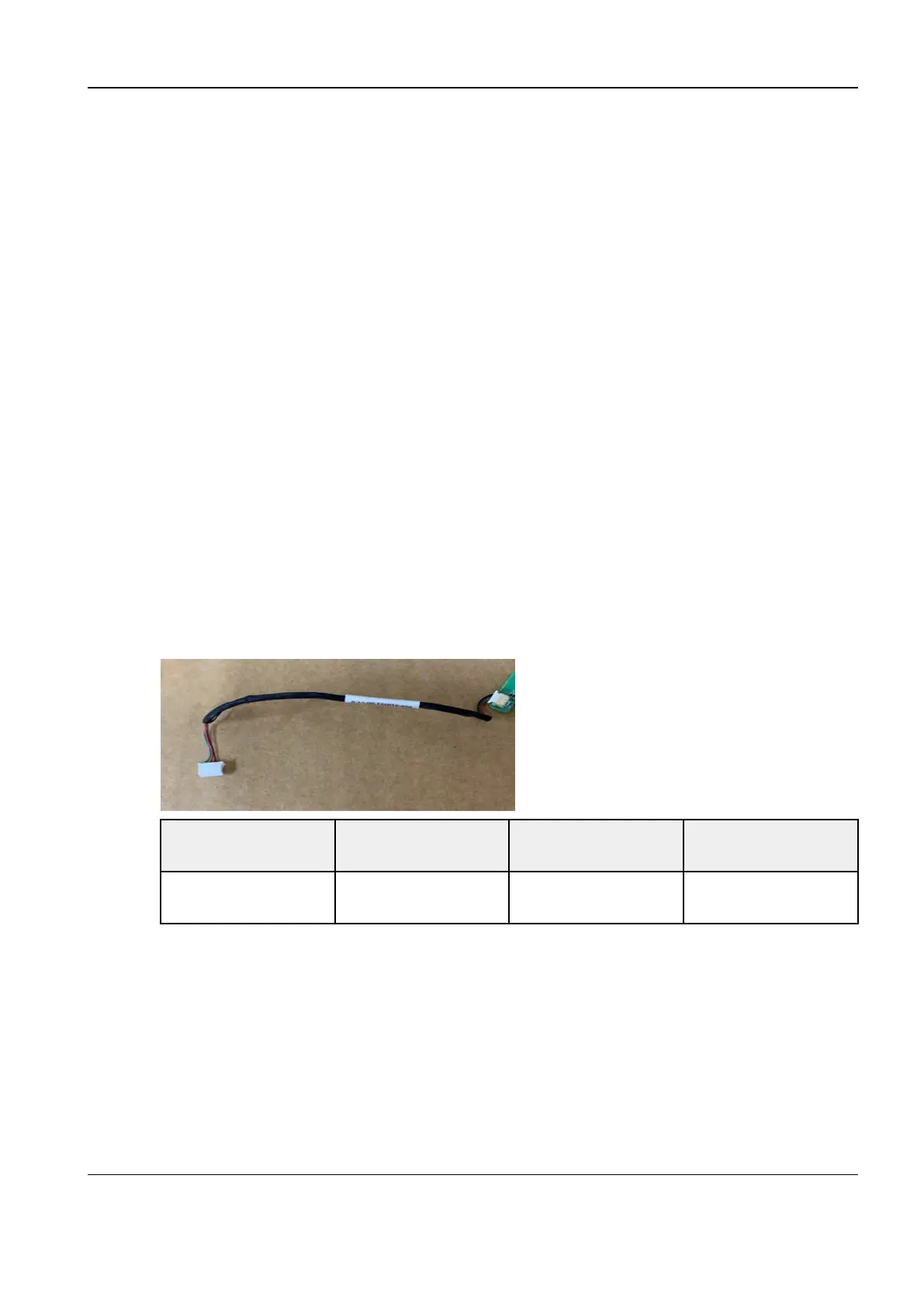

7.59 On/off button signal cable
7.59.1 General Information
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name
115-083629-00 On/off button signal
cable
7.59.2 Disassembly and Assembly
Precautions
None
Tools Required
None
Diagnostic Ultrasound System
Service Manual
