Revision:1.0(2023-01-12)
74
1. The room is well ventilated or equipped with an air conditioning system.
2. There are sufficient clearances behind and at both sides of the system. Otherwise, the system
may overheat and malfunction.
3. The brightness in the room is adjustable.
4. In addition to an independent power outlet for the ultrasound system, three or four power
outlets are available on the wall for other medical devices.
5. Peripherals must be placed within 2 m from the power outlets and within 1 m from the
ultrasound system to facilitate cable connections.

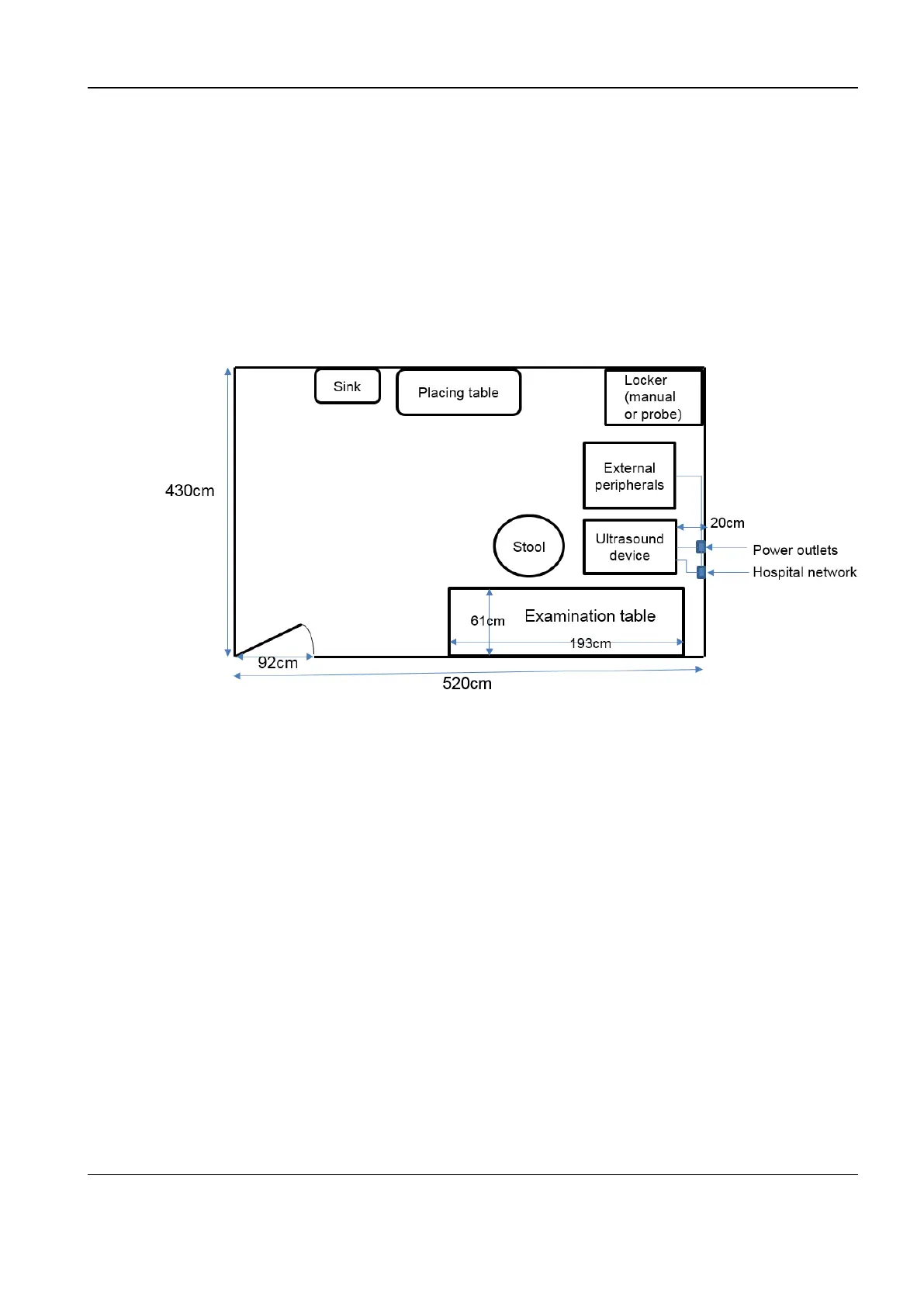

Figure3–1 (Recommended room size)
3.1.6 Network Requirements
33..11..66..11 Network Requirements
This ultrasound system supports wireless and wired LAN connections.
The system supports wireless data transmission and therefore can be moved between
departments or areas. It can reconnect to a mobile network automatically after disconnection from
the network and resume the previous data transmission task after the reconnection. Before
installing the system, check the following information about the network devices in the hospital:
• General information: default gateway IP address and other router information
• DICOM application information: DICOM server name, DICOM port number, AE title, number of
channels, and IP address
3.1.7 Other Requirements
33..11..77..11 Other Requirements
Confirm the following items before the installation:
• Video format used in the country or region
Diagnostic Ultrasound System
Service Manual
3 Installation
