Revision:1.0(2023-01-12)
58
• IO module: It is used for inputs and outputs of audio and video signal, network signal, and USB
port information.
22..33..99..22 Monitor Assembly

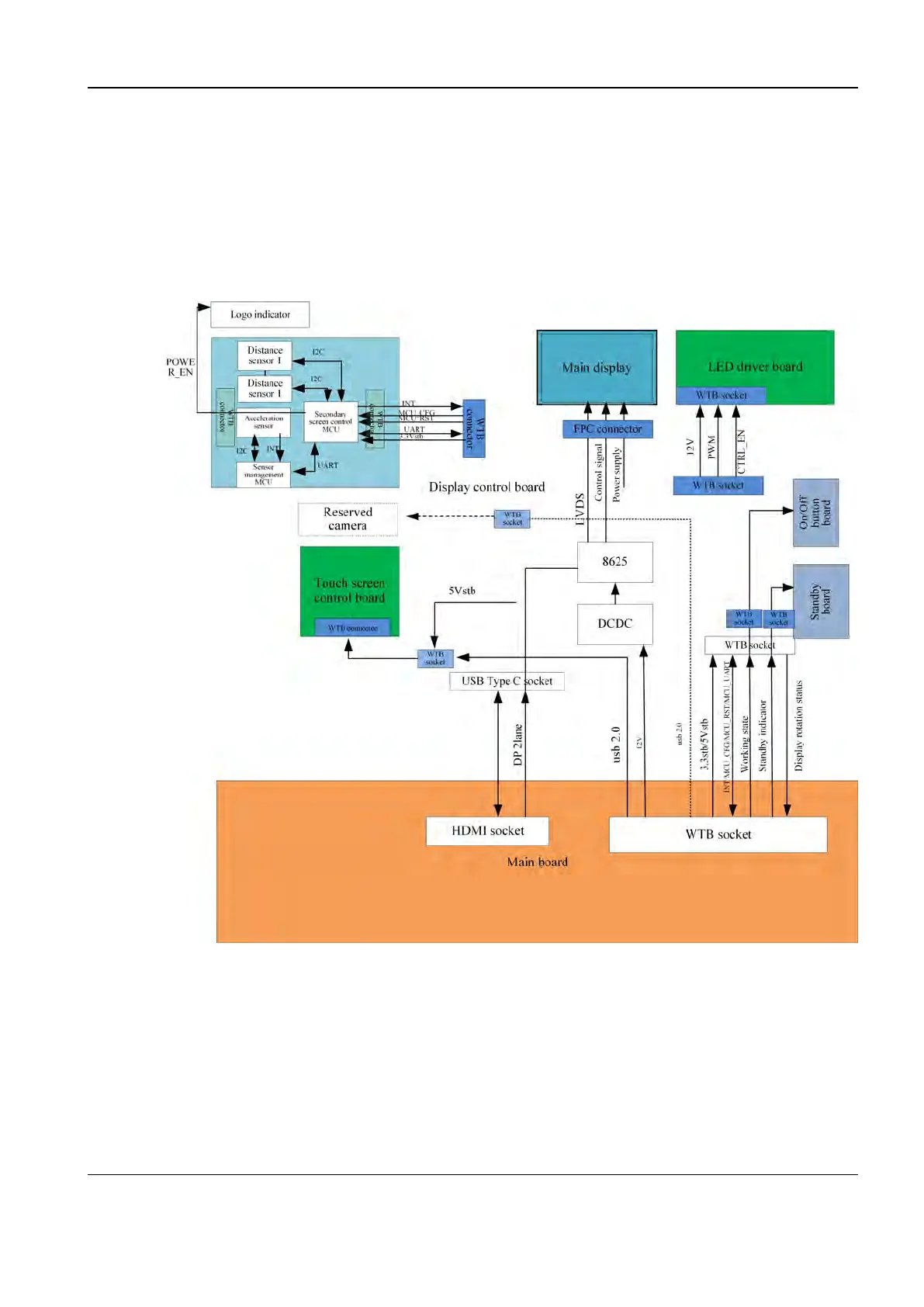

Block diagram of the display assembly
Figure2–18 Block diagram of the display assembly
The main display shows the main interface of the ultrasound application, including the imaging
area.
The main display functions are designed as follows:
23.8 inches, resolution: 1920 x 1080@60±1 Hz.
Angle of view: left and right are both 176 degrees or above; upper and lower are both 176
degrees or above.
Brightness and contrast can be adjusted by software communication.
There is a status indicator.
Diagnostic Ultrasound System
Service Manual
2 Product Knowledge
