1 Eight M4x12 crosshead combination screws
3. Refer to the disassembly procedures in 7.32.2
Disassembly and Assembly and 7.35.2
Disassembly and Assembly to remove the AC-DC board and the Base Bottom Cover, so as to
obtain the Retractable AC Cable Assembly.
7.33.3 Commissioning and Verification
None
7.34 Base Cover
7.34.1 General Information
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name

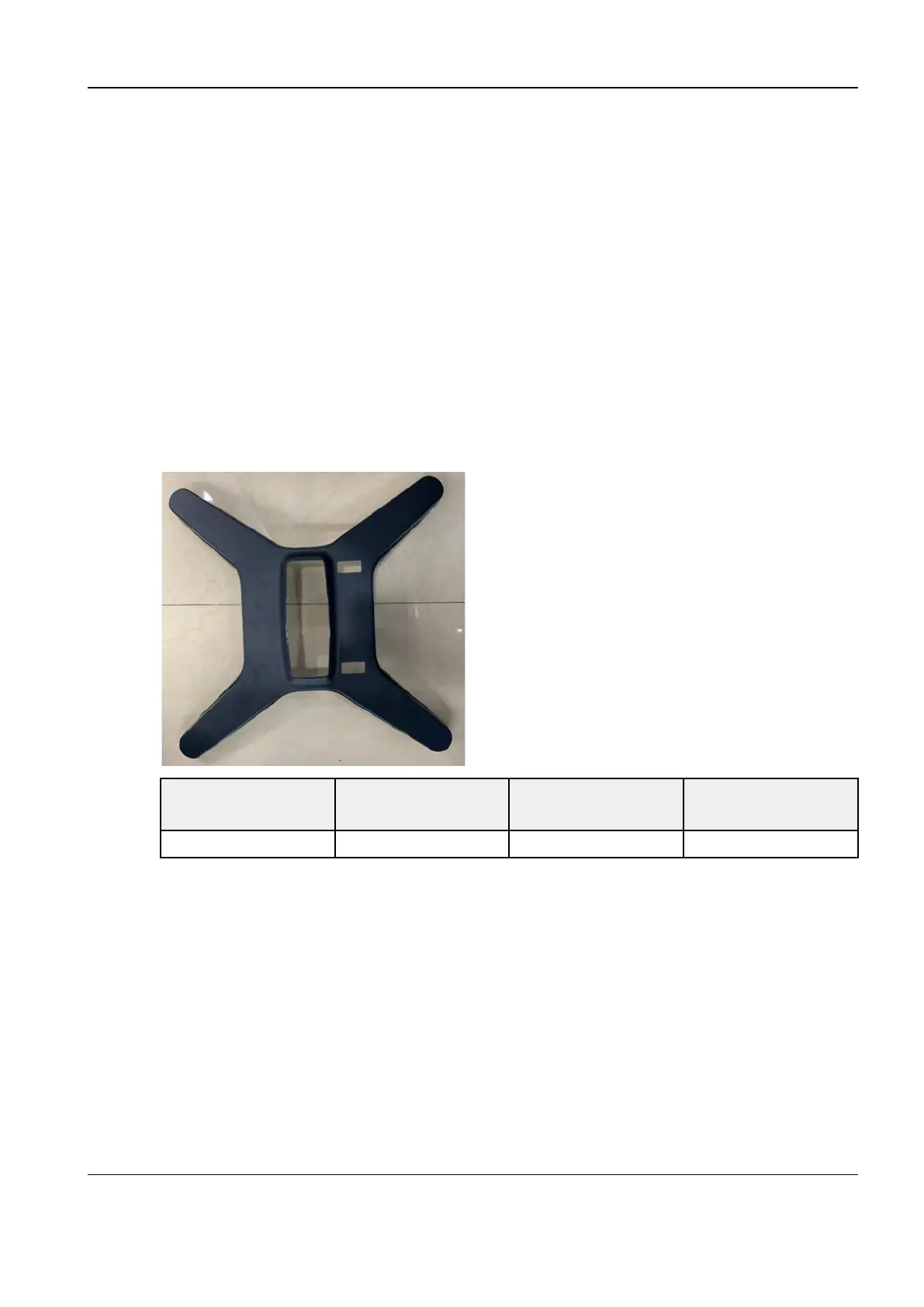

043-014425-00 Base Cover
7.34.2 Disassembly and Assembly
Precautions
Protect the exterior surface of the parts.
Tools Required
Art knife, crosshead screwdriver (M3\M4), flatheaded screwdriver, and socket head wrench (M5)
Fixtures Required
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
To Next Page
