Mindray TEX20 Service Manual

Revision:1.0(2023-01-12)
199
7.4 Display Rotatory Assy (With conversion
board/FRU)
7.4.1 General Information
FRU Code
FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name

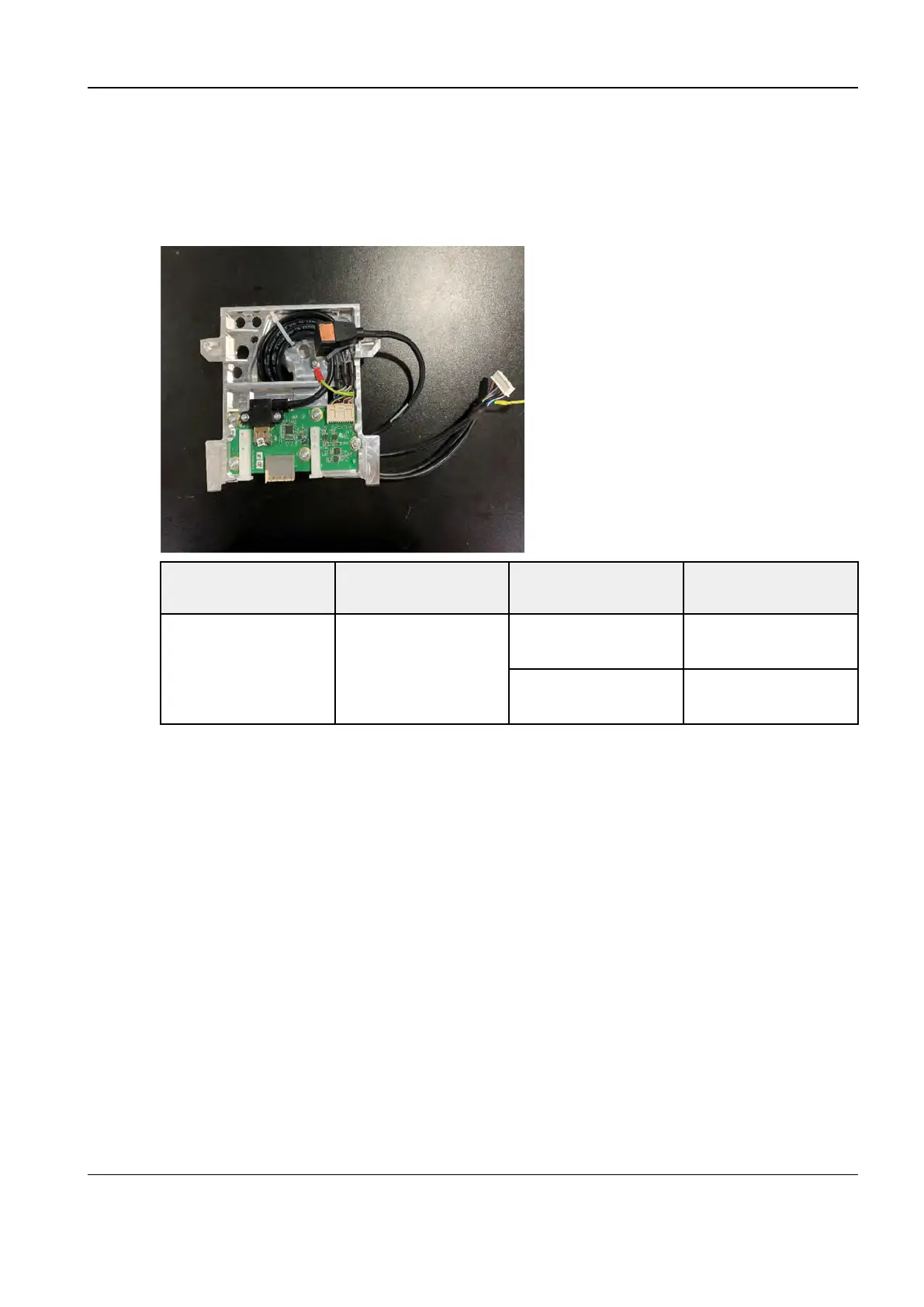

115-083576-00 Display Rotatory Assy
(With conversion
board/FRU)
009-010303-00 LCD Signal cable
(HDMI)
009-010304-00 LCD Power supply_
Control signal cable
Function description:
It supports display rotation.
7.4.2 Disassembly and Assembly
Precautions
Protect the exterior surface of the parts.
Tools Required
Socket head wrench (M5) and crosshead screwdriver (M3)
Fixtures Required
None
Specific Steps
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
