Mindray TEX20 Service Manual

Revision:1.0(2023-01-12)
247
Protect the exterior surface of the parts.
Tools Required
Crosshead screwdriver (M3)
Fixtures Required
None
Specific Steps
1. Refer to the disassembly procedure in 7.47.2 Disassembly and Assembly to take off the battery
box cover. Then remove the fixing screws from the battery box assembly and take off the
battery box assembly. Refer to the disassembly procedures in 7.38.2
Disassembly and
Assembly
, 7.37.2 Disassembly and Assembly, and 7.46.2 Disassembly and Assembly to take off
each assembly.

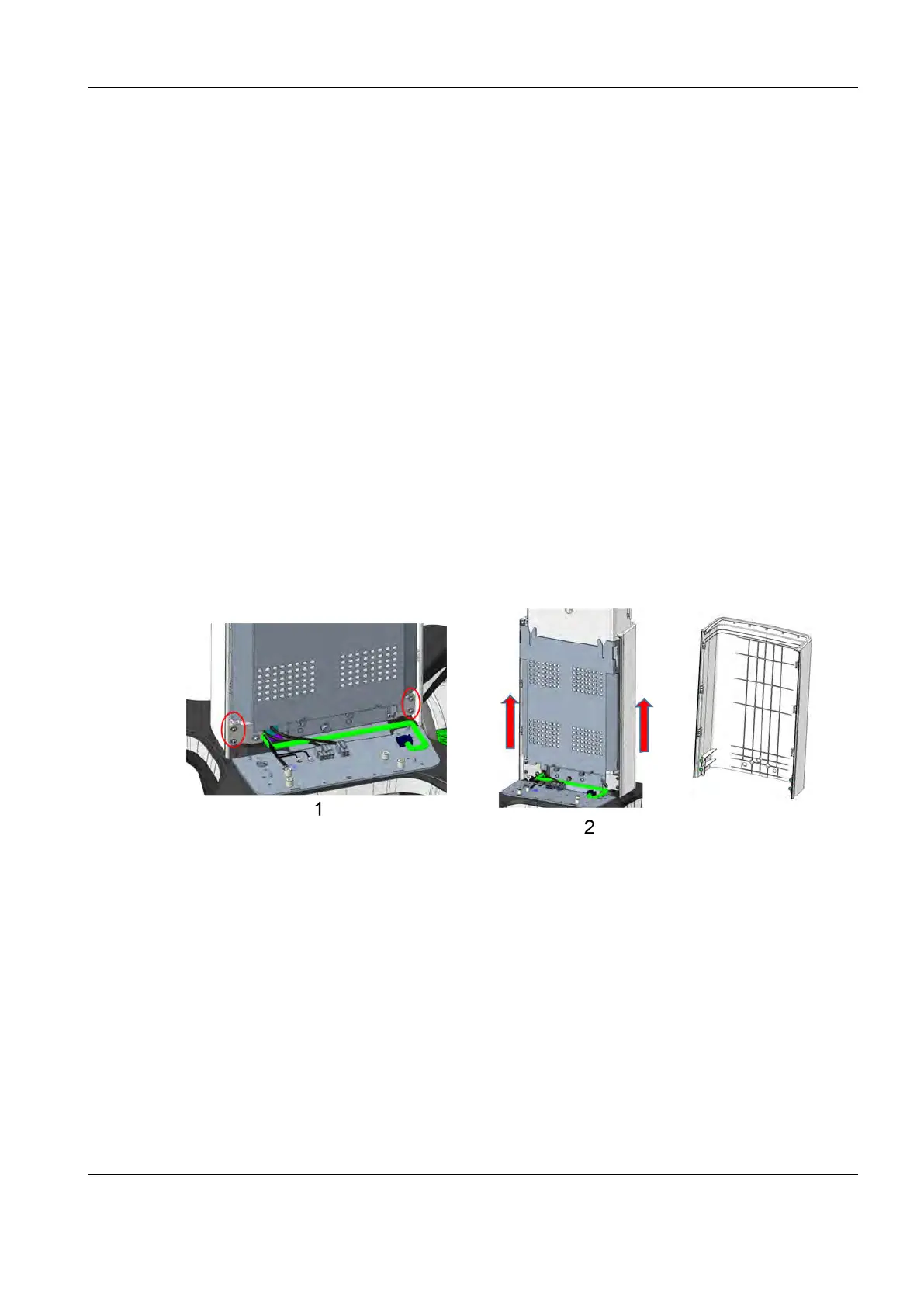

2. Remove the four M3x8 Phillips pan-head screws, hold the two sides of the front housing of the
lower column, and pull out the front housing of the lower column upward.
1 Four M3x8 Phillips pan-head screws
2 Use two hands to hold the two sides of the front housing of the battery box
7.29.3 Commissioning and Verification
None
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
