7.3 Speaker (FRU)
7.3.1 General Information
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name

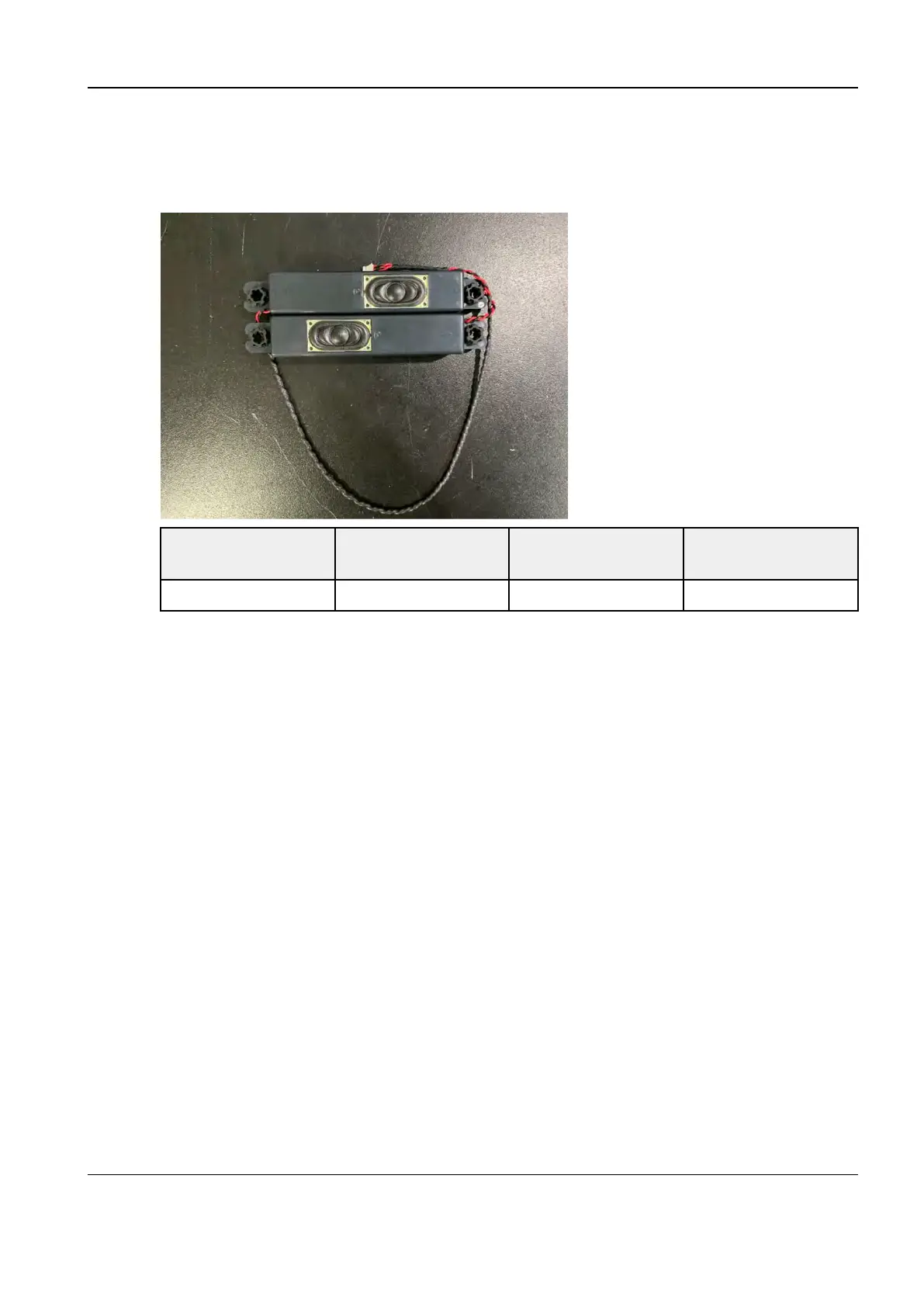

115-083575-00 Speaker (FRU)
Function description:
It outputs sounds such as the PW/CW sound.
7.3.2 Disassembly and Assembly
Precautions
Protect the exterior surface of the parts.
Tools Required
Socket head wrench (M5), crosshead screwdriver (M3), crosshead screwdriver (M4), and
diagonal cutting plier
Fixtures Required
None
Specific Steps
1. Refer to the disassembly procedures in 7.2.2 Disassembly and Assembly, 7.7.2 Disassembly and
Assembly
, and 7.4.2 Disassembly and Assembly to remove the Display Rotatory Assy(With
conversion board).
