Revision:1.0(2023-01-12)
193
7
FRU
Replacement
7.1
Before
Assembly/Disassembly

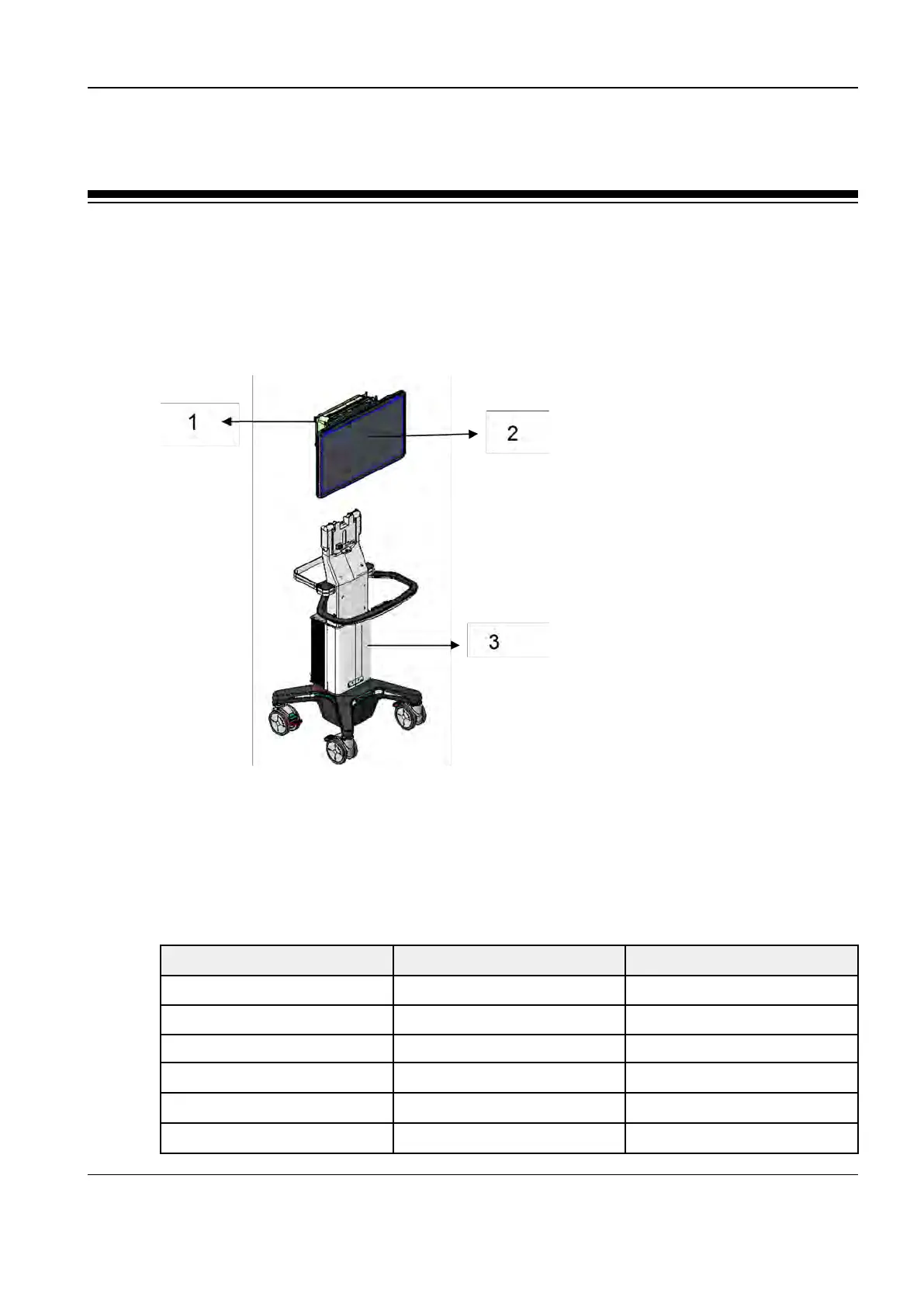

7.1.1
System
Structure
1
Main
unit
assembly
2
Display
assembly
3
Main
unit
lifting
base
7.1.2
Unpacking
T
ools
Name
T
ype
Remarks
Socket
head
wrench
/
M3,
M4,
M5,
M6,
and
M8
Crosshead
screwdriver
107*75
M2,
M3,
and
M4
Flathead
screwdriver
/
/
Sharp
nose
pliers
/
/
Diagonal
cutting
pliers
N-206S
/
Anti-static
gloves
/
/
Diagnostic
Ultrasound
System
Service
Manual
7
FRU
Replacement
191
193
