Mindray TEX20 Service Manual

Revision:1.0(2023-01-12)
239
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name
115-083593-00 Handle Assembly
(FRU)
7.25.2 Disassembly and Assembly
Precautions
Protect the exterior surface of the parts.
Tools Required
Art knife, crosshead screwdriver (M3\M4), flatheaded screwdriver, and socket head wrench (M5)
Fixtures Required
None
Specific Steps
1. Refer to the disassembly procedures in 7.2.2 Disassembly and Assembly, the section of
removing the main unit box, 7.22.2
Disassembly and Assembly, 7.23.2 Disassembly and
Assembly
, 7.30.2 Disassembly and Assembly, and 7.27.2 Disassembly and Assembly, and take
off each assembly.

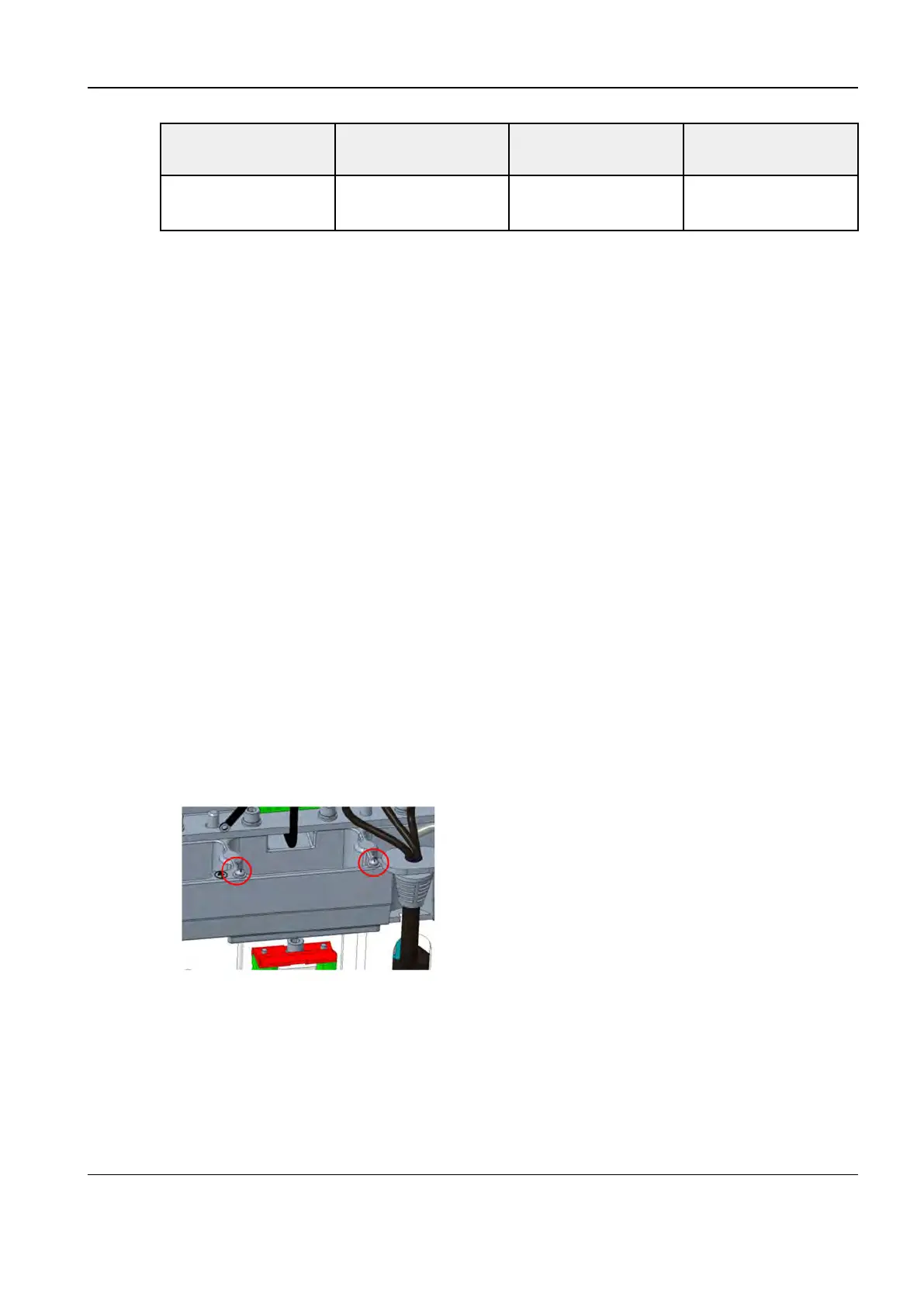

2. Use a crosshead screwdriver to remove the two M3×8 crosshead combination screws that
connect the cables to the ground.
3. Disconnect the Spring Cable socket from other cable sockets.
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
