1 Spring Cable socket

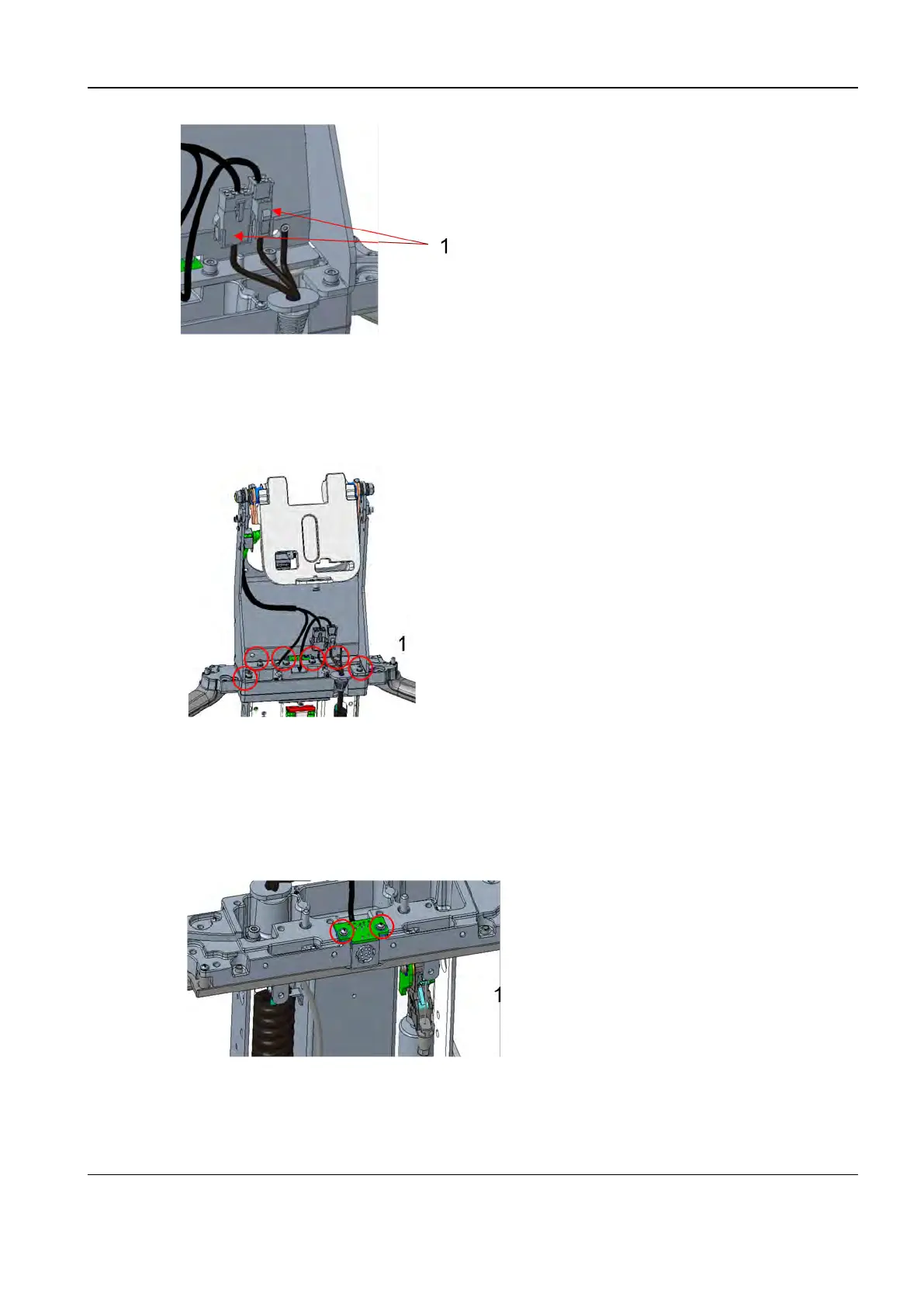

4. Use a socket head wrench to remove the six M5×16 hexagon socket combination screws that
connect the main unit support, so as to take off the main unit support.
1 Six M5×16 hexagon socket combination screws
5. Use a crosshead screwdriver to remove the two M3×8 crosshead combination screws that
connect the Wireless Probe Charging Socket PCBA of the trolley, so as to take off the Wireless
Probe Charging Socket PCBA of the trolley.
1 Two M3×8 crosshead combination screws
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
