3.4.7 Installing the Wireless Probe Charging Station

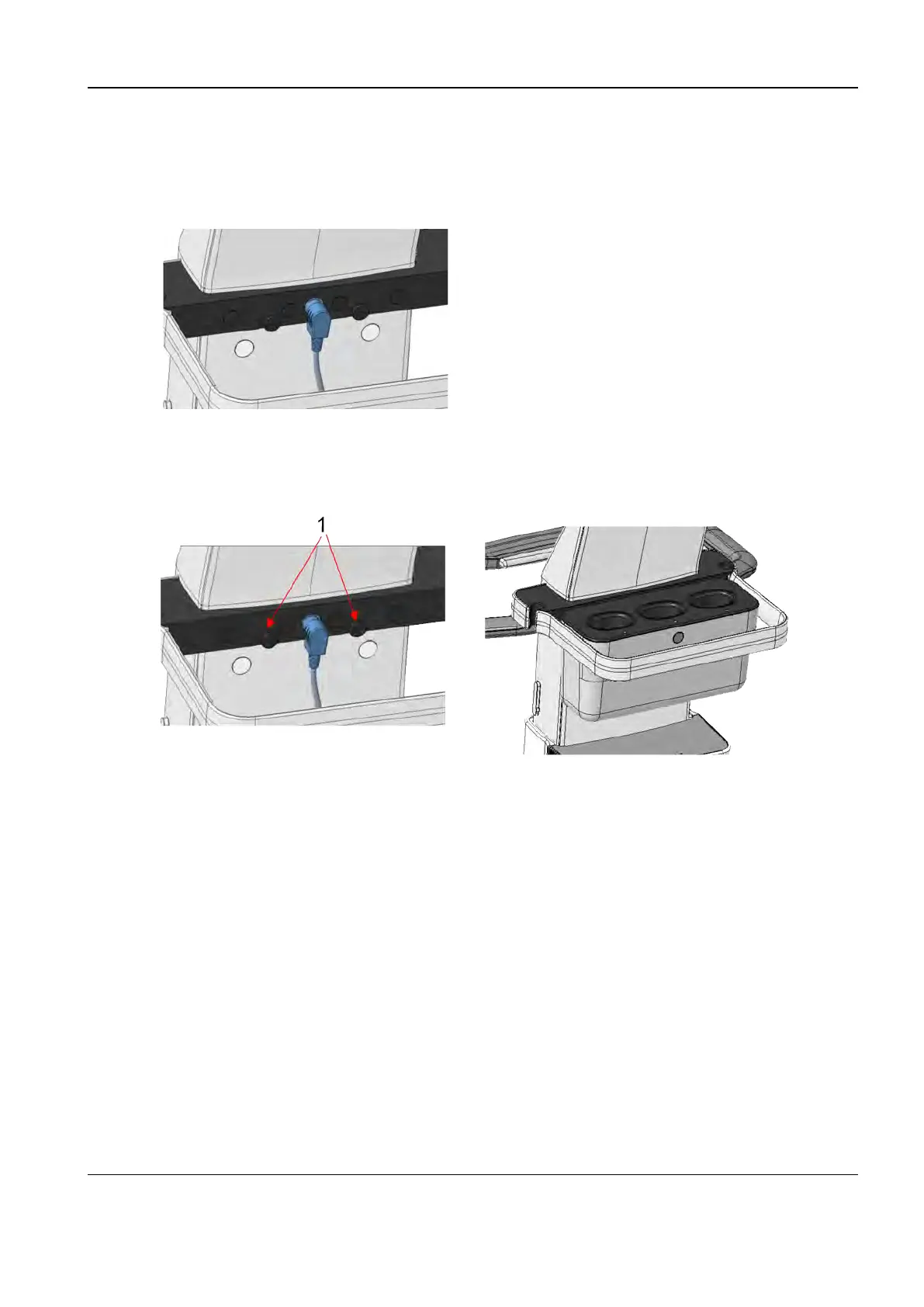

1. Connect the power cord of the Wireless Probe Charging Station to the charging socket of the
trolley.
2. Then, align the Wireless Probe Charging Station with the two protruding positioning points on
the hook decoration cover and press down to mount the Wireless Probe Charging Station on
the trolley.
1 Positioning points
3.4.8 Installing the Wireless Charging Module
Installing the wireless charging pile
1. On the ground
1)Put the bottom of the base down on a piece of cardboard.
