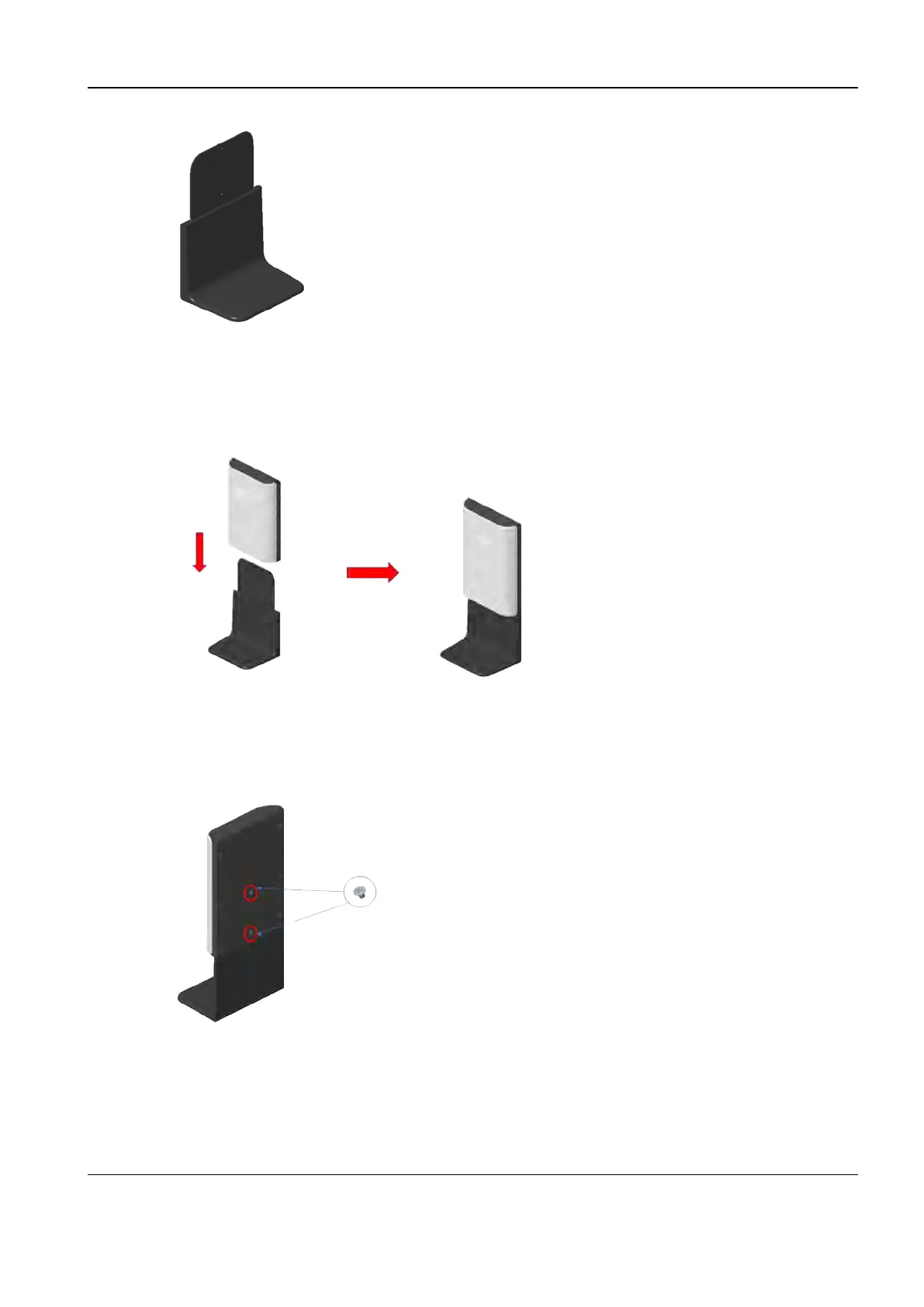

2)Hold the Charging Pile module(China) with both hands, and insert the Charging Pile module
(China) on the base from top to bottom. Pay attention to the mounting direction. The left figure
shows the mounting procedure while the right figure shows that it is mounted.
3)Turn over the mounted assemblies with the back facing forward, and then use a Phillips
screwdriver to mount the two countersunk screws in the red area indicated in the figure below.
4)Tear off the release paper on the rear of the foot pads, and attach the two foot pads to the
positions of the screws.
