3. Route the probe cable in an appropriate place to protect it from trampling. Make sure the cable
is not twisted with other objects. Place the probe head in a safe place to protect it from
collisions.
Disconnecting the probe

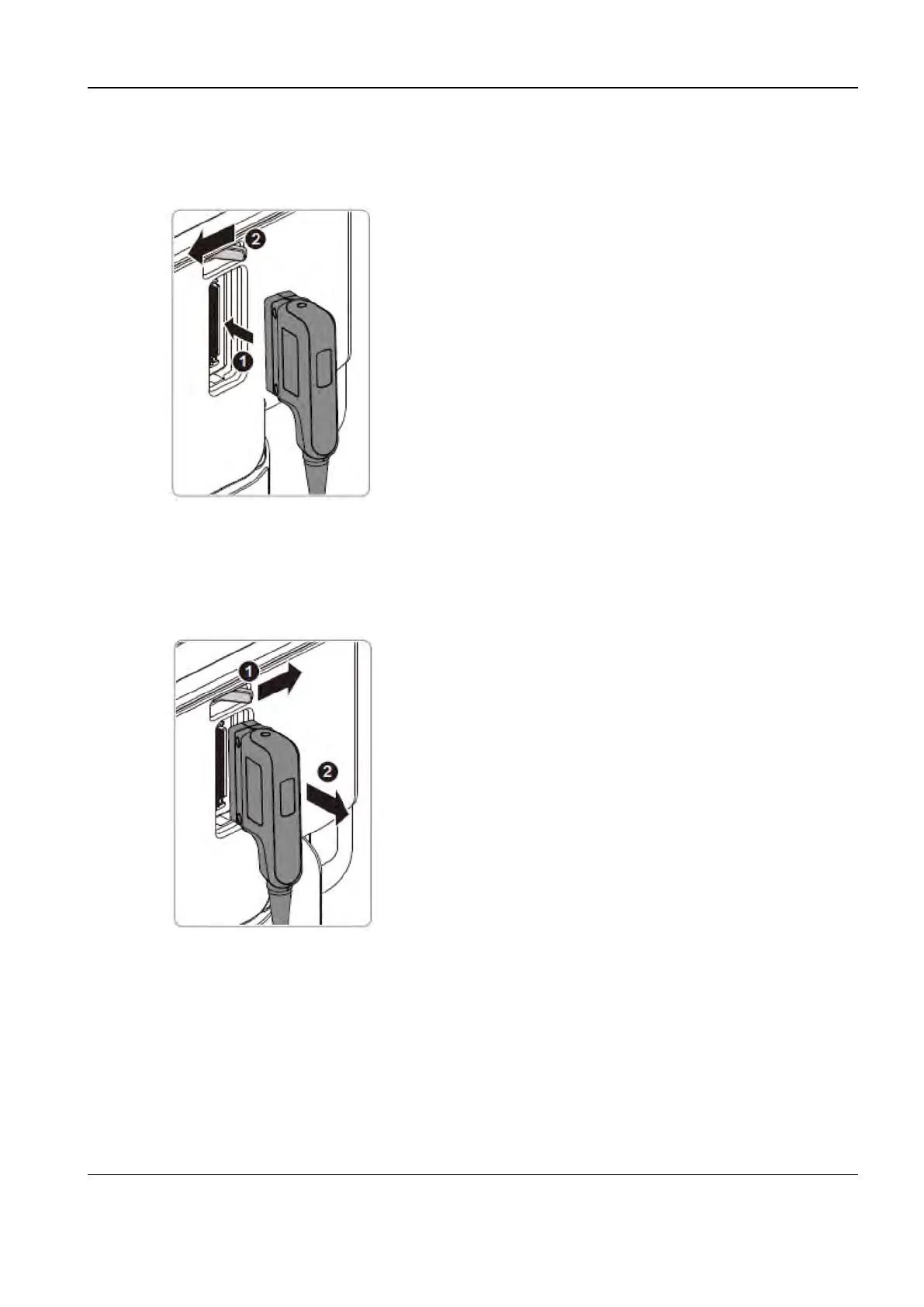

1. Toggle the locking lever to the unlocking position to unlock the connector of the probe.
2. Pull the probe connector straight out.
3.5 Adjusting the System
3.5.1 Adjusting the Display
Hold the bottom edge of the display while adjusting its position.
The display can be rotated clockwise from 0 to 90 degrees, and the screen can be adaptively
displayed in landscape or portrait mode.
Diagnostic Ultrasound System
Service Manual
3 Installation
