Revision:1.0(2023-01-12)
241

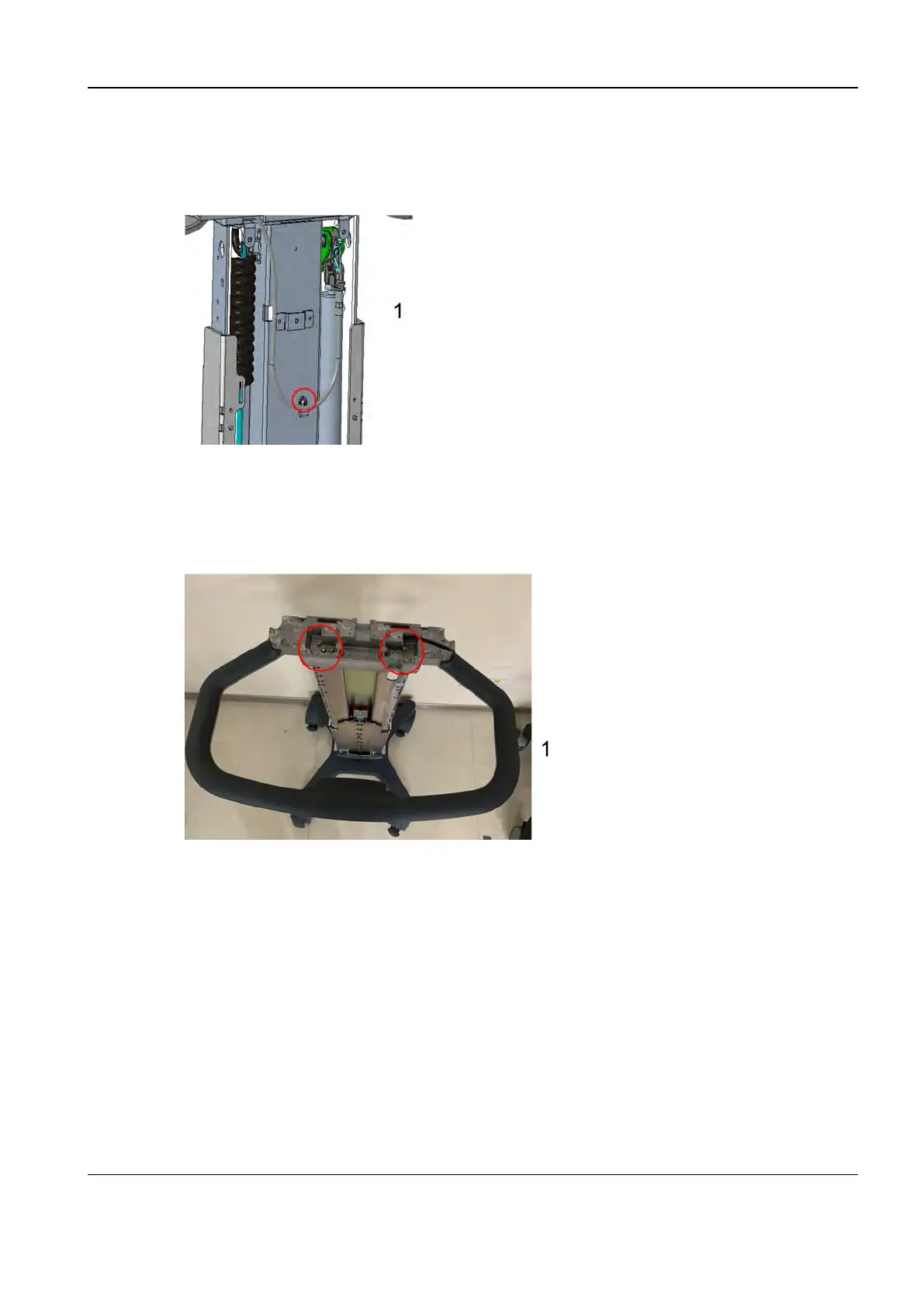

6. Use a crosshead screwdriver to remove the one M4×12 crosshead combination screw that
connects to the inhaul cable, and remove the connection between the inhaul cable and the gas
spring.
1 One M4×12 crosshead screw
7. Use a socket head wrench to remove the six M5×16 hexagon socket combination screws that
connects the handle assembly of the trolley, so as to take off the handle assembly of the trolley.
1 Six M5×16 hexagon socket combination screws
7.25.3 Commissioning and Verification
None
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
