Revision:1.0(2023-01-12)
263

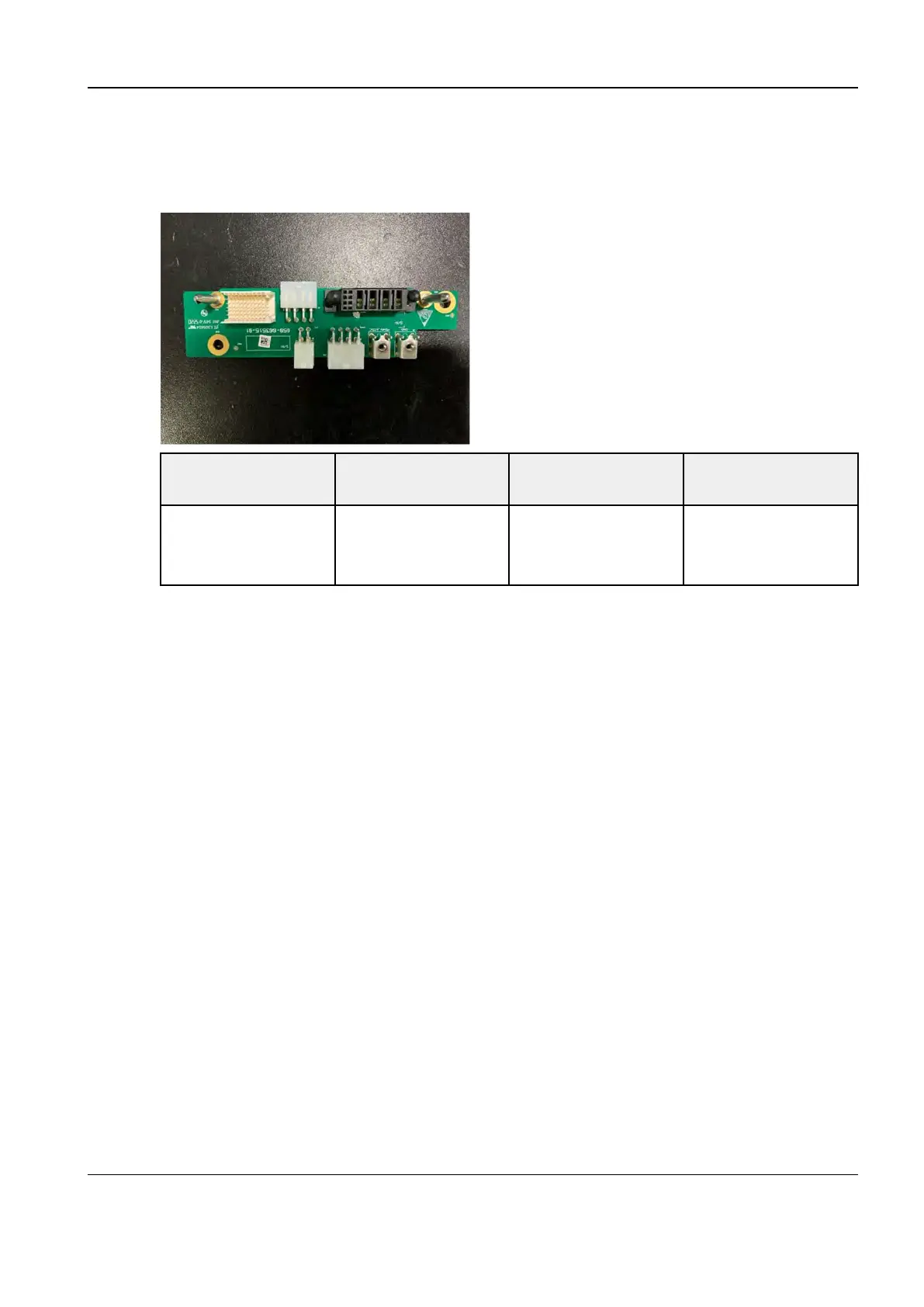

7.38 Mobile Trolley Connecting Board (FRU)
7.38.1 General Information
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name
115-083618-00 Mobile Trolley
Connecting Board
(FRU)
Function description:
It provides connection ports to connect to each module.
7.38.2 Disassembly and Assembly
Precautions
Protect the exterior surface of the parts.
Tools Required
Crosshead screwdriver (M3/M4)
Anti-static gloves
Fixtures Required
None
Specific Steps
1. Refer to the disassembly procedures in 7.47.2 Disassembly and Assembly, 7.50.2 Disassembly
and Assembly
, and 7.51.2 Disassembly and Assembly to take off the battery box assembly.
2. Remove the battery box bracket, as shown in the figure below.
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
