Revision:1.0(2023-01-12)
231
None
Specific Steps
1. Refer to the disassembly procedures in 7.2.2 Disassembly and Assembly and 7.7.2 Disassembly
and Assembly
to remove the Display Assembly and the main unit front cover.
2. Remove the five screw plugs on the main unit back cover, remove the five Phillips pan-head
screws that connect the Main unit back cover, and lift the back cover upward for a short
distance. Then, remove the keyboard signal cable terminal that connects to the main core on
the power keypad, and take off the main unit back cover, middle frame of the main unit, and the
main core.

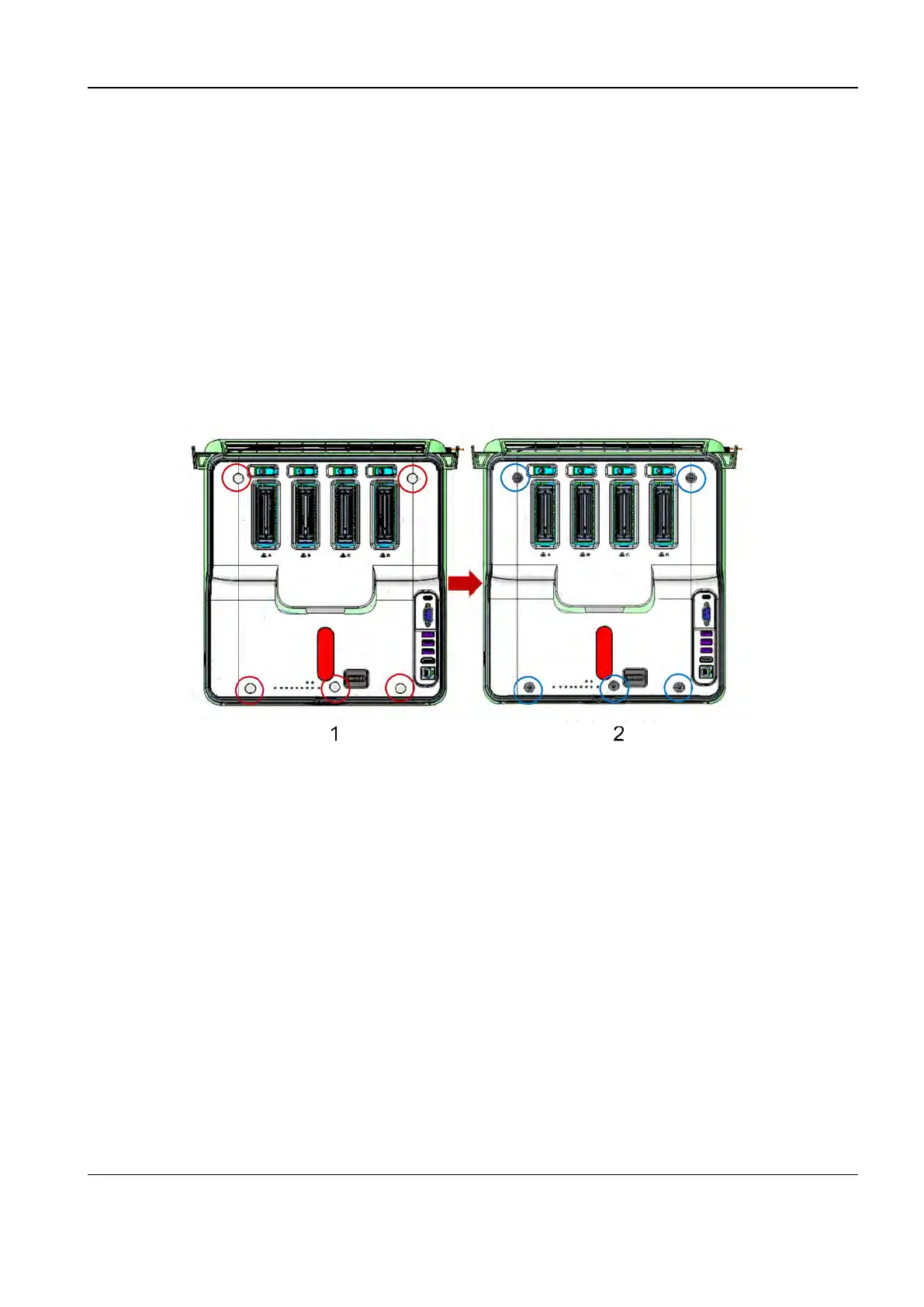

1 Five screw plugs
2 Five Phillips pan-head screws
3. Remove the keyboard signal cable terminal that connects to the main unit on the power
keypad, and take off the main unit back cover.
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
To Next Page
