Revision:1.0(2023-01-12)

Image Model Informa-

tion

Remarks

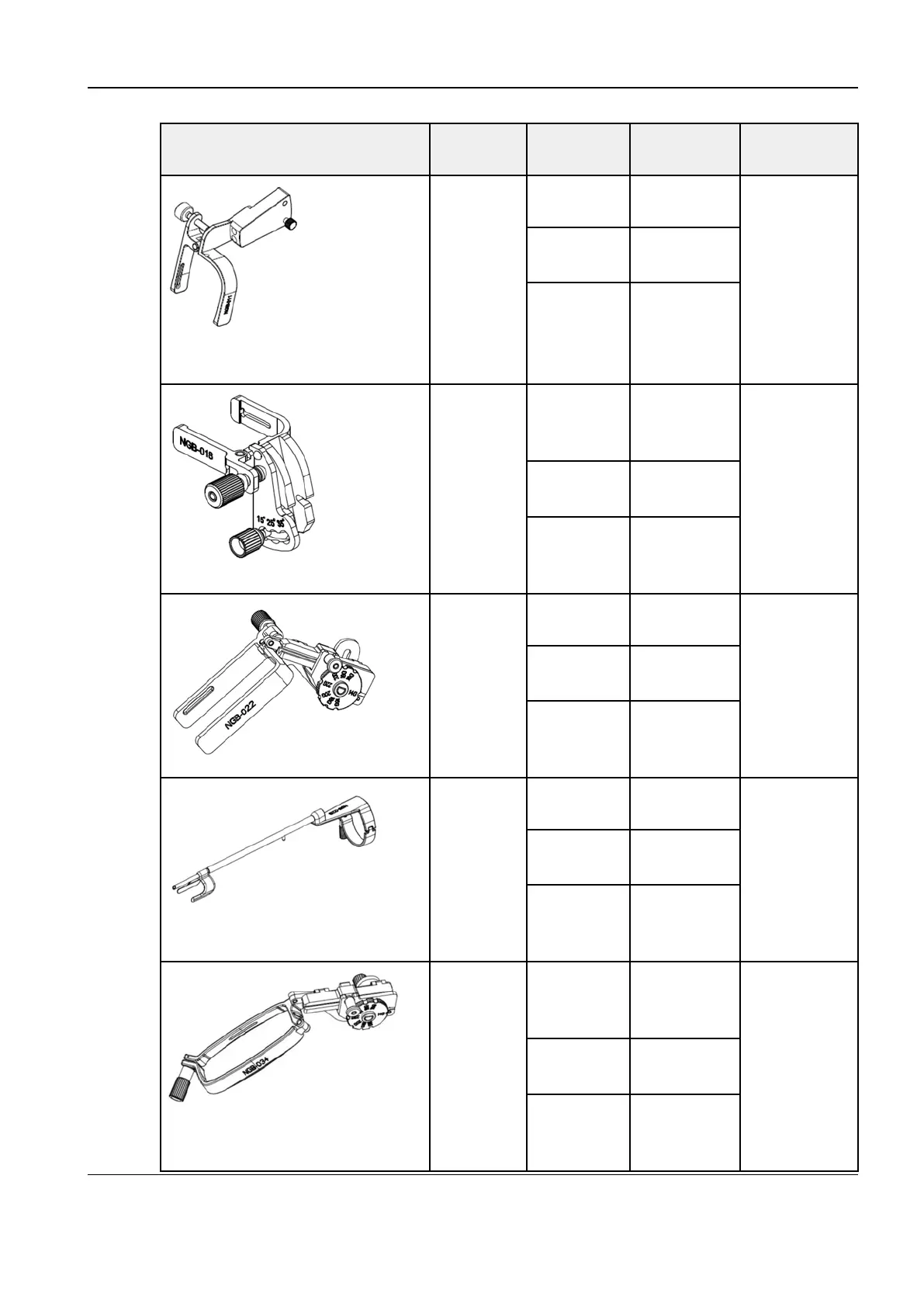

NGB-011

Type Metal-needle

detachable

Biopsy

angle/depth

11° and 23°

Applicable

Biopsy

Needle

13G, 15G,

16G, 18G,

20G, and

22G

NGB-018 Type Metal/needle

undetacha

ble

Biopsy

angle/depth

15°, 25°, and

35°

Applicable

Biopsy

Needle

14G, 16G,

18G, 20G,

and 22G

NGB-022 Type Metal-needle

detachable

Biopsy

angle/depth

25°, 35°, and

45°

Applicable

Biopsy

Needle

14G, 16G,

18G, 20G,

and 22G

NGB-025 Type Metal-needle

detachable

Biopsy

angle/depth

1.6°

Applicable

Biopsy

Needle

16G, 17G,

and 18G

NGB-034 Type Metal/needle

undetacha

ble

Biopsy

angle/depth

40°, 50°, and

60°

Applicable

Biopsy

Needle

14G, 16G,

18G, 20G,

and 22G
