8.11 12-Lead ECG Monitoring (for uMEC12/uMEC15)
8.11.1 Entering the 12-lead ECG Monitoring Screen
1. Refer to 8.3.3 ECG Lead Placements to place the electrodes.
2. In the [ECG Setup] menu, select [Others>>] to enter the [Other Setup Menu].
3. Set [Lead Set] to [12-Lead], and set [ECG Display] to [12-Lead].

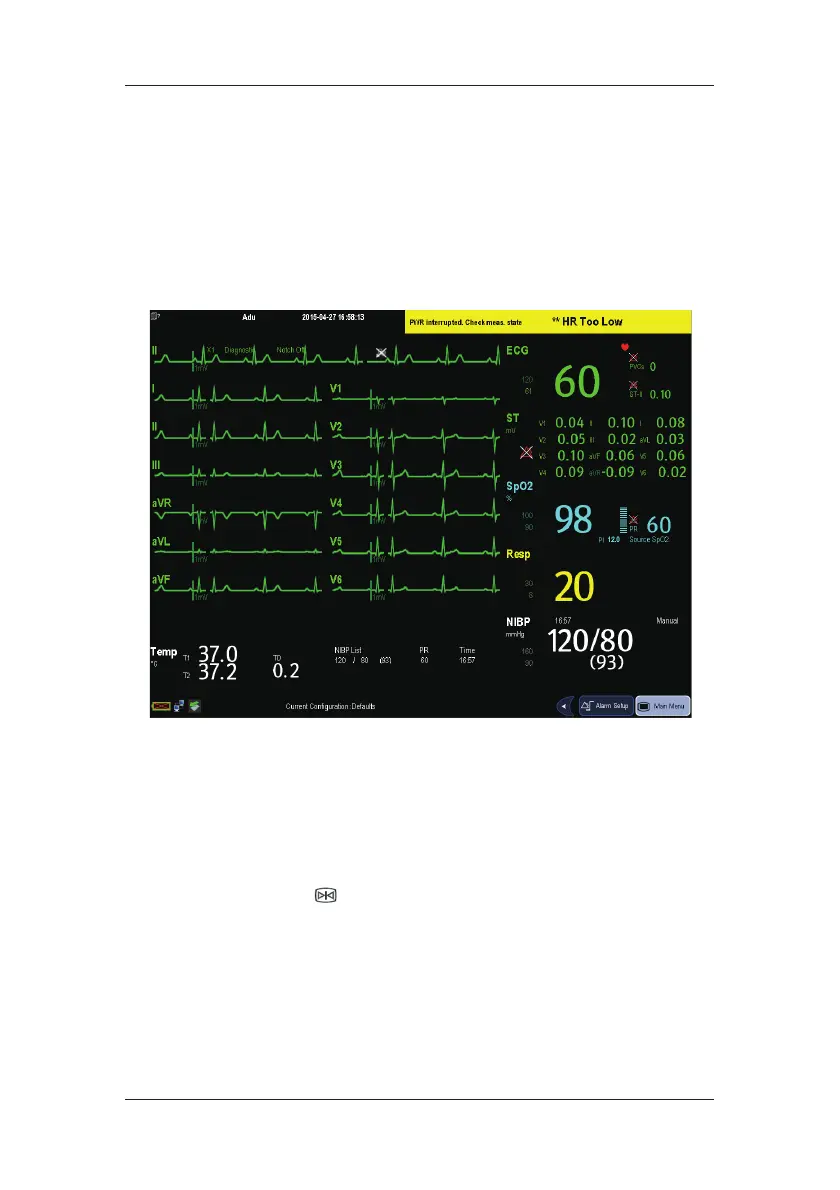

There are a total of 12 ECG waves and 1 rhythm wave displayed on the screen. The rhythm
lead is consistent with what is set for ECG1 before entering the 12-lead ECG screen.
Additionally, the 12-lead ECG monitoring has the following features:
 The [Filter] mode is automatically switched to [Diagnostic] when the patient monitor
accesses the 12-lead full-screen; the [Filter] mode resumes to the configuration before
accessing the 12-lead full screen when the patient monitor exits the 12-lead full screen.
 In the adult mode, the
hardkey on the monitor’s front is disabled.
