3.5 Using the Touchscreen
Select screen items by pressing them directly on the patient monitor’s screen. You can enable
or disable touchscreen operation by pressing and holding the [Main Menu] QuickKey for 3
seconds. A padlock symbol
is displayed if touchscreen operation is disabled.
3.6 Setting the Screen

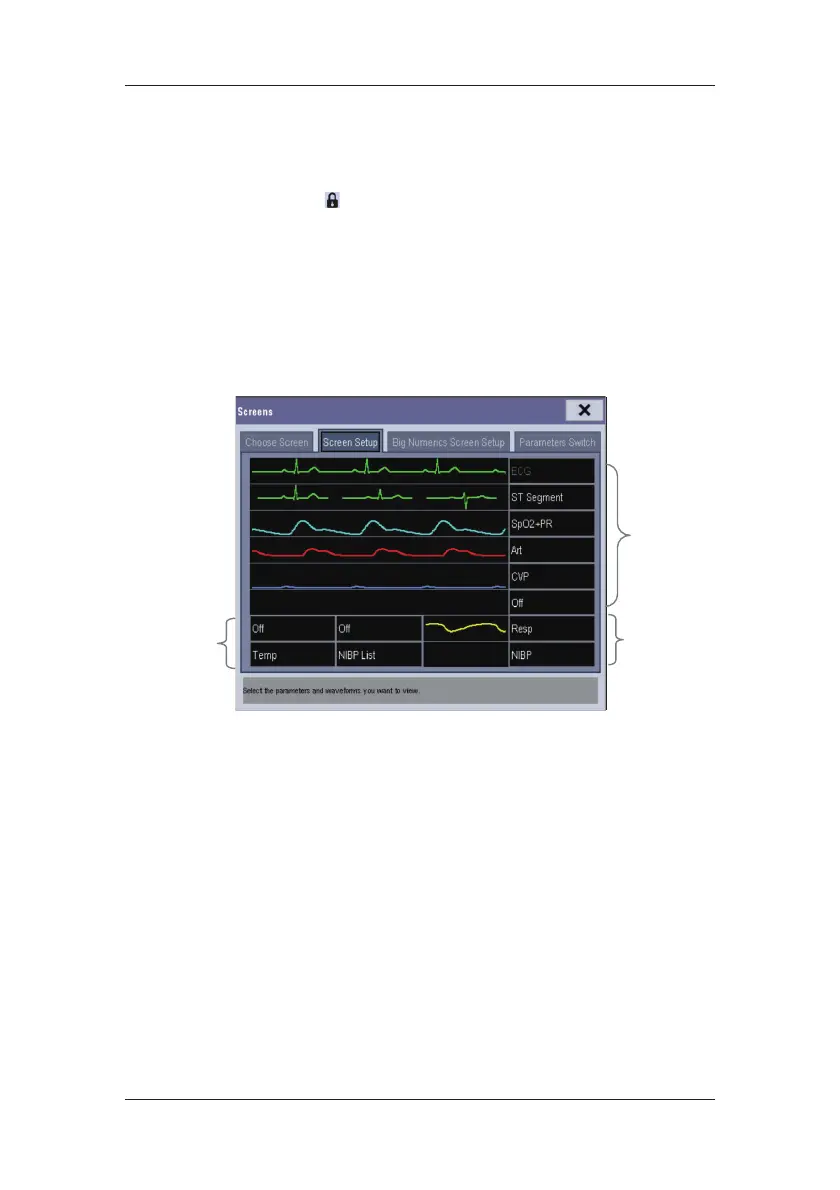

You can enter the [Screen Setup] window as shown below by selecting [Main Menu]ė
[Screen Setup]ė[Screen Layout >>]. In this window, you can allocate the positions of the
parameters and waveforms. The parameters or waveforms whose positions are not allocated
will not be displayed.
The ECG parameter and the first ECG waveform always display in the first row. The
configurable areas can be classified as Area A, Area B, and Area C.
 In Area A, you can choose to display the parameters (having waveforms) and their
waveforms. Each parameter and the associated waveform are displayed in the same row.
 In Area B, you can choose to display the parameters and their waveforms. When there is
no parameter displayed in area C, both the parameters and their waveforms will be
displayed in area B. Otherwise, only the parameters will be displayed.
 In Area C, you can choose to display all the parameters whose associated waveforms
will not be displayed.
The screen can automatically adjust to ensure the best view based on your screen setup.
