Mindray uMEC15 User Manual

2-6
(1) Recorder (2) Slot for CO
2
watertrap
(3) Connector for C.O. cable (4) CO
2
gas outlet
(5) Connector for IBP cable
(6) Power On/Off switch
 Pressing this switch turns the patient monitor on.
 When the monitor is on, pressing and holding this switch turns the monitor off.
(7) Connector for Temp probe (8) Connector for SpO
2
cable
(9) Connector for ECG cable (10) Connector for NIBP cuff

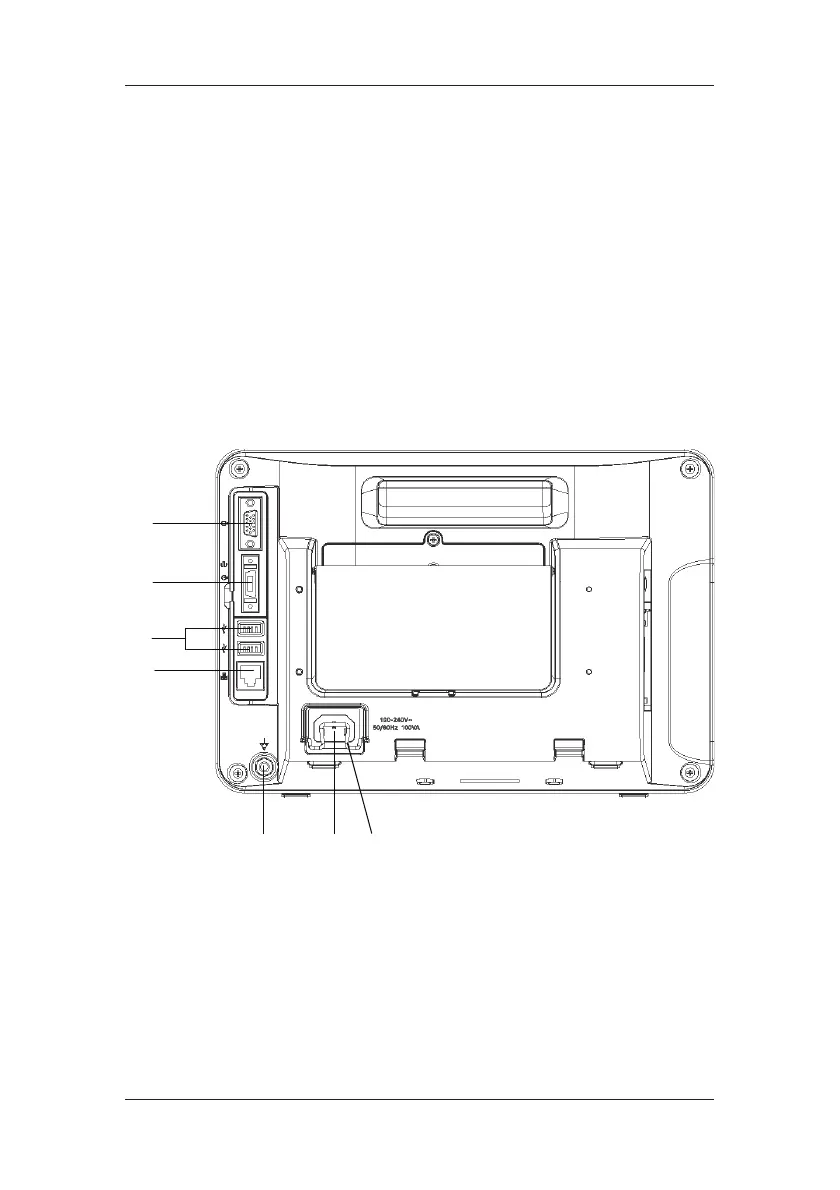

2.4 Rear View
(1) VGA Connector
It connects a secondary display, which extends the display capability of your monitor.
The contents displayed on the secondary display screen accords with those displayed on
the monitor screen.
(2) Multifunctional Connector
It outputs defibrillator synchronization signals, nurse call signals and analogy output
signals.
(1)
(2)
(4)
(5) (6)
(3)
(7)
