16.5 Measuring CO
2
16.5.1 Making a CO
2
Measurement
1. Select the appropriate watertrap and sampling line according to the patient category.
2. Connect the watertrap and sampling line.

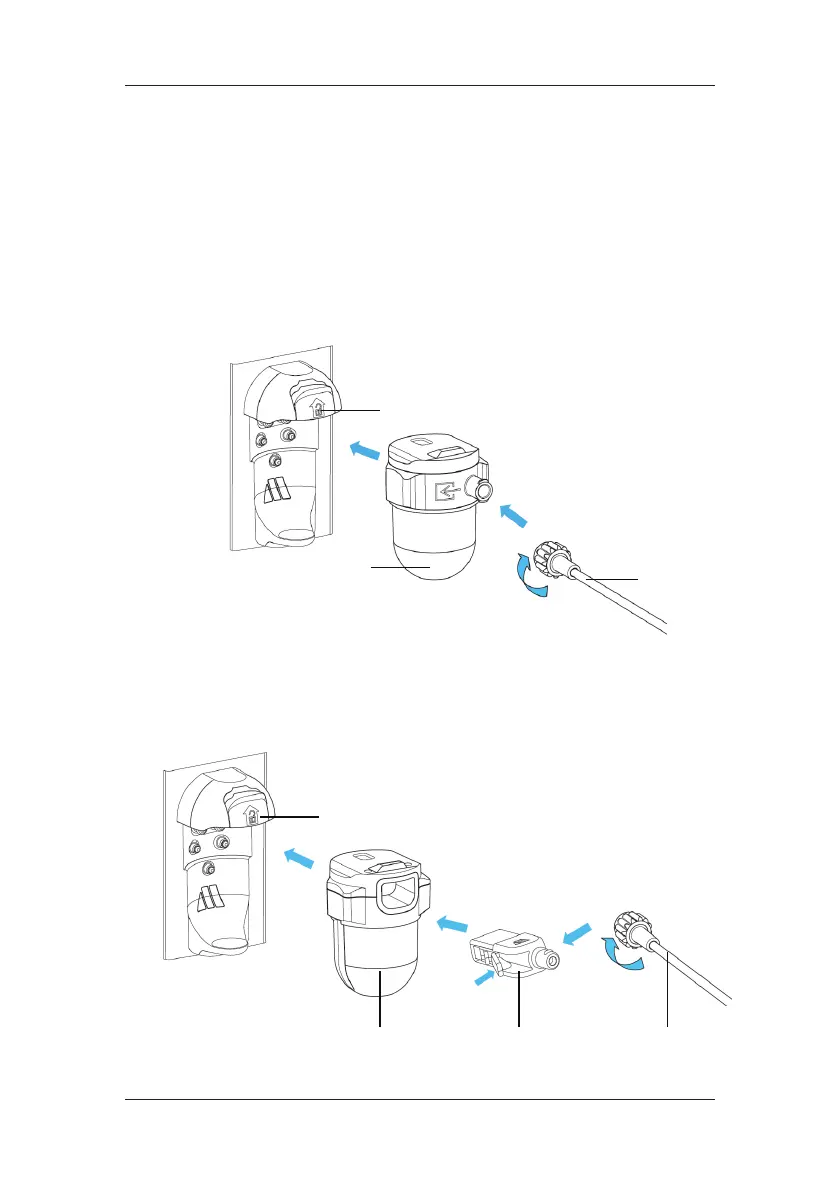

If you use DRYLINE II watertrap (PN: 100-000080-00 or PN: 100-000081-00),
connect the watertrap to the watertrap receptacle, and then connect the sampling
line to the watertrap as shown below.
If you use DRYLINE PRIME watertrap mini, connect the DRYLINE PRIME
receptacle to the watertrap receptacle, connect the DRYLINE PRIME watertrap
mini to the DRYLINE PRIME receptacle adapter, and then connect the DRYLINE
PRIME sampling line to the watertrap mini as shown below.
Watertrap receptacle
DRYLINE II watertrap
Sampling line
DRYLINE PRIME
sampling line
DRYLINE PRIME
receptacle adapter
DRYLINE PRIME
watertrap mini
Watertrap trap receptacle
