18.5 Reviewing Waveforms

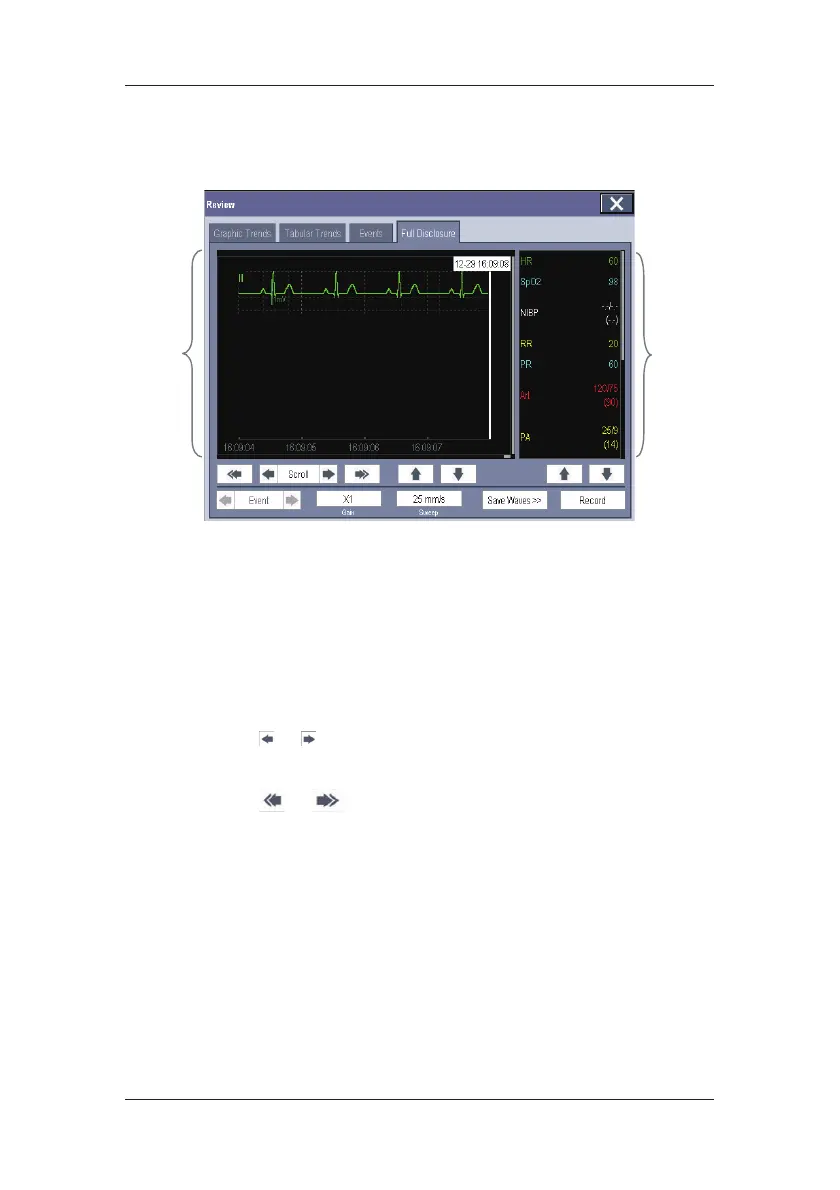

In the [Review] menu, select [Full Disclosure] to access the following window.
(1) Waveform area (2) Parameter area
In this review window:
To review full-disclosure waveforms, you need to save waveforms first. Select [Save
Waves >>] and then select the parameters whose waveforms you want to view. To save
full-disclosure waveform, your monitor must be equipped with a storage card.
To view the waveforms, you can either:
Select
or beside the [Scroll] button to move the cursor one step left or
right to navigate through the waveforms, or
Select
or to move the cursor one page left or right to navigate through
the waveforms.
A time indicating your current position is displayed at the top of the waveform area.
Numeric measurement values corresponding to the cursor location are displayed in the
parameter area, and change as the cursor is moved.
You can change the ECG wave gain by selecting [Gain] and then selecting the
appropriate setting.
You can change the waveform sweep speed by selecting [Sweep] and then selecting the
appropriate setting.
