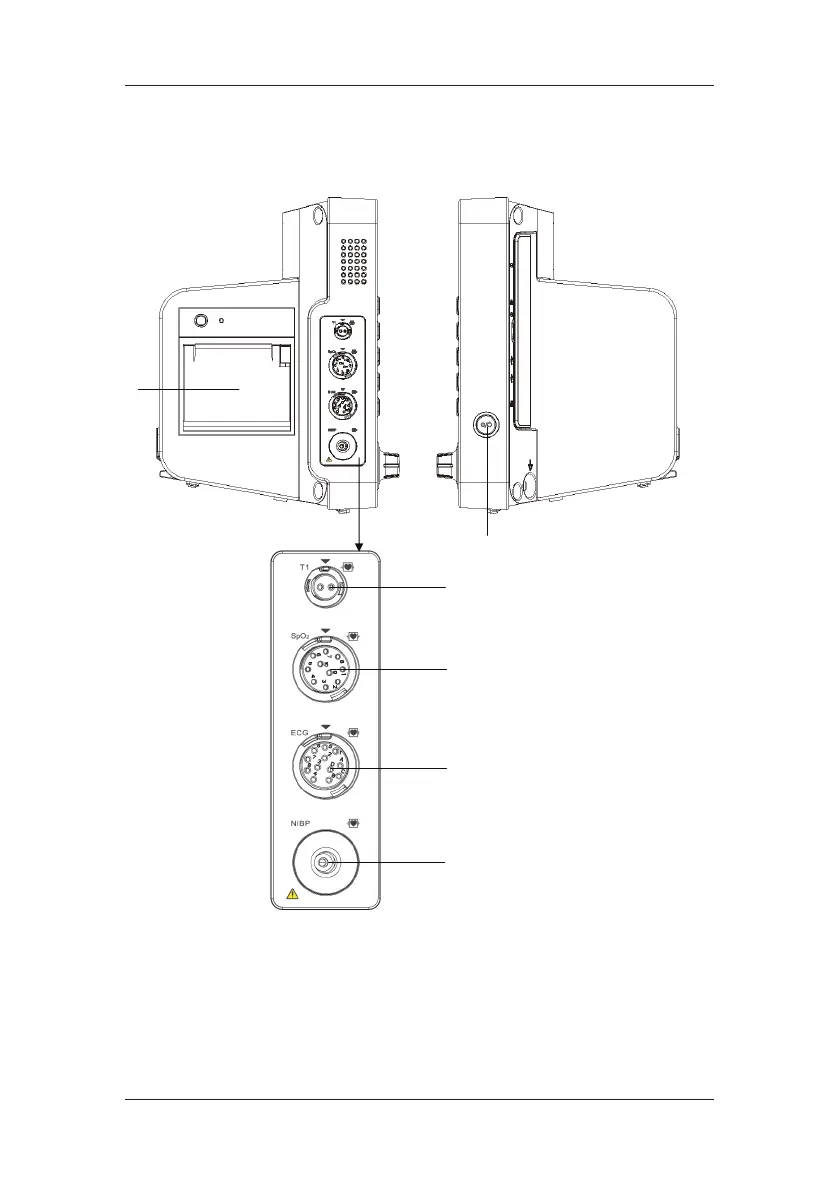

2.3 Side View
2.3.1 uMEC10
(1) Recorder
(2) Power On/Off switch
 Pressing this switch turns the patient monitor on.
 When the monitor is on, pressing and holding this switch turns the monitor off.
(3) Connector for Temp probe (4) Connector for SpO
2
cable
(5) Connector for ECG cable (6) Connector for NIBP cuff
(1)
(3)
(4)
(5)
(2)
(6)
