15-4
temperature. In [Manual] mode, you need to click the [Start] button in the C.O.
measurements window when the monitor is ready for new C.O. measurement.

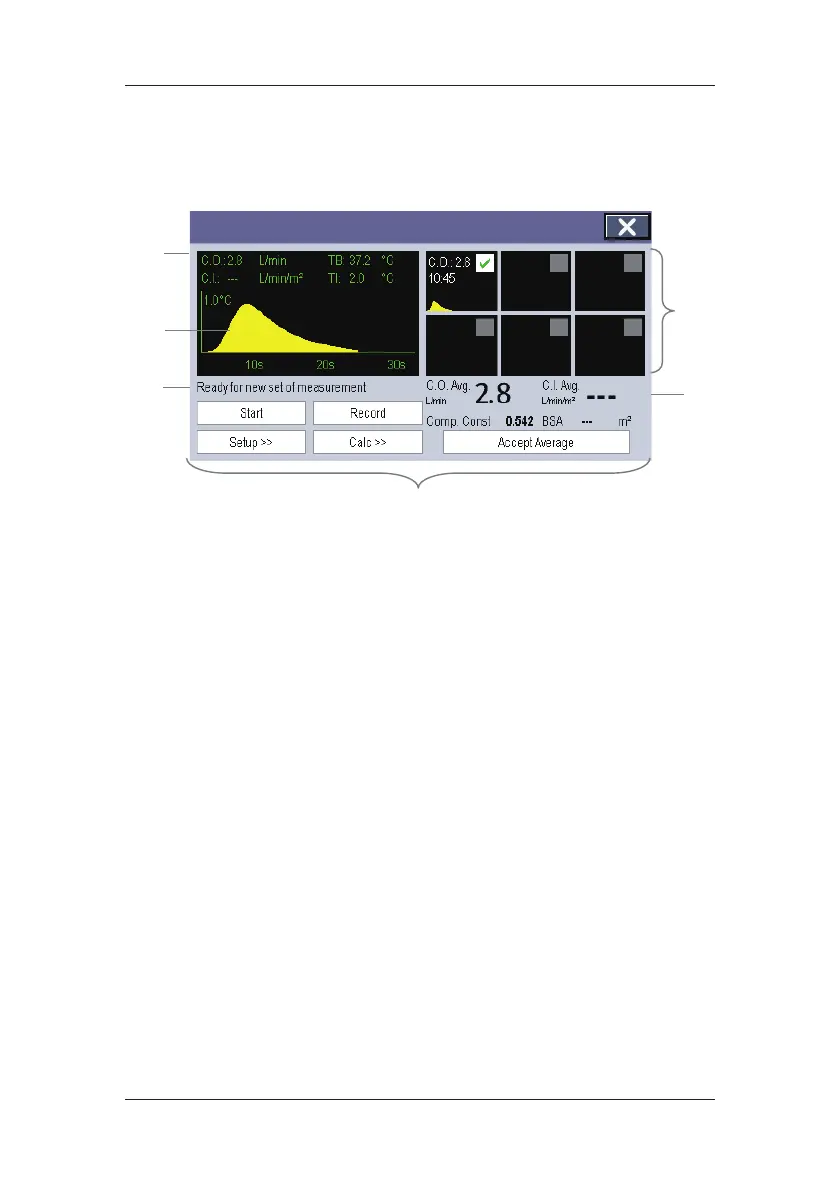

5. Select [Enter C.O. Screen] to enter the C.O. measurements window.
(1) Currently measured numeric
(2) Currently measured C.O. curve
(3) Prompt message area
(4) Buttons
(5) Averaged values
(6) Measurement windows
6. Proceed as follows.
 In [Manual] measure mode, select the [Start] button and then inject the solution
quickly when you see the message [Ready for new set of measurement]. As
shown in the figure above, during the measurement, the currently measured
thermodilution curve is displayed. At the end of the measurement, the
thermodilution curve is transferred to one of the 6 measurement windows and the
monitor prompts you to wait for a certain period of time before starting a new
measurement.
 In [Auto] measure mode, the monitor consecutively takes C.O. measurements
automatically without the need for pressing the [Start] button between two
measurements. A new thermodilution measurement is possible as soon as the
message [Inject now!] is displayed on the screen. The patient monitor
automatically detects further thermodilution measurements.
7. Consecutively take 3 to 5 single measurements as instructed by Step 6.
(1)
(2)
(3)
(4)
(5)
(6)
