MINICAM PROTEUS - Page 153

153
Version L Minicam Proteus

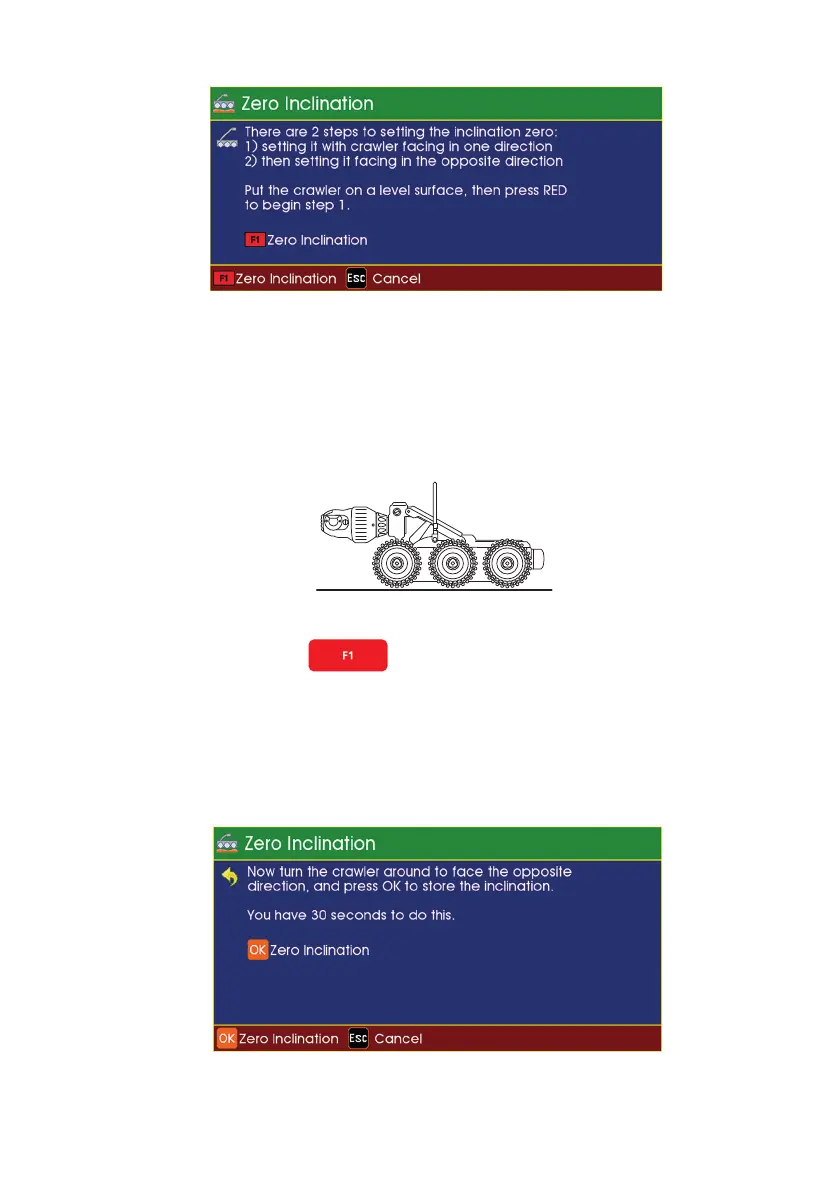

There are two stages to performing the inclination zero calibration.
Stage 1
Place the crawler on a reasonably at level surface (it does not need to be
completely level).
Now press the Red F1 key to perform the rst stage of the cali-
bration, and the CCU then moves on to Stage 2.
Stage 2
The CCU shows:
