2. CNC Monitor Screen
2.5 Program
I - 121

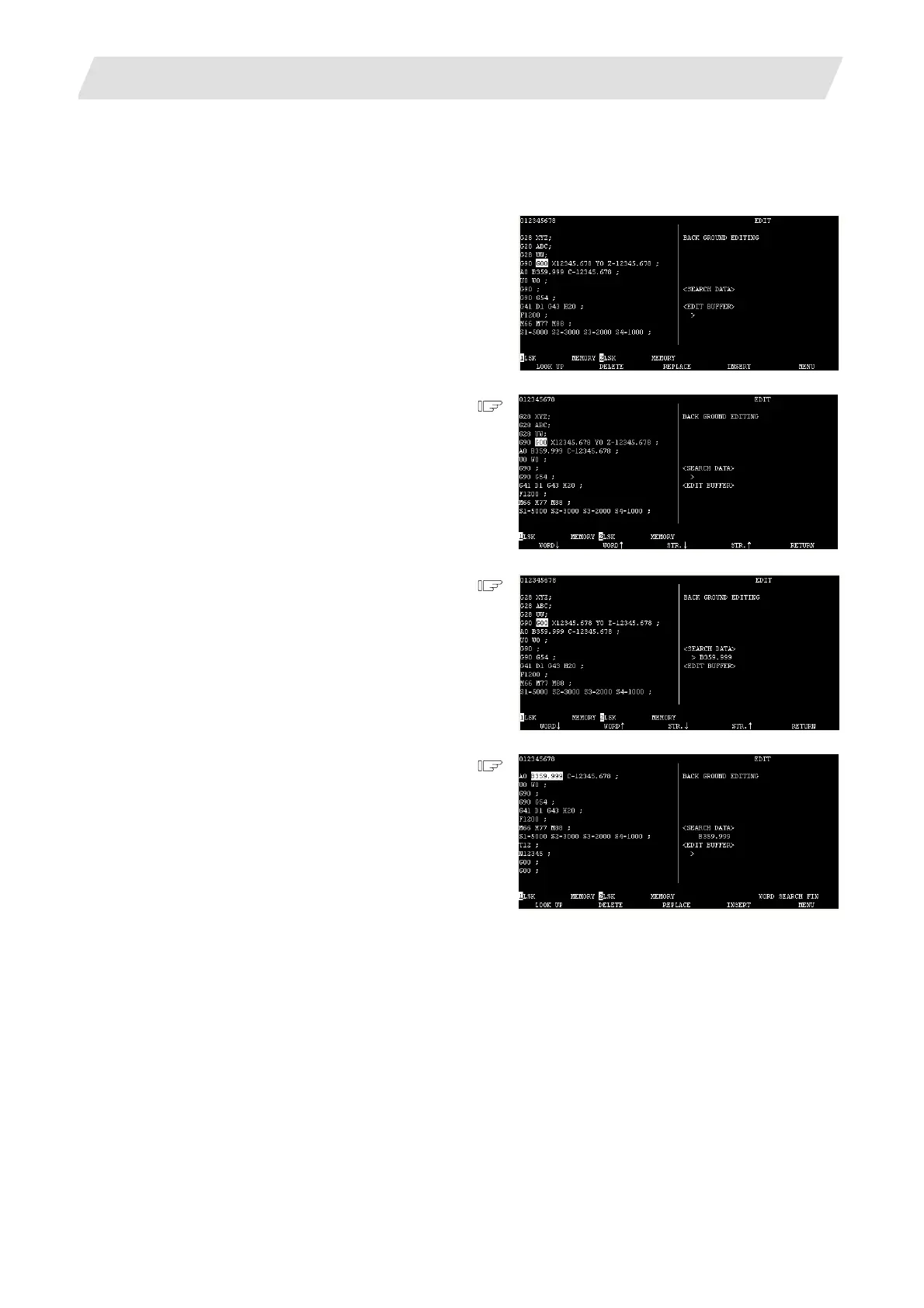

[Word search]
The word matching the search data is searched, and the cursor moves to that word. (The search data is
not cleared.)
Use [WORD↑] and [WORD↓] keys for word
search.
(1) Press the menu [LOOK UP]
The cursor moves to <SEARCH DATA>.
(Edit data will not be cleared.)
Enter the keys for the word data to be
searched.
(Example) B359.99
(2)
Up to 11 characters can be designated for
the search data.
(3) Select upward search or downward search
(Example) [WORD↓]
(a) The message "SEARCH EXECUTION" appears during the search.
(b) The word matching to the search data is searched rather than the word highlighted with the cursor.
(c) The cursor moves to the searched word.
(d) The search data is not cleared.
(e) The screen returns to the 1st menu after the search is completed. (The search data is not cleared.)
(f) The screen returns to the 1st menu if the menu key [RETURN] is pressed.
(Note 1) The message "NO CHARACTERS" appears on the screen if the word cannot be found in the
designated direction. If the same menu key is pressed, the search starts again from the top for
the downward search and from the end of the program for the upward search.
(Note 2) If a word character is entered for the search data after the menu key is pressed, the search
buffer is cleared and then the character is entered.
(Note 3) The search data is valid until ";" (EOB). Only one block can be searched at a time.
(Note 4) The [C.B] and [INS] keys are invalid for the search menu.
To Next Page
