III - 11
3. Display on 7-segment LED
3.3 Examples of LED Display

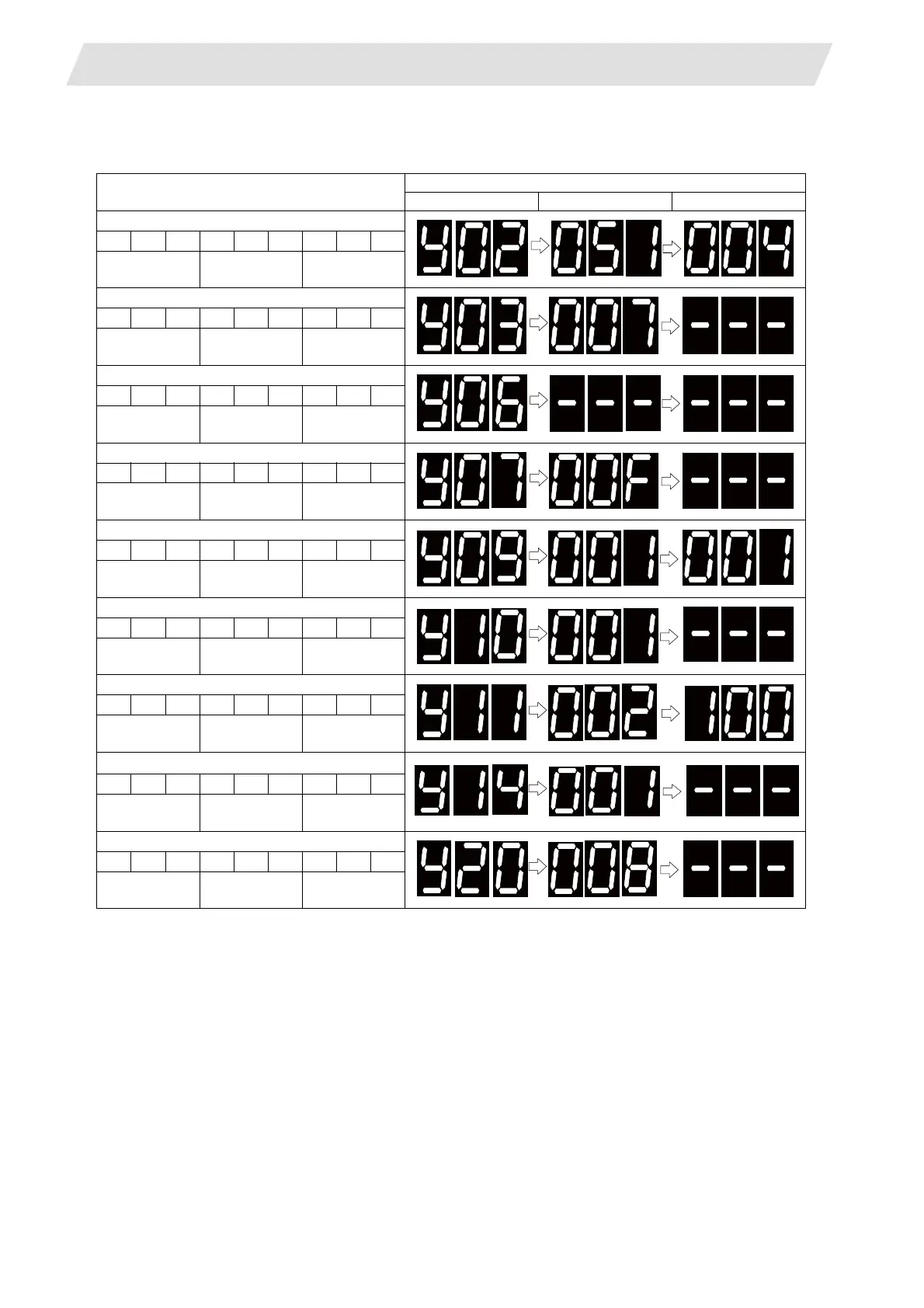

(4) MCP alarm
(Note) Axis Nos. of “Data ID” or “Recv frame No.” error under [Y02 System alarm 0051] are not
displayed in the error display area.
Alarm/warning code
7-segment LED display (Transition)
1L 1C 1R 2L 2C 2R 3L 3C 3R
Y02 SYSTEM ALARM 0051 0004
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Error details
Y03 AMP UNEQUIPPED XYZ
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Axis name Blank
Y06 mcp_no ERROR
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Blank Blank
Y07 Conn Ax Excess 000F
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Blank
Y09 Set Ax No Exces 0001 0001
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Error channel
Y10 Drv SW different X
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Axis name Blank
Y11 Node detect error 8002 0100
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No.
Channel, station
No.
Y14 VIR. AX AMP EQU. X
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Axis name Blank
Y20 Safety OBS ERR 0008
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Blank
