III - 12

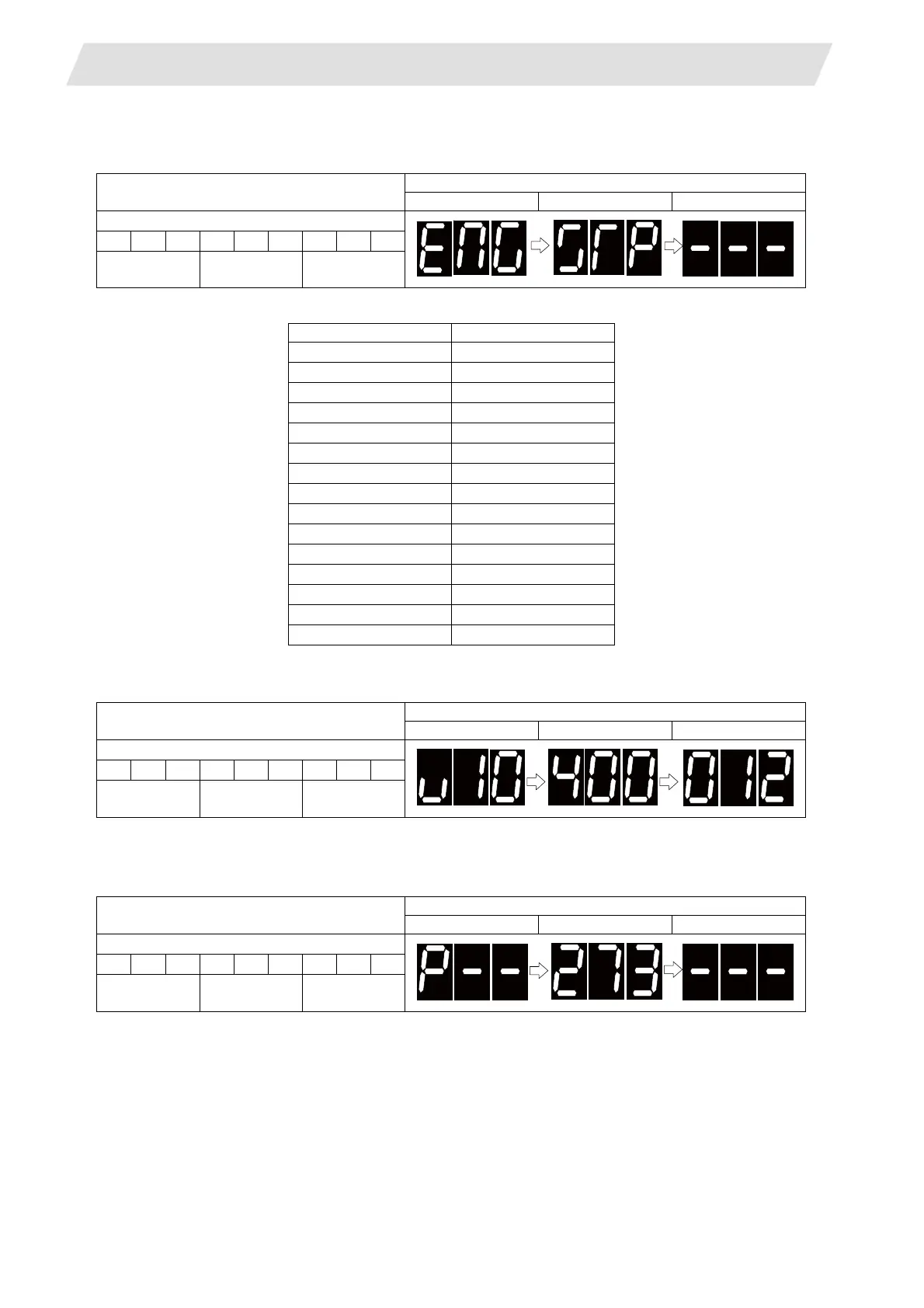

3. Display on 7-segment LED
3.3 Examples of LED Display
(5) Emergency stop
(Note) The following table shows the LED display of emergency stop causes for status 1.
(6) Bulit-in PLC Alarms
(Note) Status 1 and 2 display the last 3 digits.
(7) Program error
Alarm/warning code
7-segment LED display (Transition)
1L 1C 1R 2L 2C 2R 3L 3C 3R
EMG EMERGENCY STOP
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Cause Blank
Emergency stop cause LED display
PLC PLC
SRV SRV
STOP STP
SPIN SPN
DATA DAT
PARA PAR
STP2 SP2
LAD LAD
MULT MLT
IPWD IPD
CVIN CVN
MCT MCT
SUIN SIN
LINK LNK
APLC APL
Alarm/warning code
7-segment LED display (Transition)
1L 1C 1R 2L 2C 2R 3L 3C 3R
U10 Illegal PLC 0400 0012
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Step No.
Alarm/warning code
7-segment LED display (Transition)
1L 1C 1R 2L 2C 2R 3L 3C 3R
P273 MACRO OVERCALL
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Blank
