3. Display on 7-segment LED
3.3 Examples of LED Display

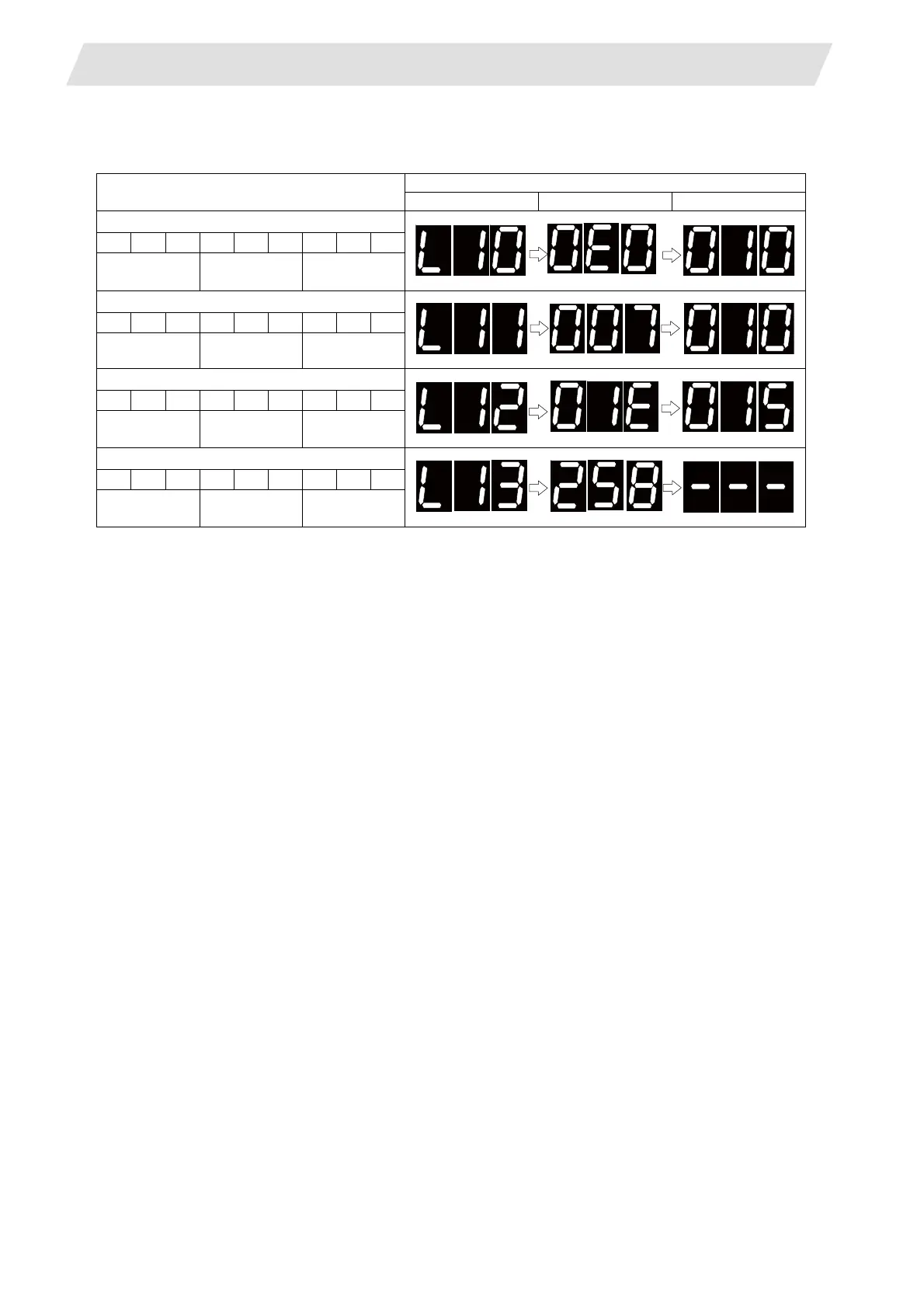

(13) Network Errors
(Note) The slave node No. of [L12 DN LINK ERROR] will be displayed in decimal.
Alarm/warning code
7-segment LED display (Transition)
1L 1C 1R 2L 2C 2R 3L 3C 3R
L10 DN INIT. ERR. 1 00E0 0010
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. I/O No.
L11 DN INIT. ERR. 2 0007 0010
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. I/O No.
L12 DN LINK ERROR 001E 15
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Slave No.
L13 DN MESSAGE ERR. 258
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Blank
