3. Display on 7-segment LED
3.3 Examples of LED Display
(11) Operation error
(Note 1) The alarms with two status, alarm No. and axis name, like [M01 Operation error 1005], "10" will
be displayed as "A".
(Note 2) A 4-digit alarm No., like [M01 Operation error 1106], will be divided into upper 2 digits and
lower 2 digits when displayed.
(12) Stop code
(Note) The factors “In dwell execution” or “unclamp signal wait” under [T10 FIN WAIT] are not
displayed in the error display area.

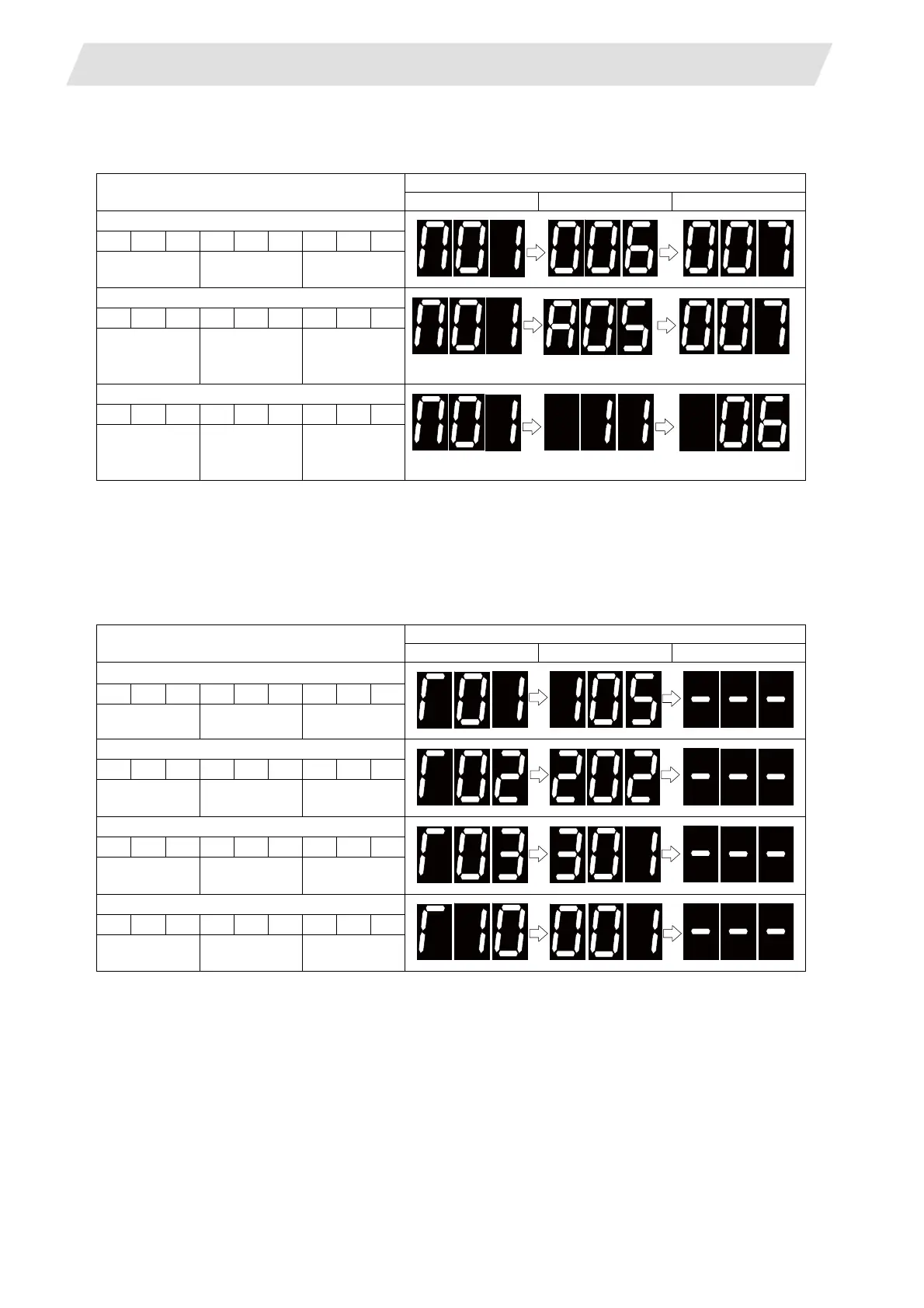

Alarm/warning code
7-segment LED display (Transition)
1L 1C 1R 2L 2C 2R 3L 3C 3R
M01 OPERATION ERROR 0006 XYZ
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Axis name
M01 OPERATION ERROR 1005 XYZ
(Note 1)
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Axis name
M01 OPERATION ERROR 1106
(Note 2)
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type
Alarm No.
Up 2 digits
Alarm No.
Low 2 digits
Alarm/warning code
7-segment LED display (Transition)
1L 1C 1R 2L 2C 2R 3L 3C 3R
T01 CAN’T CYCLE ST 0105
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Blank
T02 FEED HOLD 0202
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Blank
T03 BLOCK STOP 0301
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Blank
T10 FIN WAIT 0001
1L 1C 1R 2L 2C 2R 3L 3C 3R
Alarm type Alarm No. Blank
