III - 68
7. Data Backup
and Restoration
7.2 PLC/CNC CPU Data Ba
ckup and Restoration
（

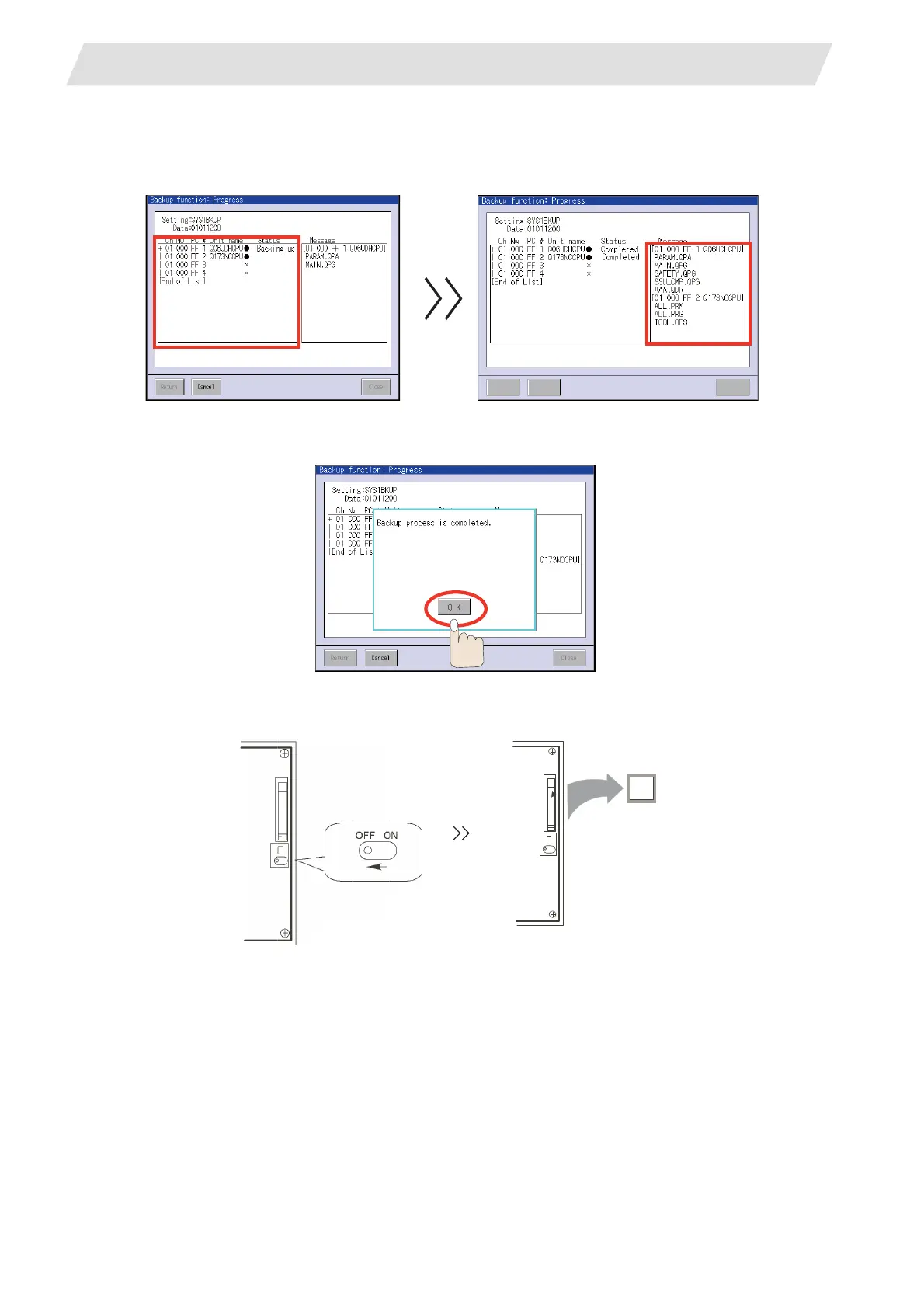

7)
CPU modules are selected and displaye
d automatically.
Backup files are made. The
file names are displayed automatically.
(8)
The completion window
appears. Select "OK".
(9)
Set "OFF" the Compact Flash card acce
ss switch, and then
take out the card.
Return
Return
Cancel
Close
CF card
