2. CNC Monitor Screen
2.3(II) Tool Offset (M system)
(Refer to "2.3 (I). Tool Offset (L system)" for Lathe system)
I - 74
(2) Incremental value setting
Change to the incremental setting mode as follows:
Enter I in # ( ), then press the input key.
# ( I) DATA ( )
#I: INC is displayed in reverse video indicating
that the incremental mode is valid

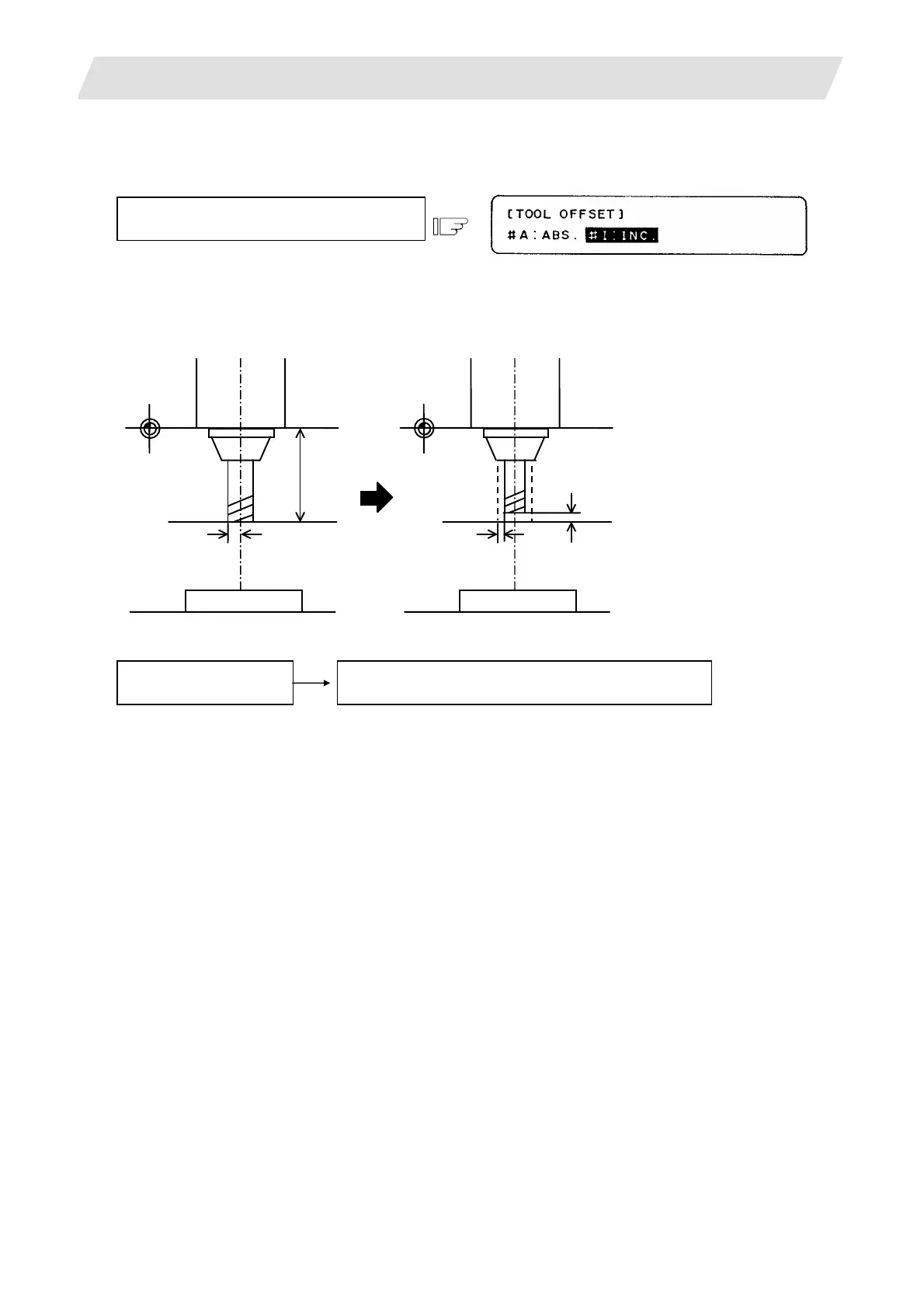

Example of setting tool offset data in incremental mode
Radius comp.
incremental
value setting
Length comp.
40.0
Old
New
Radius comp.
5.0
Length comp.
Incremental
value setting
-3.0
-2.0
(#3 length compensation data)
Display
#3 40.000
Setting
# ( 3) ( -3)
Display
#3 37.000
The mode thus set is retained even after the screen is changed or after power has been turned off.
