FX Series PLC User's Manual - Data Communication Edition
N:N Network
4 Wiring
4.2 Selecting Cables and Terminal Resistors
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter Communication
F
Non-Protocol Communication (RS/RS2 Instruction)
G
Non-Protocol Communication (FX
2N
-232IF)
H
Programming Communication
I
Remote Maintenance
Apx.
Discontinued models

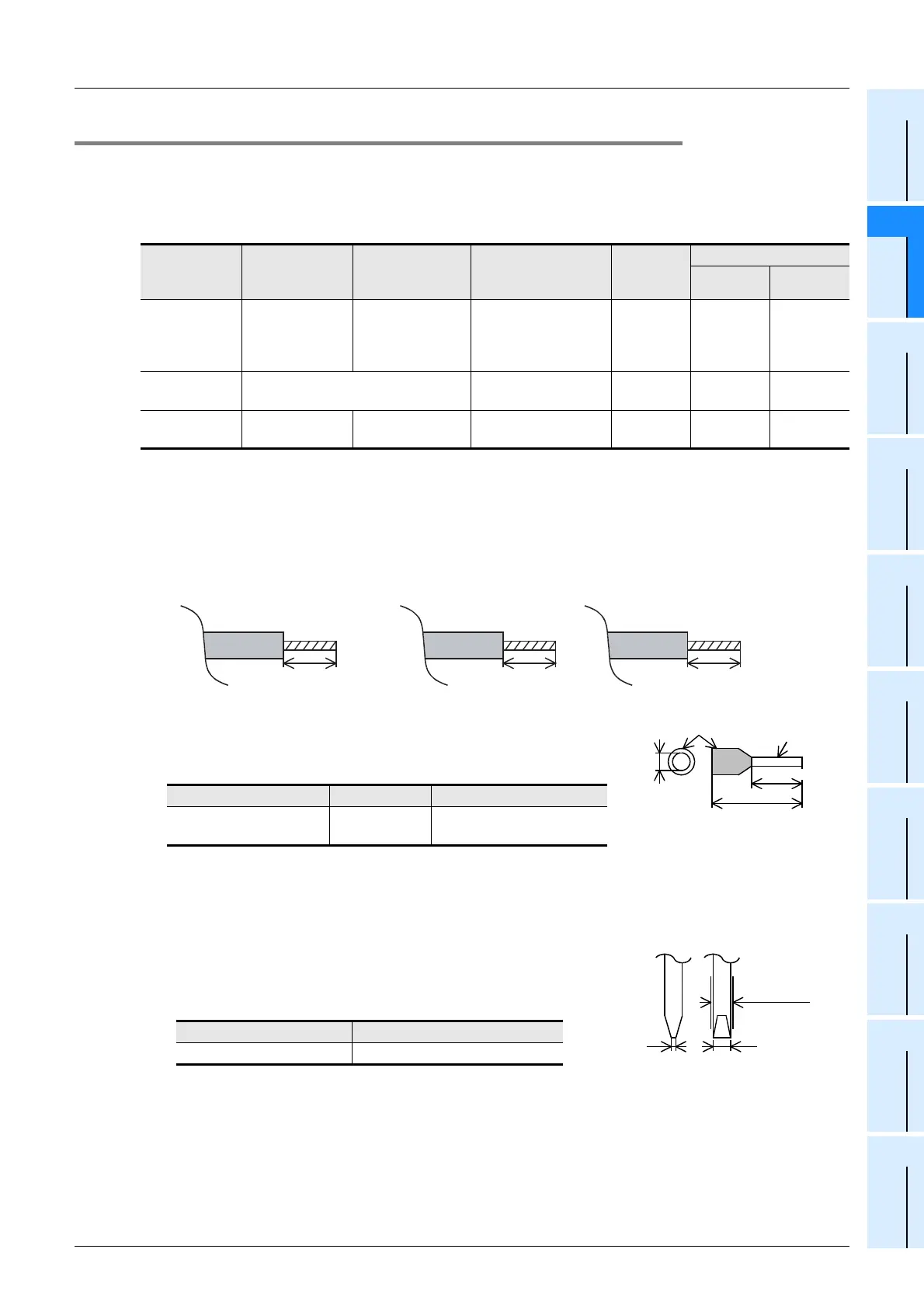

4.2.2 Connecting cables
1. European type terminal block
Use shielded twisted pair cables for connecting communication equipment operating in accordance with RS-
485.
The table below shows applicable cables and tightening torques.
With regard to the cable end treatment, use a stranded cable or solid cable as it is, or use a bar terminal with
insulating sleeve.
• When using a stranded cable or solid cable as it is
- Twist the end of a stranded cable so that wires do not get barbed.
- Do not plate the end of the cable.
• When using a bar terminal with insulating sleeve
Because it is difficult to insert a cable into an insulating sleeve
depending on the thickness of the cable sheath, select the proper cable
according to the outline drawing.
• Tool
- When tightening a terminal on the European terminal block, use a small commercial straight shape
screwdriver whose tip is shown in the figure to the right.
Note:
If the diameter of screwdriver grip is too small, tightening torque will
not be able to be achieved. Use the following recommended
screwdriver or an appropriate replacement (grip diameter:
approximately 25mm).
Cable size when
one cable is
connected
Cable size when
two cables are
connected
Cable size for bar
terminal with
insulating sleeve
Tightening
torque
Tool size
A B
FX
3U-485-BD
FX
3G-485-BD
FX
3U-485ADP
(-MB)
AWG22 to
AWG20
AWG22 AWG22 to AWG20
0.22 to 0.25
N·m
0.4 (0.01") 2.5 (0.09")
FX
2N-485-BD
FX
1N-485-BD
AWG26 to AWG16 — 0.6 N·m 0.6 (0.03") 3.5 (0.14")
FX
2NC-485ADP
AWG26 to
AWG16
AWG26 to
AWG20
—
0.4 to 0.5
N·m
0.6 (0.03") 3.5 (0.14")
Manufacturer Model name Caulking tool
Phoenix Contact AI 0.5-8WH
CRIMPFOX ZA 3
(or CRIMPFOX UD 6)
Manufacturer Model name
Phoenix Contact SZS 0.4 × 2.5
FX3G-485-BD, FX3U-485-BD,
FX
3U-485ADP(-MB)
Approx. 9 mm
(0.35")
FX 1N -485-BD, FX 2N -485-BD
Approx. 6 mm
(0.23")
FX 2NC -485ADP
Approx. 8 mm
(0.31")
8 mm (0.31")
Contact area
(Crimp area)
14 mm
(0.55")
2.6 mm
(0.1")
Insulating sleeve
A B
Select a
screwdriver
with a
straight tip.
For size A and size B,
refer to the table above.
