4.3.3 Connecting terminal resistors
Make sure to provide a terminal resistor at the end of each line.
In the case of one-pair wiring, connect a terminal resistor to the RDA-RDB signal
terminal of the communication equipment.
In the case of two-pair wiring, connect a terminal resistor to the RDA-RDB signal
terminal and SDA-SDB terminal of the communication equipment.

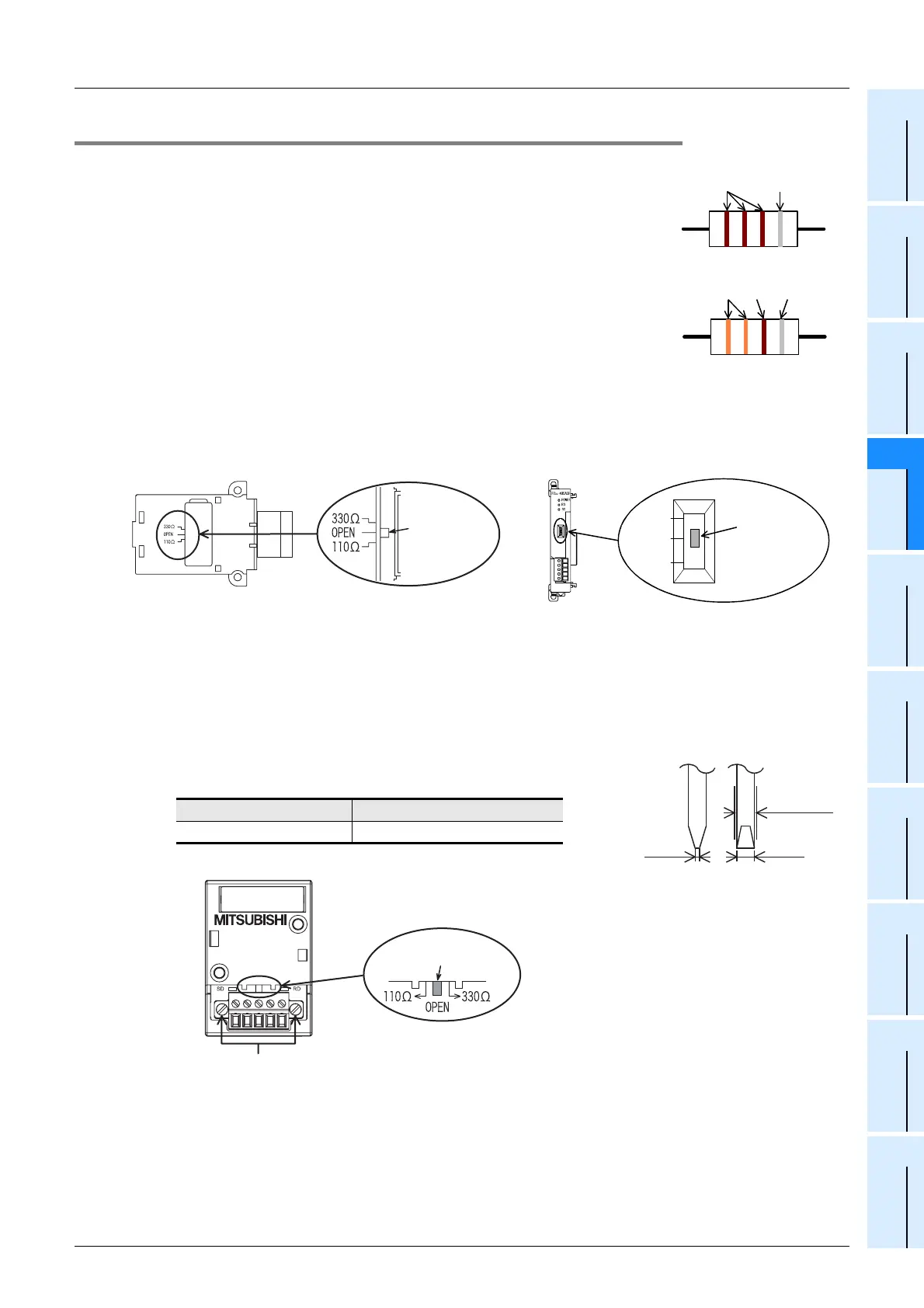

1. Terminal resistor type
In the case of one-pair wiring, use two terminal resistors of 110 Ω, 1/2 W.
In the case of two-pair wiring, use four terminal resistors of 330 Ω, 1/4 W.
Among the terminal resistors supplied with the communication equipment, select
ones with the color codes shown to the right.
2. When using the FX3U-485-BD, FX3G-485-BD or FX3U-485ADP(-MB)
The FX3U-485-BD, FX3G-485-BD and FX3U-485ADP(-MB) have built-in terminal
resistors.
Set the terminal resistor selector switch accordingly.
•FX
3U-485-BD • FX3U-485ADP(-MB)
•FX
3G-485-BD
Remove the upper terminal block before changing over the switch in the FX
3G-485-BD.
Removal: Loosen the terminal block mounting screws, and remove the terminal block.
Installation: Attach the terminal block, and tighten the terminal block mounting screws.
Tightening torque: 0.4 to 0.5 N•m
For installation and removal of the terminal block, use the
recommended tool shown below or a tool having straight tip (such as
screwdriver) as shown in the right figure.
Manufacturer Model name
Phoenix Contact SZF 1-0.6 × 3.5
1 1 1 =110 Ω
Brown
(10
1
)
Precision
3 3 1 =330 Ω
(10
1
)
Orange PrecisionBrown
Terminal
resistor selector
switch
330 Ω
OPEN
110 Ω
Terminal
resistor
selector
switch
(0.02") (0.13")
0.6mm 3.5mm
Select a
straight tip.
with a
screwdrive
r
Terminal block mounting screws
Terminal resistor
selector switch
