Non-Protocol Communication (RS/RS2 Instruction)
5 Communication Setting in FX Programmable Controller
5.3 Communication Setting Using Parameter Method (FXGP/WIN)
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter Communication
F
Non-Protocol Communication (RS/RS2 Instruction)
G
Non-Protocol Communication (FX
2N
-232IF)
H
Programming Communication
I
Remote Maintenance
Apx.
Discontinued models
5.3 Communication Setting Using Parameter Method (FXGP/WIN)
Two software packages, GX Developer and FXGP/WIN for Windows, are available using the parameter
method. This section explains the parameter method using FXGP/WIN.
Ch0, ch2 cannot be set using FXGP/WIN.
5.3.1 Operating procedure
This subsection explains the serial communication setting method. Suppose that FXGP/WIN is already
started up.
1 Displaying serial setting (parameter)

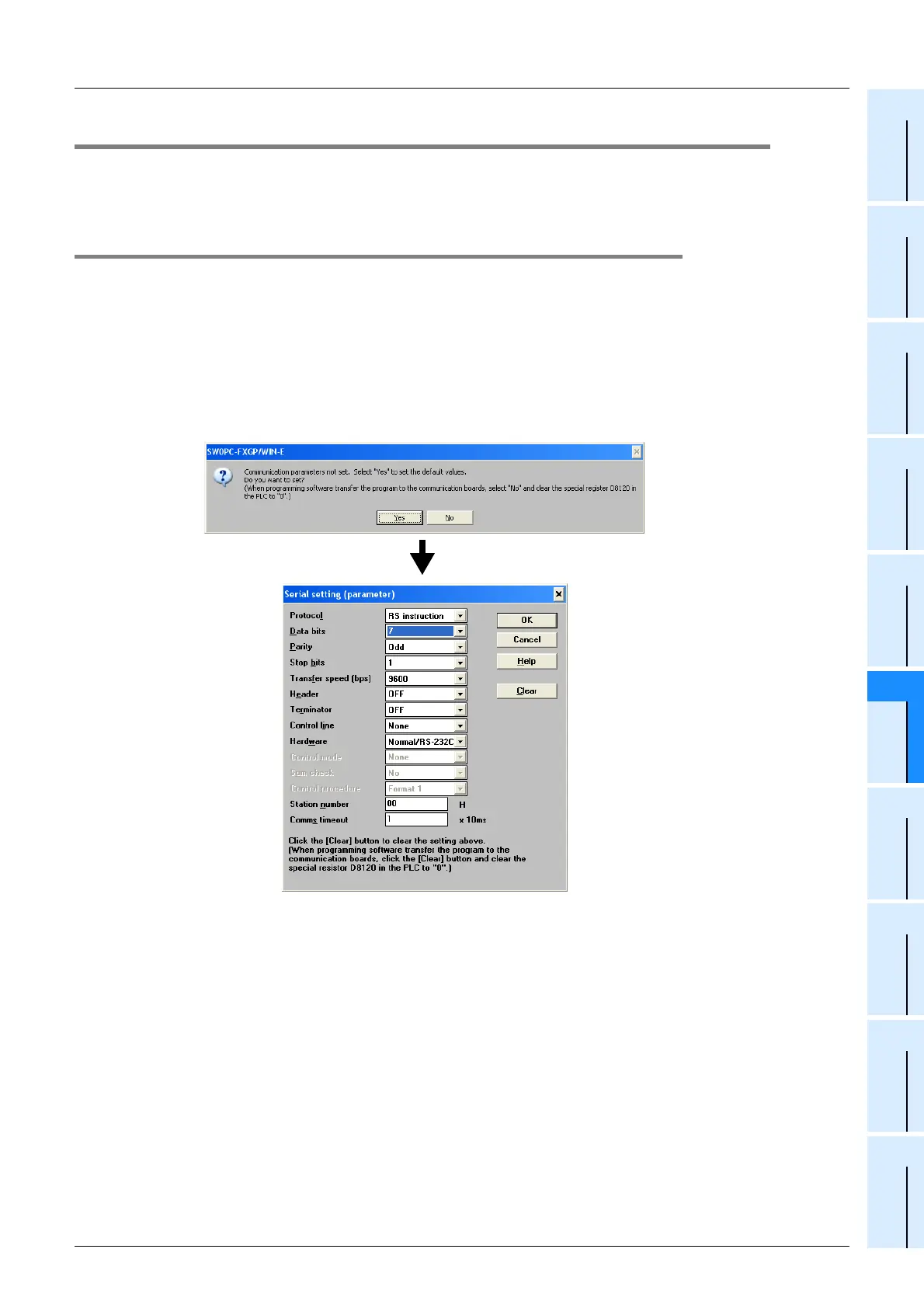

Select [Option] - [Serial setting (parameter)] from the toolbar.
The following dialog box appears according to absence/presence of the parameter settings.
1. When there is no parameter setting
There is no communication setting. Click the [Yes] button.
