F-38
FX Series PLC User's Manual - Data Communication Edition
Non-Protocol Communication (RS/RS2 Instruction)
5 Communication Setting in FX Programmable Controller
5.3 Communication Setting Using Parameter Method (FXGP/WIN)
2. When there are already parameter settings.

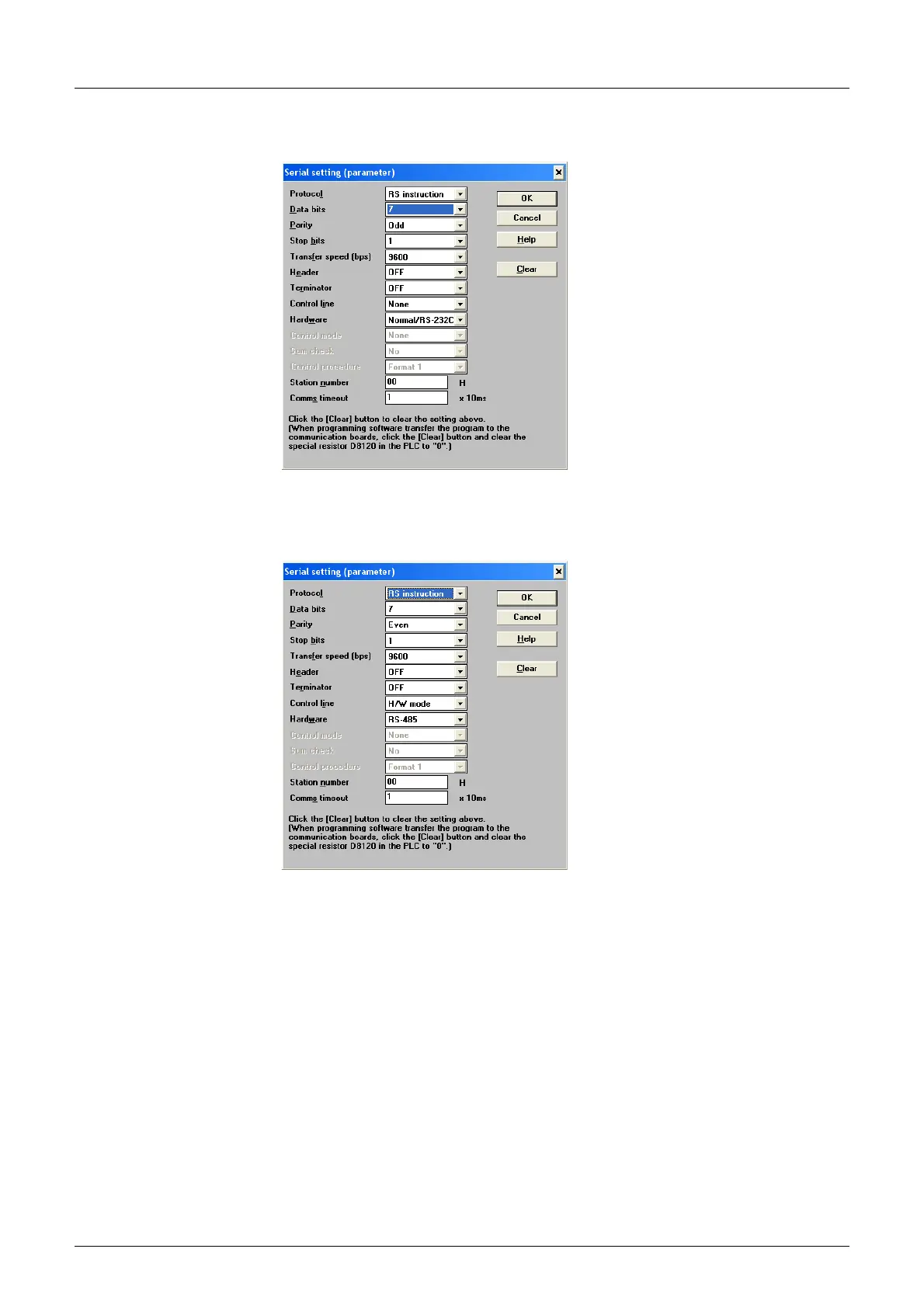

The existing communication setting contents are displayed.
2 Adjusting serial setting (parameter)
Execute the settings according to the connected communication equipment.
Caution
When setting "Hardware" to "RS-485", set "Control line" to "H/W mode".
3 Writing a sequence program (parameters) to the PLC
Select [PLC] - [Transfers] - [Write] from the toolbar, and click [OK].
To Next Page
