H-37
FX Series PLC User's Manual - Data Communication Edition
Programming Communication
6 Connection Setting for Personal Computer
6.1 Connection Setting (GX Developer)
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter
Communication
F
Non-Protocol
Communication
(RS/RS2 Instruction)
G
Non-Protocol
Communication
(FX
2N
-232IF)
H
Programming
Communication
I
Remote
Maintenance
Apx.
Discontinued
models
6.1.1 Setting RS-232C or USB, communication port, and transmission speed
The setting procedures for RS-232C/USB, communication port and transmission speed are described below:

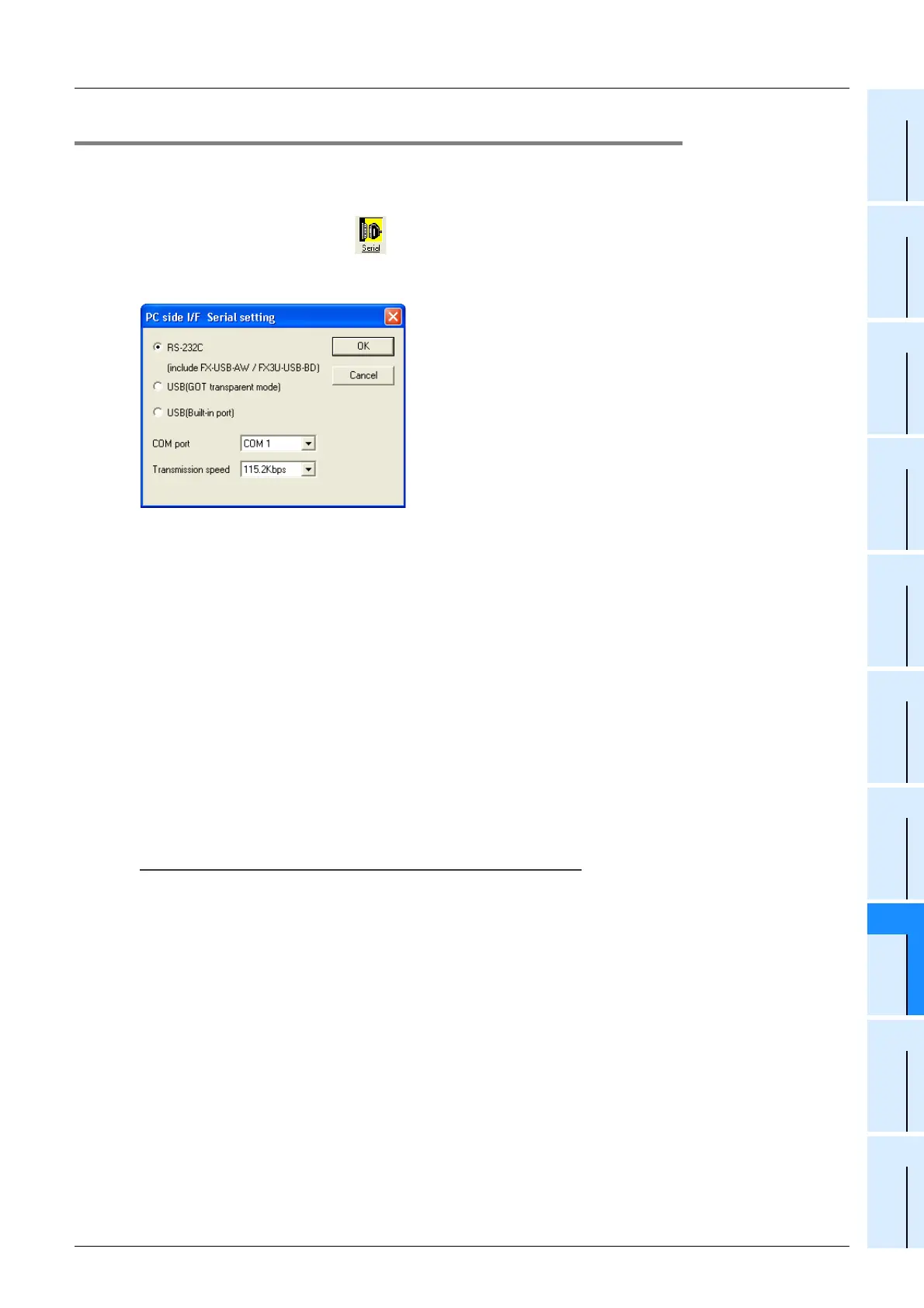

1 Displaying the "PC side I/F Serial setting" window.
Double-click the "Serial" icon on the connection destination specification window. The window
below appears.
Example of the setting window in the FX3G PLC
2 Selecting "RS-232C" or "USB"
1. Connection for selecting "RS-232C (include FX-USB-AW/FX3U-USB-BD)"
Connect the PLC to the RS-232C port in the personal computer.
Connect the PLC to the USB port in the personal computer using the FX-USB-AW or FX
3U
-USB-
BD.
2. Connection for selecting "USB" (GOT transparent function)
Connect the PLC to the USB port in the personal computer using the transparent function at the
USB port in the GOT1000 Series.
3. Connection for selecting "USB" (built-in port) (only in FX
3G)
Connect the standard USB port of the PLC to the USB port of the personal computer.
Caution
For achieving communication using the standard built-in USB port, installation of the USB driver is required.
For the USB driver installation method and procedure, refer to the following manual.
For details, refer to the "GX Developer Operating Manual.".
