FX Series PLC User's Manual - Data Communication Edition
Inverter Communication
5 Communication Setting in Inverter
5.4 V500, F500 and A500 Series (Connection to PU Port)
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter Communication
F
Non-Protocol Communication (RS/RS2 Instruction)
G
Non-Protocol Communication (FX
2N
-232IF)
H
Programming Communication
I
Remote Maintenance
Apx.
Discontinued models

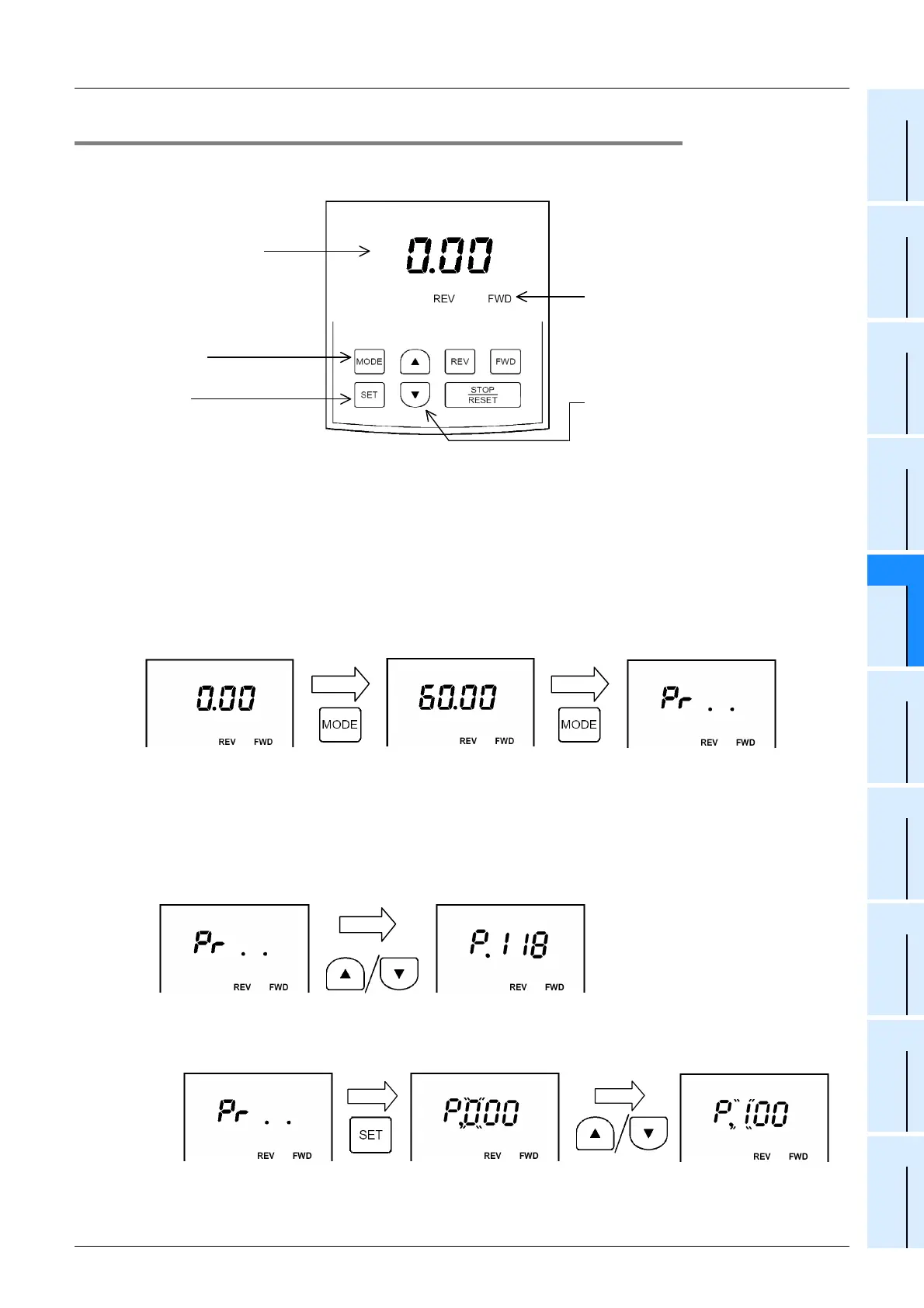

5.4.2 Parameter setting method (reference)
This subsection explains the parameter setting method using the operation panel.
For details on the operation panel, refer to the respective inverter manual.
The operating procedure example below shows a case in which the baud rate is set to 19200 bps.
1 Confirming the RUN indicator and the operation mode indicator
Confirm that the operation is stopped (that both the REV and FWD indicators are Off).
2 Selecting the parameter setting mode
Press the MODE key, and select the parameter setting mode.
*1. The frequency setting mode is displayed only during the PU operation mode.
3 Reading the parameter (Pr. 118)
There are two methods to read the parameter number:
• Method to read the parameter number using the UP and DOWN keys
Press the UP and DOWN keys, and display the parameter number to be read.
• Method to set each digit of the parameter number
a) Press the SET key to flash the most significant digit. Set a numeric value using the UP and DOWN
keys.
Operation status
indication
REV LED flashes during
reverse rotation.
FWD LED flashes during
forward rotation.
UP.down key
Change the set value of
the frequency and
parameters.
Display LED
× 4 digit
Displays the frequency,
parameter number, etc.
Mode key
Changes over the mode.
Set key
Sets each setting.
Monitor mode
Parameter setting mode
Frequency setting mode
*1
