FX Series PLC User's Manual - Data Communication Edition
Programming Communication
6 Connection Setting for Personal Computer
6.2 Connection Setting (FXGP/WIN)
6.2 Connection Setting (FXGP/WIN)
FXGP/WIN, Windows software for personal computers, has the following set items. Set each item according
to the connection status.
• Communication port
• Transmission speed
6.2.1 Setting communication port and transmission speed
The setting procedure for the communication port and transmission speed is described below:

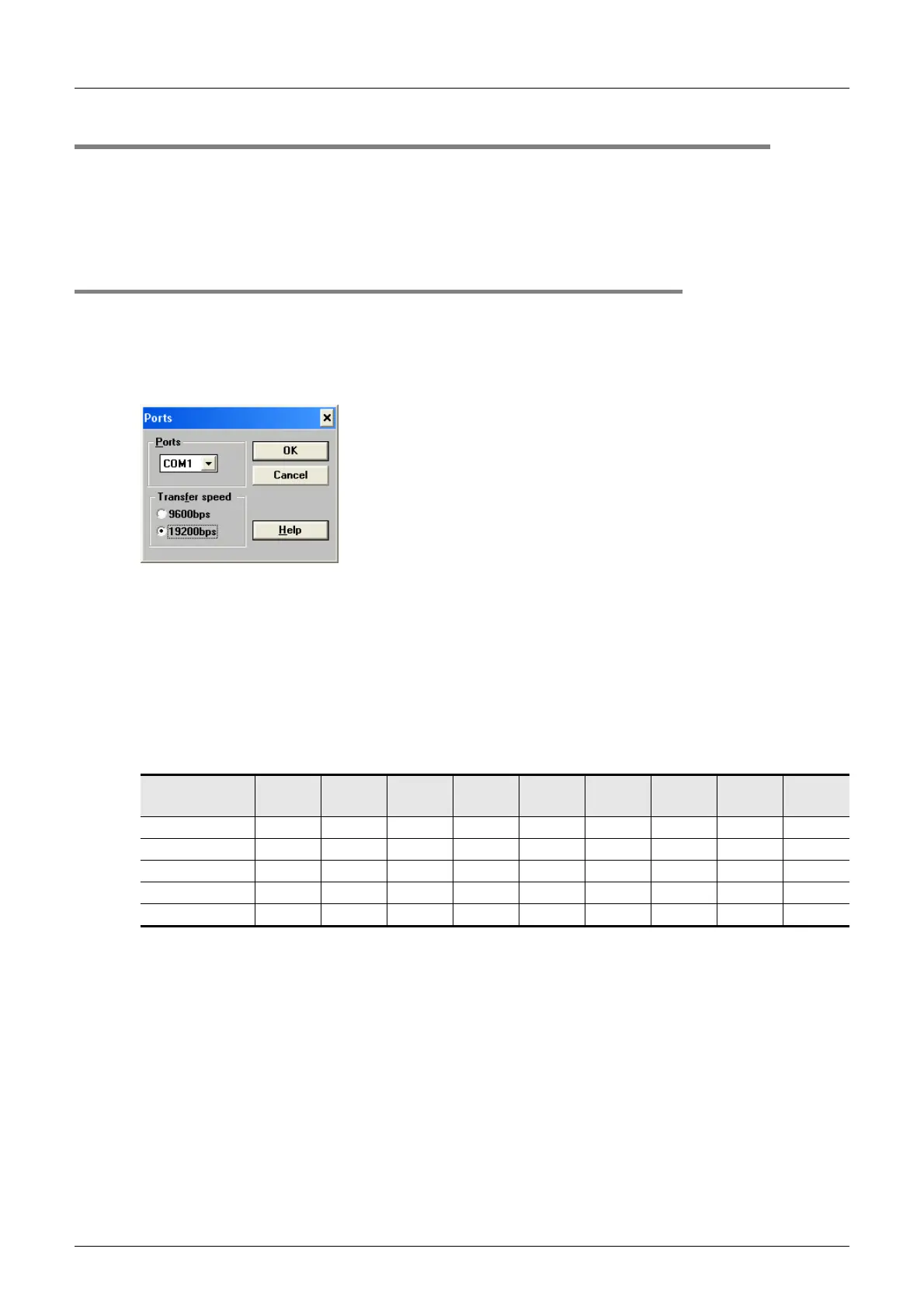

1 Displaying the communication port/transmission speed setting window
Select [PLC] - [Ports] from the toolbar. The window below appears.
2 Setting the communication port and transmission speed
Set these items according to the connection status.
Ports: Select the communication port in the personal computer to be used (among COM1 to
COM9).
Transfer speed:Set the communication speed with the FX PLC.
The applicable transmission speed varies depending on the FX Series. Refer to
the table below.
*1. The FX3G Series cannot be selected. Select the FX1N Series, and then create the program.
*2. The FX
3U/FX3UC Series cannot be selected. Select the FX2N Series, and then create the program.
Communication
speed
FX0,
FX
0S
FX0N FX1
FX2(FX),
FX
2C
FX1S
FX1N,
FX
1NC
FX2N,
FX
2NC
FX3G
*1
FX3U,
FX
3UC
*2
9.6 kbps
19.2 kbps—————
38.4 kbps—————————
57.6 kbps—————————
115.2 kbps—————————
