Mitsubishi FX2N-232-BD User Manual

C-11
FX Series PLC User's Manual - Data Communication Edition
Parallel Link
2 Specifications
2.3 Link Device Numbers and Number of Points
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter Communication
F
Non-Protocol Communication (RS/RS2 Instruction)
G
Non-Protocol Communication (FX
2N
-232IF)
H
Programming Communication
I
Remote Maintenance
Apx.
Discontinued models

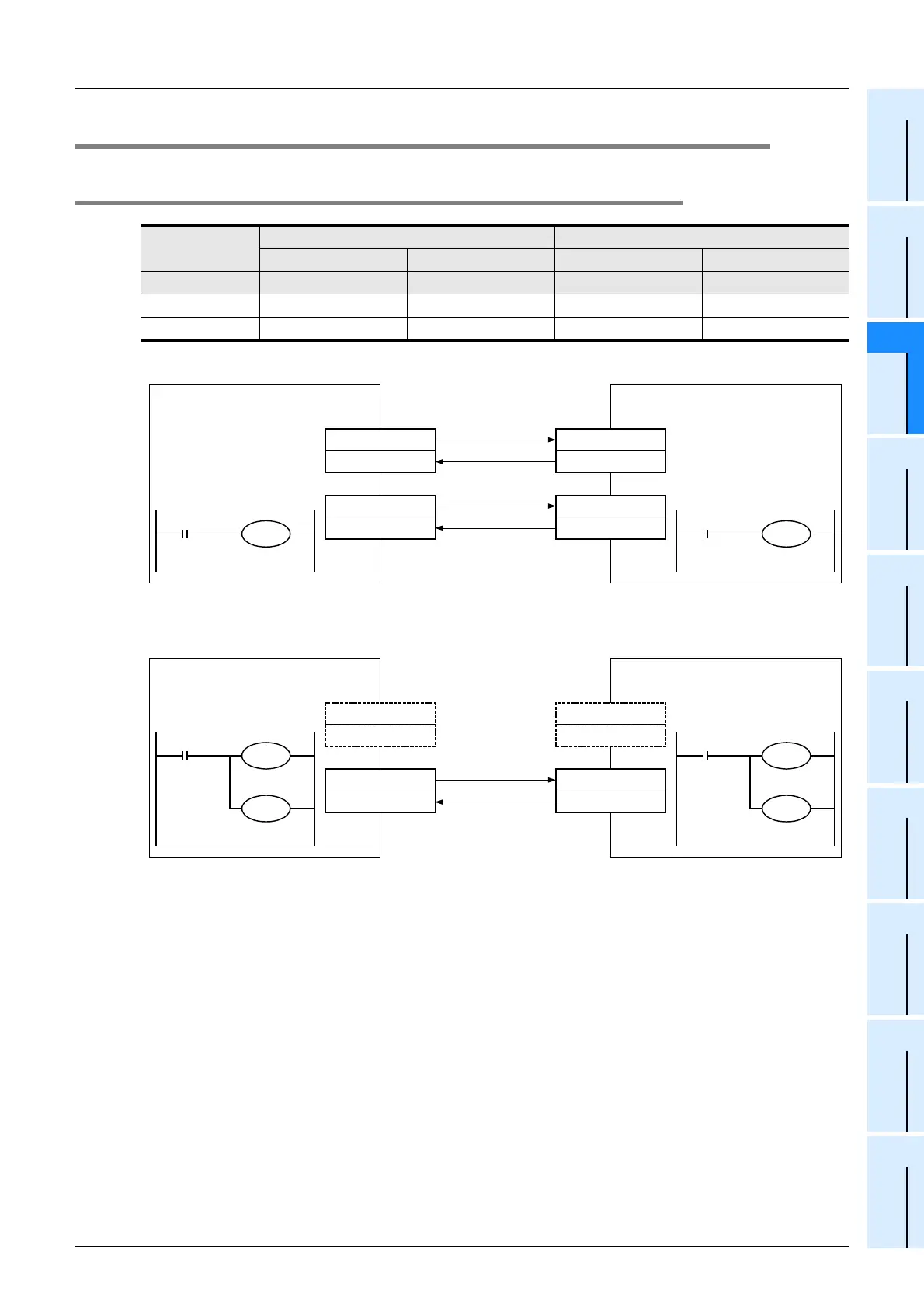

2.3 Link Device Numbers and Number of Points
2.3.1 For FX1S and FX0N Series
1. Regular parallel link mode
2. High speed parallel link mode
Mode
Regular parallel link mode High speed parallel link mode
Bit device (M) Word device (D) Bit device (M) Word device (D)
Type 50 in each station 10 in each station 0 2 in each station
Master station M400 to M449 D230 to D239 — D230, D231
Slave station M450 to M499 D240 to D249 — D240, D241
M400 to M449
M450 to M499
D230 to D239
D240 to D249
M400 to M449
M450 to M499
D230 to D239
D240 to D249
Automatic update
Automatic update
FX 1S , FX 0N FX 1S , FX 0N
M8000
RUN
monitor
M8070
Master station
M8000
RUN
monitor
M8071
Slave station
For the master station, set M8070 to ON. For the slave station, set M8071 to ON.
Automatic update
FX 1S , FX 0N FX 1S , FX 0N
M8000
RUN
monitor
M8070
M8162
Master station
High speed parallel link
mode
M8000
RUN
monitor
M8071
M8162
Slave station
High speed parallel link
mode
−
−
D230, D231
D240, D241
−
−
D230, D231
D240, D241
For the master station, set M8070 and M8162 to ON. For the slave station, set M8071 and M8162 to ON.
