D-32
FX Series PLC User's Manual - Data Communication Edition
Computer Link
4 Wiring
4.3 Selecting Cables and Terminal Resistors (RS-485)

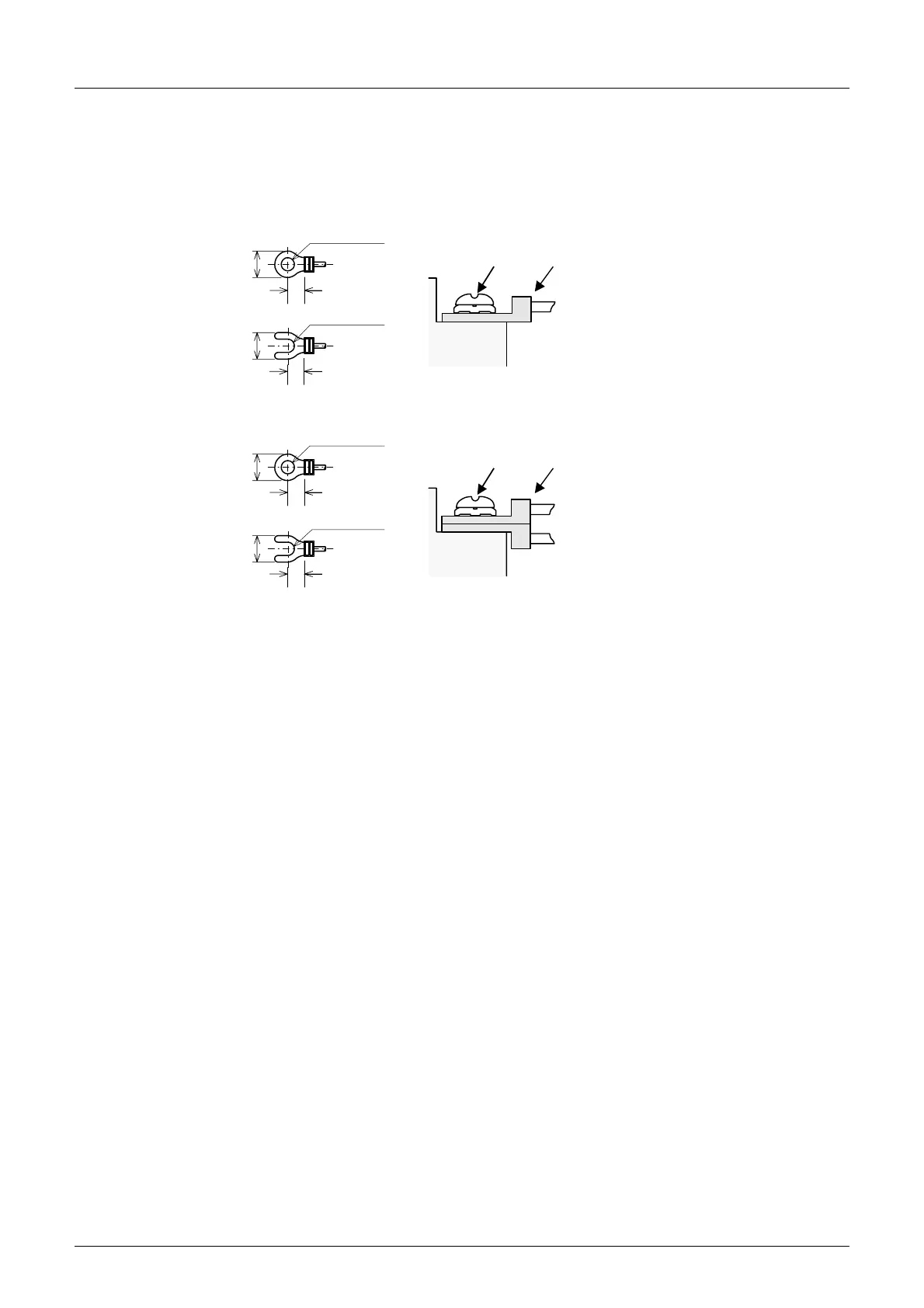

2. Terminal block
In the FX0N-485ADP and FX-485ADP, the terminal screw size is "M3".
Make sure to use a crimp-style terminal with the following sizes.
Make sure that the tightening torque is 0.5 to 0.8 N·m.
• When wiring one cable to one terminal
• When wiring two cables to one terminal
Terminal
Terminal
screw
Crimp-style
terminal
6.2 mm (0.24")
or less
φ
3.2 (0.13")
6.3 mm (0.25")
or more
6.2 mm (0.24")
or less
6.3 mm (0.25")
or more
φ
3.2 (0.13")
6.2 mm (0.24")
or less
φ
3.2 (0.13")
6.3 mm (0.25")
or more
6.2 mm (0.24")
or less
6.3 mm (0.25")
or more
φ
3.2 (0.13")
Terminal
Terminal
screw
Crimp-style
terminal
To Next Page
