Computer Link
5 Communication Setting in FX Programmable Controller
5.3 Communication Settings Using Parameter Method (FXGP/WIN)
A
Common Items
B
N:N Network
C
Parallel Link
D
Computer Link
E
Inverter Communication
F
Non-Protocol Communication (RS/RS2 Instruction)
G
Non-Protocol Communication (FX
2N
-232IF)
H
Programming Communication
I
Remote Maintenance
Apx.
Discontinued models
2. When there are already parameter settings
The existing communication setting contents are displayed.
2 Adjusting serial setting (parameter)

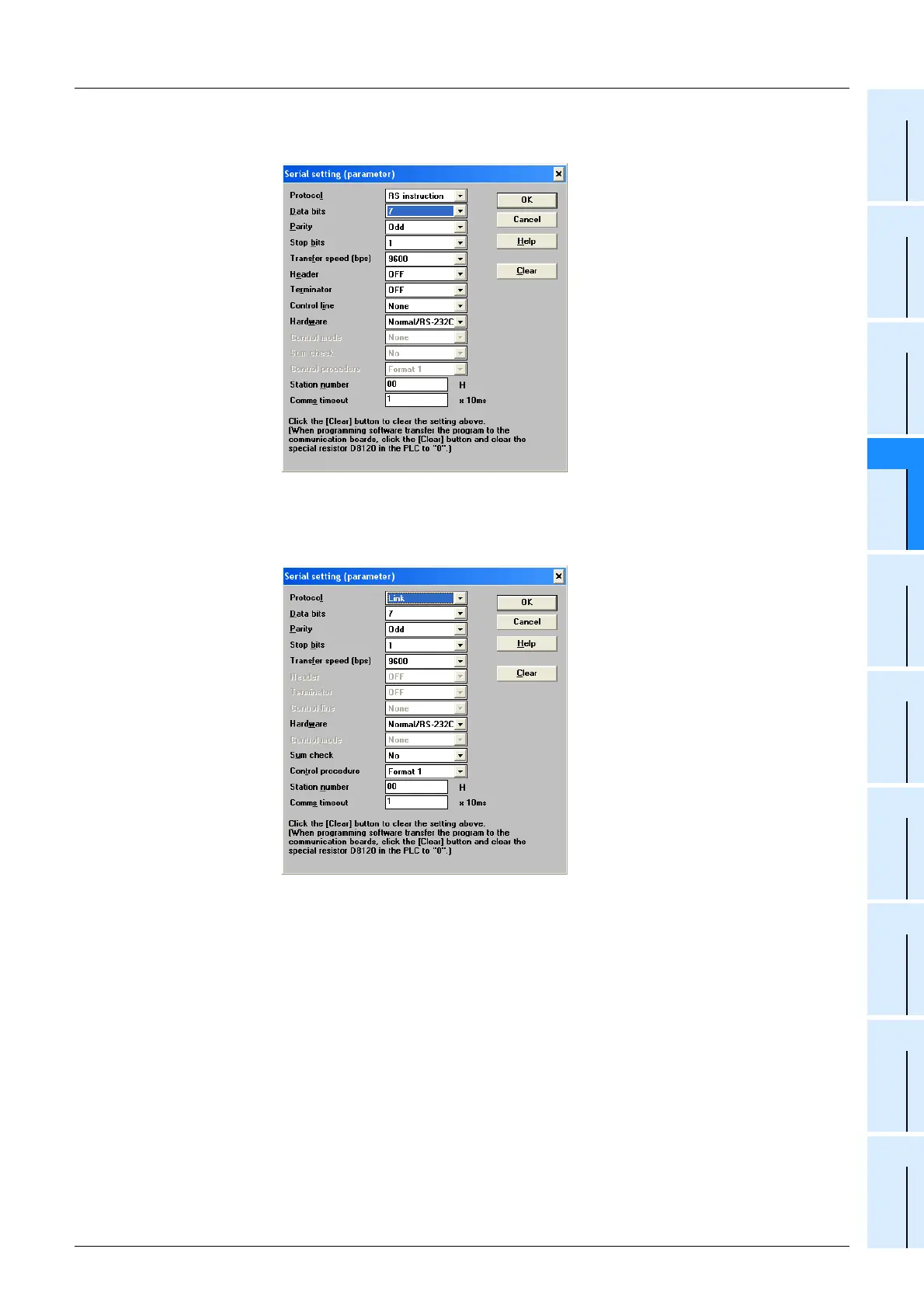

Execute the communication setting as shown below.
Adjust the settings on the personal computer to match those set here.
3 Writing a sequence program (parameters) to the PLC
Select [PLC] - [Transfers] - [Write] from the toolbar, and click [OK].

Mitsubishi FX2N-232-BD Specifications

General

Model	FX2N-232-BD
Communication Protocol	RS-232C
Number of Channels	1
Data Length	7 or 8 bits
Stop Bit	1 or 2 bits
Applicable PLC	FX2N Series
Weight	0.1 kg
Compatibility	FX2N Series PLC
Parity	Even, Odd, or None
Power Supply	5V DC (from PLC)
Current Consumption	60 mA
Type	RS-232C Communication Board
