Mitsubishi FX3U-20SSC-H User Manual

8 Manual Control
8.2 JOG Operation
145
FX3U-20SSC-H Positioning Block User's Manual
1
Introduction
2
System configuration
3
Example Connection
4
Installation
5
Wiring
6
Memory configuration and data
7
Before starting positioning control
8
Manual control
9
Positioning Control
10
Table Operation

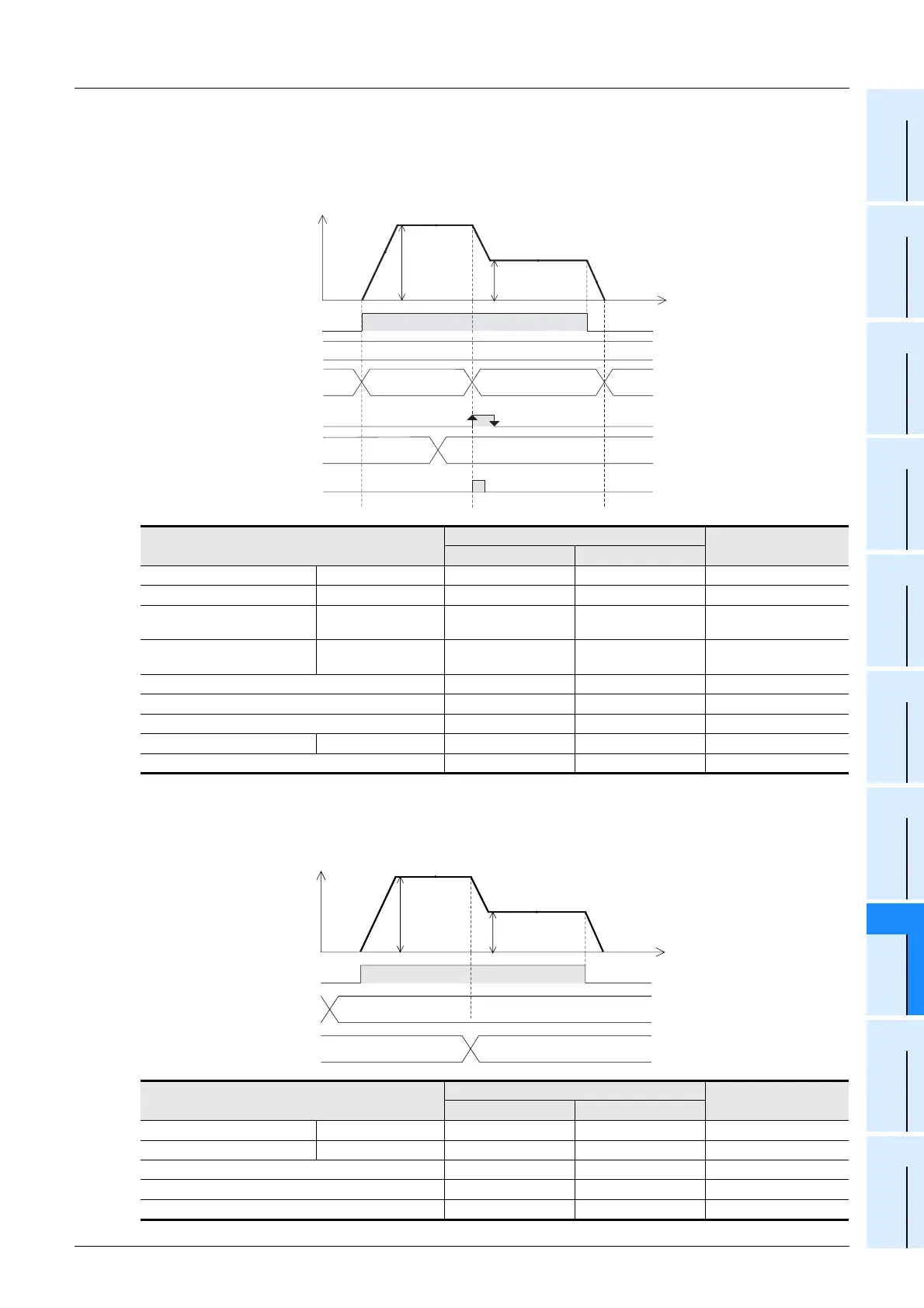

1. Changing the jog speed using the operation speed change function
The system does not accept a change of the operation speed when the change command in operation
disabled is ON.
→ For speed change during operation using the operation speed change function,
refer to Subsection 7.6.2
2. Changing the override setting
Use the override setting to change the ratio of the actual operation speed to the JOG speed.
→ For speed change during operation using the override function, refer to Subsection 7.6.1
BFM Number
Data type
X-axis Y-axis
Forward rotation JOG Operation command 1 BFM #518 b4 BFM #618 b4 Control data
Reverse rotation JOG Operation command 1 BFM #518 b5 BFM #618 b5 Control data
Change command in operation
disabled
Operation command 1 BFM #518 b12 BFM #618 b12 Control data
Speed change command in
positioning operation
Operation command 1 BFM #518 b13 BFM #618 b13 Control data
Speed change value BFM #513,#512 BFM #613,#612 Control data
Operation speed present value BFM #11,#10 BFM #111,#110 Monitor data
Received target speed (Ver.1.20 or later) BFM #27,#26 BFM #127,#126 Monitor data
During operation speed change Status information BFM #28 b13 BFM #128 b13 Monitor data
JOG speed BFM #14013,#14012 BFM #14213,#14212 Positioning parameters
BFM Number
Data type
X-axis Y-axis
Forward rotation JOG Operation command 1 BFM #518 b4 BFM #618 b4 Control data
Reverse rotation JOG Operation command 1 BFM #518 b5 BFM #618 b5 Control data
Override setting BFM #508 BFM #608 Control data
Operation speed present value BFM #11,#10 BFM #111,#110 Monitor data
JOG speed BFM #14013,#14012 BFM #14213,#14212 Positioning parameters
Operation speed
Speed change value
During operation
speed change
Speed change command
in positioning operation
10000Hz0Hz 0Hz
10000Hz
7000Hz
10000Hz
7000Hz
Speed
Time
JOG input
JOG speed (parameter)
ONOFF
ON
OFF
ON
OFF
7000Hz
10000Hz
100% 70%
10000Hz
7000Hz
ON
OFF
Speed
Time
JOG input
JOG speed
Override setting
