9 Positioning Control
9.3 Interrupt 1-speed Constant Quantity Feed
154
FX3U-20SSC-H Positioning Block User's Manual
9.3 Interrupt 1-speed Constant Quantity Feed
The interrupt 1-speed constant quantity feed function is also supported in Ver. 1.10 or later when the ring
operation is set for the current address.
(Refer to Subsection 9.3.2.)
→ For details on the operation speed change and target address change, refer to Section 7.6
→ For details on the torque limit, refer to Subsection 7.9.3
→ For details on the STOP command, refer to Section 7.4
→ For details on the ring counter setting, refer to Section 7.8
→ For details on the table operation, refer to Chapter 10
9.3.1 Interrupt 1-speed Constant Quantity Feed
When the interrupt 1-speed constant quantity feed mode selection (BFM #519/#619 b6) is OFF, the 20SSC-H
positions the motor by the relative movement quantity set in the target address 1 after an interrupt input is
given.
(This function is same as the function available in versions earlier than Ver.1.10.)

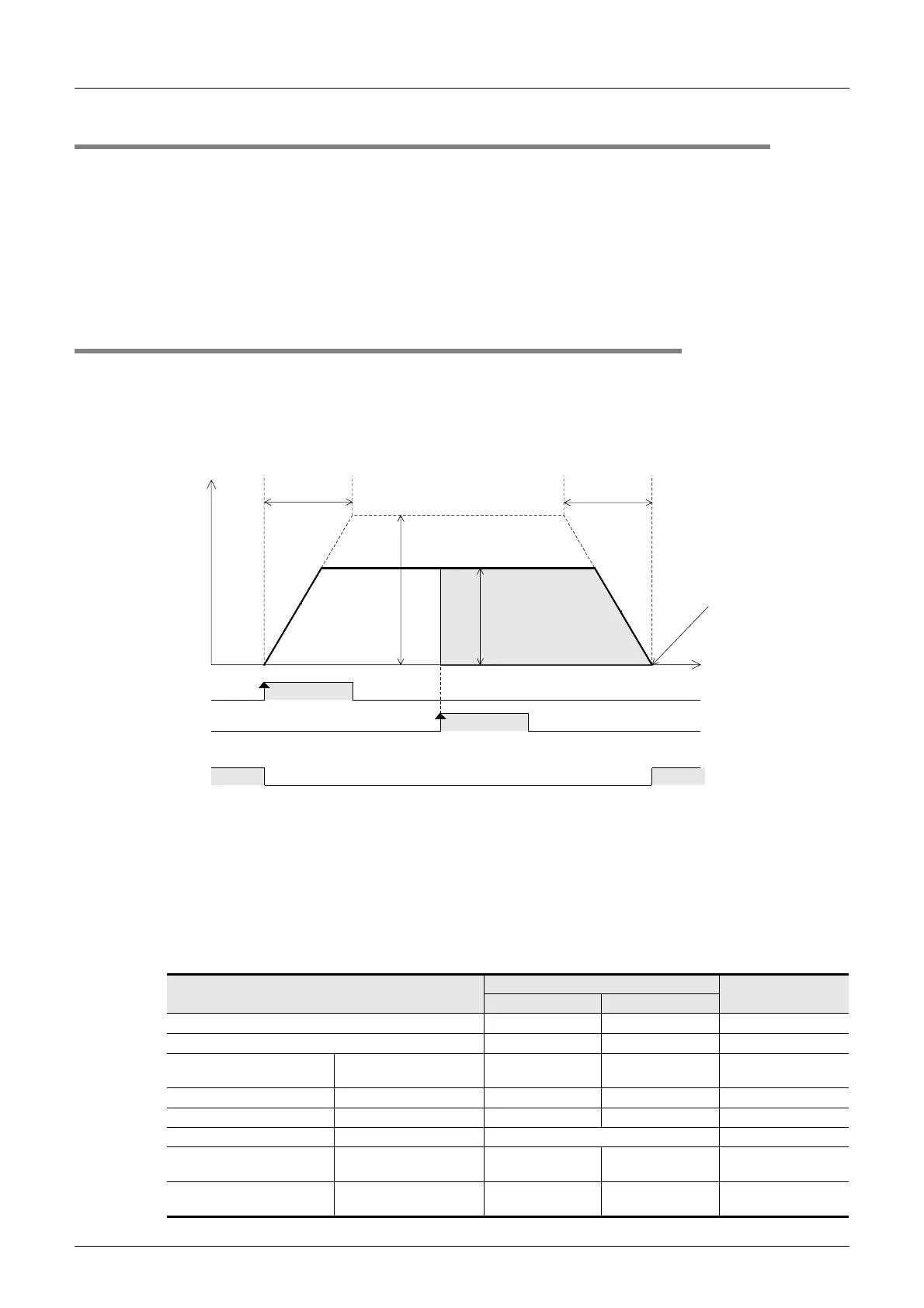

1. Operation
1) Set the operation speed 1 and target address 1 (travel distance after interrupt input).
2) Select the interrupt 1-speed constant quantity feed from the operation patterns and activate the START
command to start the interrupt 1-speed constant quantity feed (above figure).
(The positioning completion signal is turned OFF.)
3) At interrupt input (INT0) ON, the work piece moves at the operation speed 1 to the target address 1,
where the operation ends and the positioning completion signal turns ON.
In a 20SSC-H Ver. 1.30 or later, the current address when an interrupt input (INT0) occurs is stored in the
"current address when an interrupt occurs (INT0)."
→ For the parameters, control data and monitor data, refer to Chapter 11
BFM Number
Data type
X-axis Y-axis
Target address 1 BFM #501,#500 BFM #601,#600 Control data
Operation speed 1 BFM #503,#502 BFM #603,#602 Control data
Interrupt 1-speed constant
quantity feed
Operation pattern selection BFM #520 b1 BFM #620 b1 Control data
STOP command Operation command 1 BFM #518 b1 BFM #618 b1 Control data
START command Operation command 1 BFM #518 b9 BFM #618 b9 Control data
Simultaneous START flag Operation command 1 BFM #518 b10 Control data
Change command in operation
disabled
Operation command 1 BFM #518 b12 BFM #618 b12 Control data
Speed change command in
positioning operation
Operation command 1 BFM #518 b13 BFM #618 b13 Control data
Maximum speed
Operation speed 1
ON
ON
2)
3)
OFF
OFF
Deceleration
time
Time
Acceleration
time
START command
Target address 1
Interrupt input
(INT0)
OFF
ON
Positioning
completion
ON
Speed
Stop at target address 1
(relative address)
