2 System Configuration

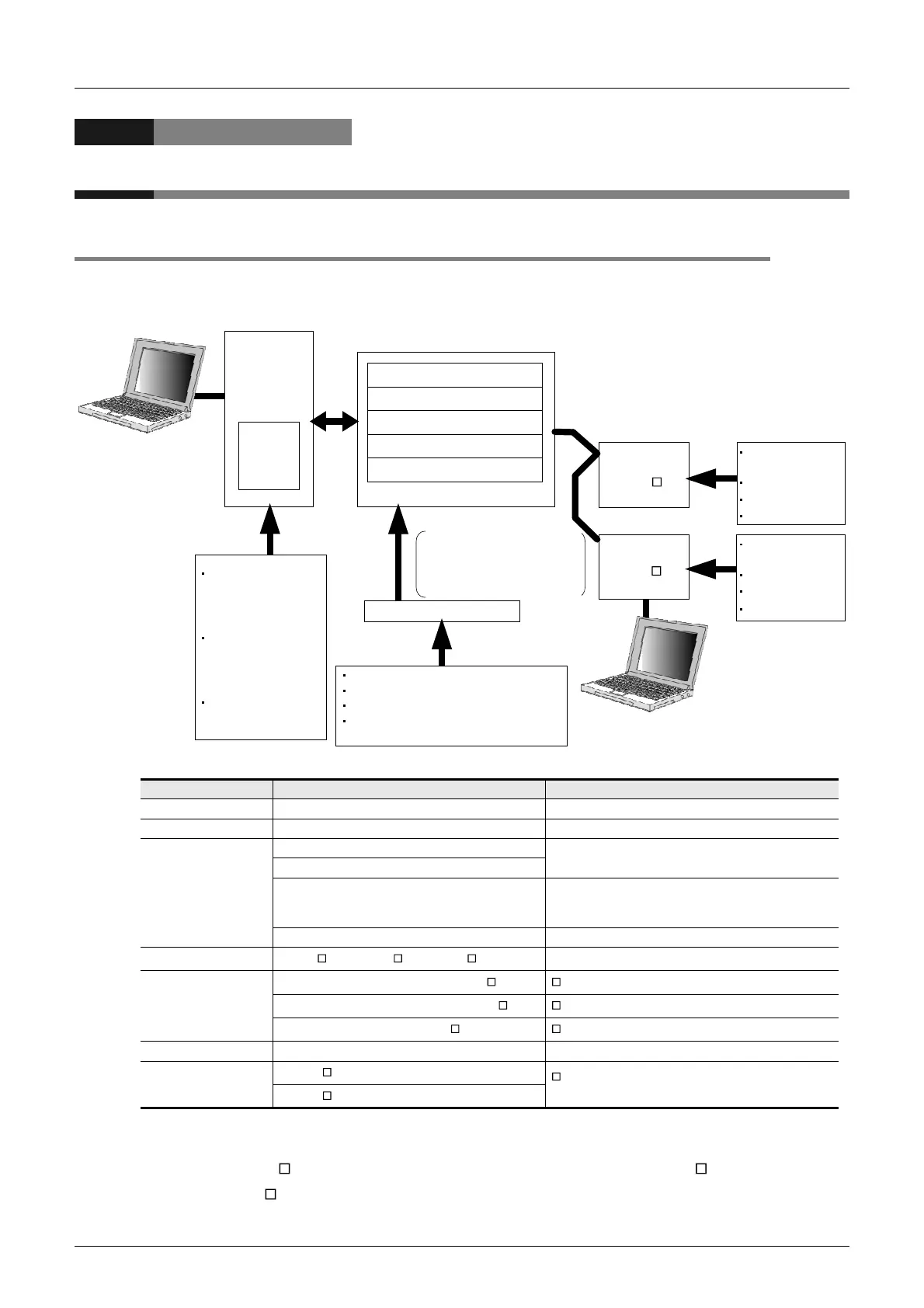

2.1 General Configuration
20
FX3U-20SSC-H Positioning Block User's Manual
2. System Configuration
2.1 General Configuration
Component list
*1. Connection via the FA transparent function of the GOT1000 (only the GT15 and GT11 Series) is
enabled in FX Configurator-FP Ver. 1.30 or later.
*2. The MR-J3W- B can be connected within the functional range of the MR-J3- B.
*3. The MR-J3- BS can be connected to the 20SSC-H later than Ver.1.40.
However, it does not support the fully closed loop system.
Part name Model name Remarks
Positioning block FX3U-20SSC-H -
PLC FX3U/FX3UC PLC -
PC software
GX Works2
PLC programming software
GX Developer
FX Configurator-FP
*1
Setting/Monitoring software for setting or monitoring the
servo parameters, positioning parameters and table
information
MR Configurator Servo amplifier set-up software
Servo amplifier
MR-J3- B, MR-J3W- B
*2
, MR-J3- BS
*3
-
SSCNET III cable
Inside panel standard code : MR-J3BUS M : 015/03/05/1/3(Cable length: in meters)
Outside panel standard cable : MR-J3BUS M-A : 5/10/20(Cable length:in meters)
Long distance cable : MR-J3BUS M-B : 30/40/50(Cable length:in meters)
Terminal block FX-16E-TB -
I/O cable
FX-16E- CAB
: 150/300/500
Cable length 150:1.5m, 300:3m, 500:5m
FX-16E- CAB-R
SSCNET III cable
(MR-J3- B)
Servo amplifier
FROM/TO instruction, etc.
Ladder
20SSC-H
GX Developer
FX Configurator-FP
(PC)
FX-16E-150CAB(-R)
Connector-attached
flat cable for connecting
terminal block with FX
programmable logic controller
MR Configurator(PC)
Positioning parameter
Table information
Servo parameter
Control data
Monitor data
Servo amplifier
LS for forward
rotation limit
(X-axis, Y-axis)
LS for reverse
rotation limit
(X-axis, Y-axis)
STOP switch
(X-axis, Y-axis)
Emergency stop
input signal
Upper limit signal
Lower limit signal
DOG signal
Emergency stop
input signal
Upper limit signal
Lower limit signal
DOG signal
(MR-J3- B)
FX3U/FX3UC
PLC
FX-16E-TB Terminal block
START input (X-axis, Y-axis)
DOG input (X-axis, Y-axis)
Interrupt input (X-axis, Y-axis)
Manual pulse generator A/B-phase
division input (X-axis, Y-axis)
*1
