1 Introduction
1.2 External Dimensions and Part Names
18
FX3U-20SSC-H Positioning Block User's Manual
1.2 External Dimensions and Part Names

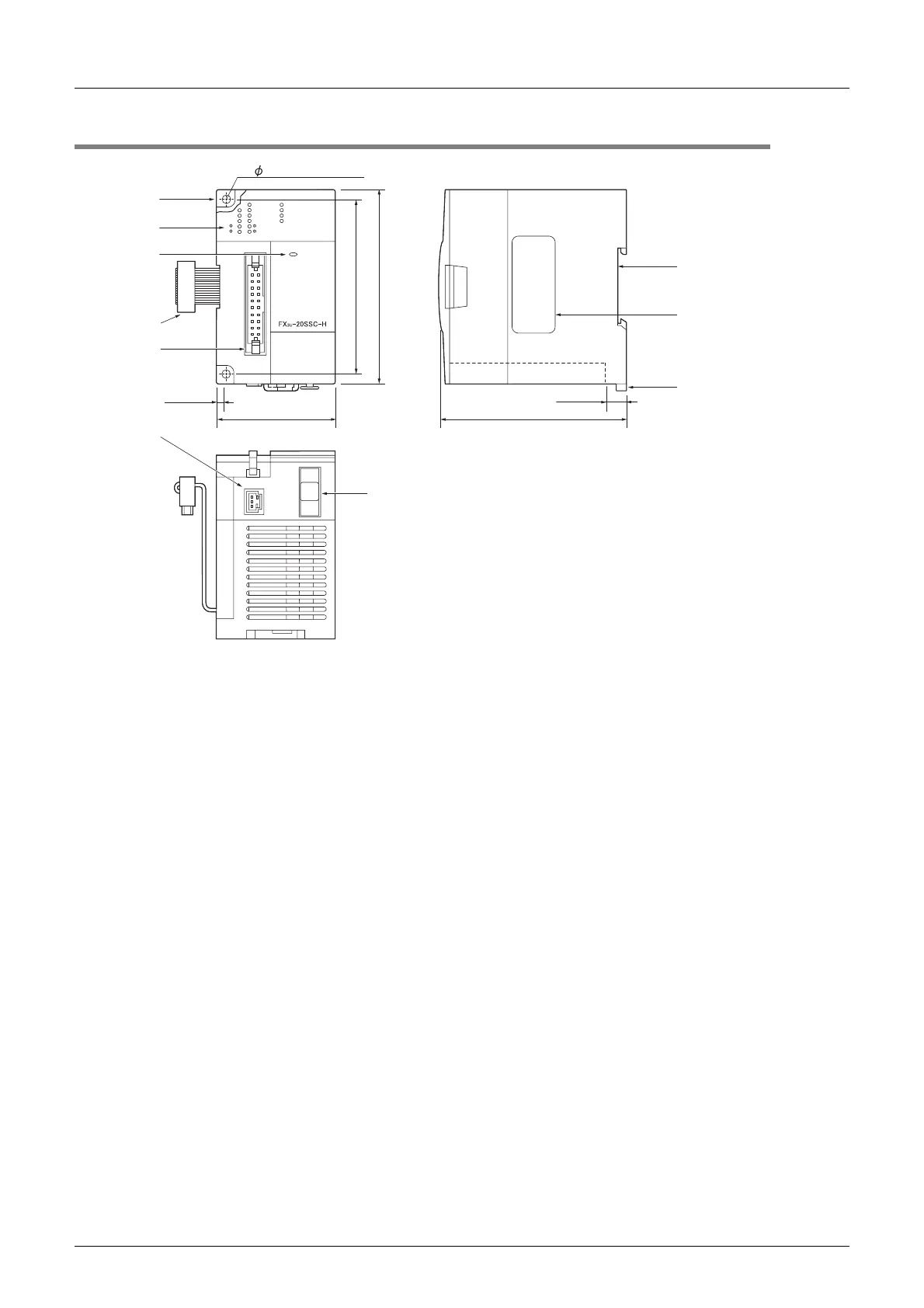

[1] Direct mounting hole:2 holes of φ 4.5 (0.18") (mounting screw: M4 screw)
[2] Status LEDs
→ Refer to Section 1.3
[3] POWER LED (green)
[4] Extension cable
[5] Input connector
[6] Power supply connector
[7] DIN rail mounting groove (DIN rail: DIN46277)
[8] Name plate
[9] DIN rail mounting hook
[10] SSCNET III connector
POWER
MOTOR-Y
START
DOG
INT0
INT1
A
B
X-R EADY
Y-RE ADY
X-ERROR
Y-ER RO R
INT0
INT1
A
B
55(2.17")
87(3.43")
80(3.15") (Mounting hole pitch)
90(3.55")
2- 4.5 Mounting hole
[7]
[1]
[2]
[3]
[4]
[5]
[6]
[10]
[8]
[9]
Unit:
MASS(Weight):
Accessory:
mm (inches)
0.3kg (0.66 lbs)
- Special Unit/Block No. label
- FX
2NC-100MPCB Power supply cable [1m (3’3")]
- Dust proof protection sheet
4(0.16")
9(0.36")
