10.9.2 With mode
The specified m code turns ON when the operation starts.

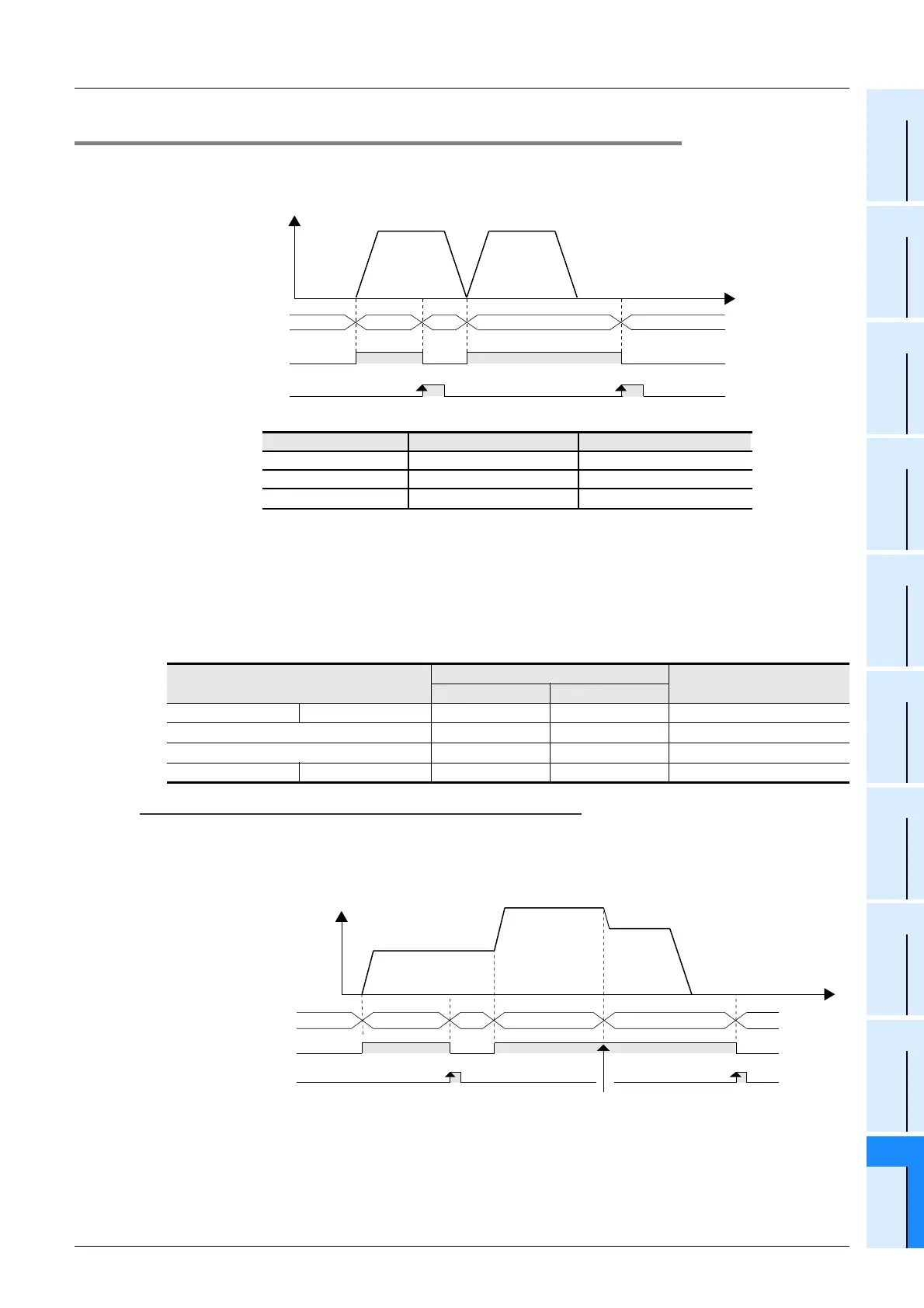

1. Operation
1) The 20SSC-H stores "10010" in the m code No. of monitor data while also starting table No. 0 with
"10010" and turning ON the m code ON flag in the status information.
2) At m code OFF, the m code ON flag and m code itself turns OFF, and the 20SSC-H stores "-1" in the m
code No. of monitor data.
3) The next table No. cannot be executed unless the m code OFF command has been activated.
→ For the parameters, control data and monitor data, refer to Chapter 11
Note
• With a "10000" in the m code information, the 20SSC-H turns to standby mode. With the start command or
m code OFF command, the m code turns OFF.
• The 20SSC-H continues operating during multi-speed operation and continuous pass operation without m
code OFF commands. The specified m codes also turn ON in consecutive order.
2. Available m code Nos.
To use the m code in the with mode, set the m code in the range from 10000 to 32767.
BFM number
Data type
X-axis Y-axis
m code OFF command Operation command 1 BFM #518 b11 BFM #618 b11 Control data
m code number BFM #9 BFM #109 Monitor data
Number of the table in operation BFM #16 BFM #116 Monitor data
m code ON Status information BFM #28 b8 BFM #128 b8 Monitor data
Speed
Time
m code ON
m code No.
m code OFF command
Table No. Operation information m code information
0
1
10010
(with mode)
(1-speed positioning)
1 (1-speed positioning)
(with mode)
(END)
1 10011
20 -1
10011-1 -110010 -1
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
10010 -1 10011 10012 -1
Speed
Time
The next operation is executed
even if the m code OFF command is not ON.
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
m code ON
m code No.
m code OFF command
