7.1 Note on Setting Parameters
7.1.2 Setting parameters [FX Configurator-FP] [Recommended]
This subsection explains how to set positioning parameters and servo parameters of the 20SSC-H using FX
Configurator-FP.
The setting method is explained on the condition that a file is created in FX Configurator-FP.
→ For details on FX Configurator-FP operation procedures,
refer to the FX Configurator-FP OPERATION MANUAL
1 Setting positioning parameters

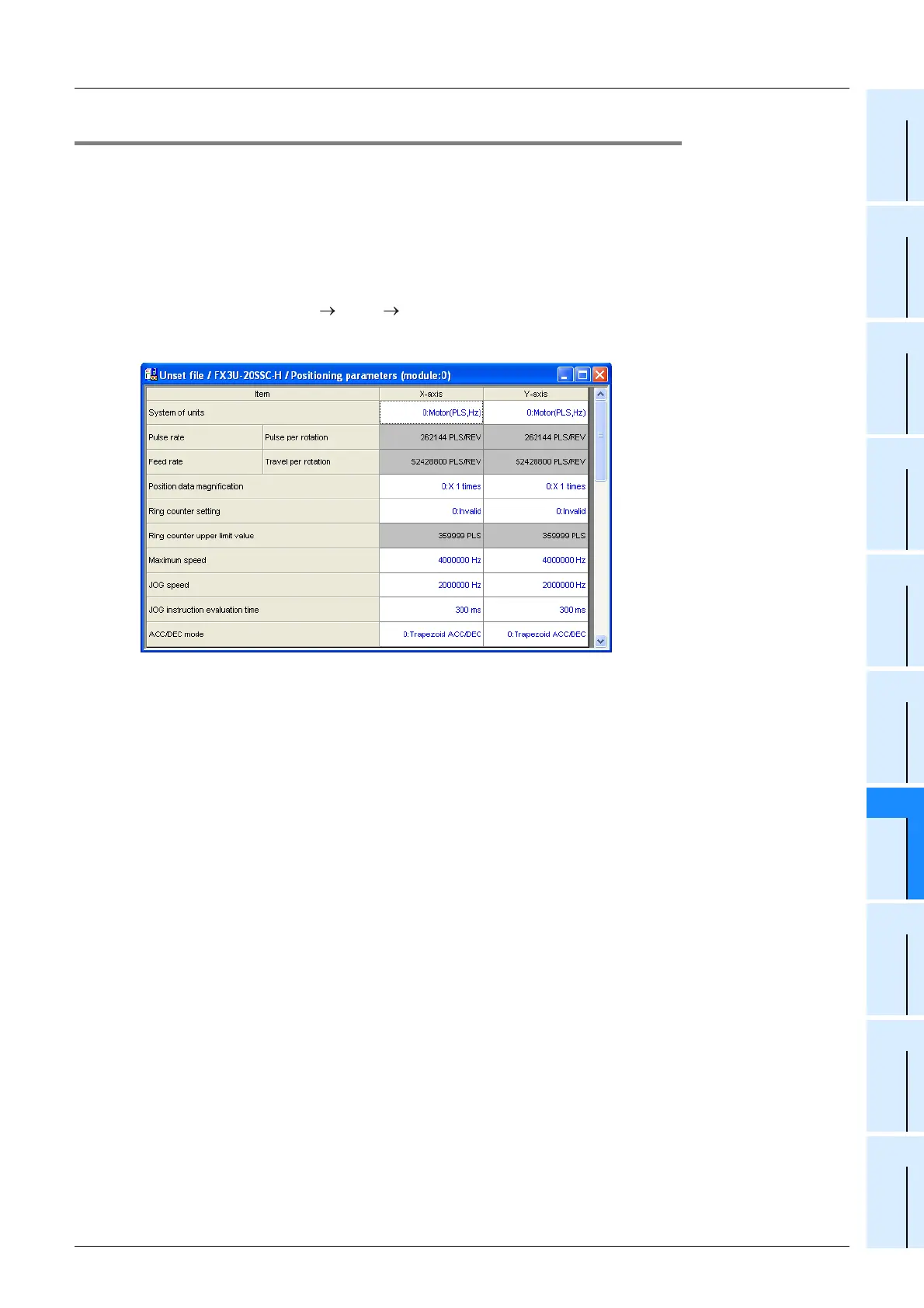

Double-click [File name] [Edit] [Positioning parameters] in the file data list.
When the edit window for positioning parameters appears, set each parameter.
→ For the contents of setting of positioning parameters, refer to Section 11.1
