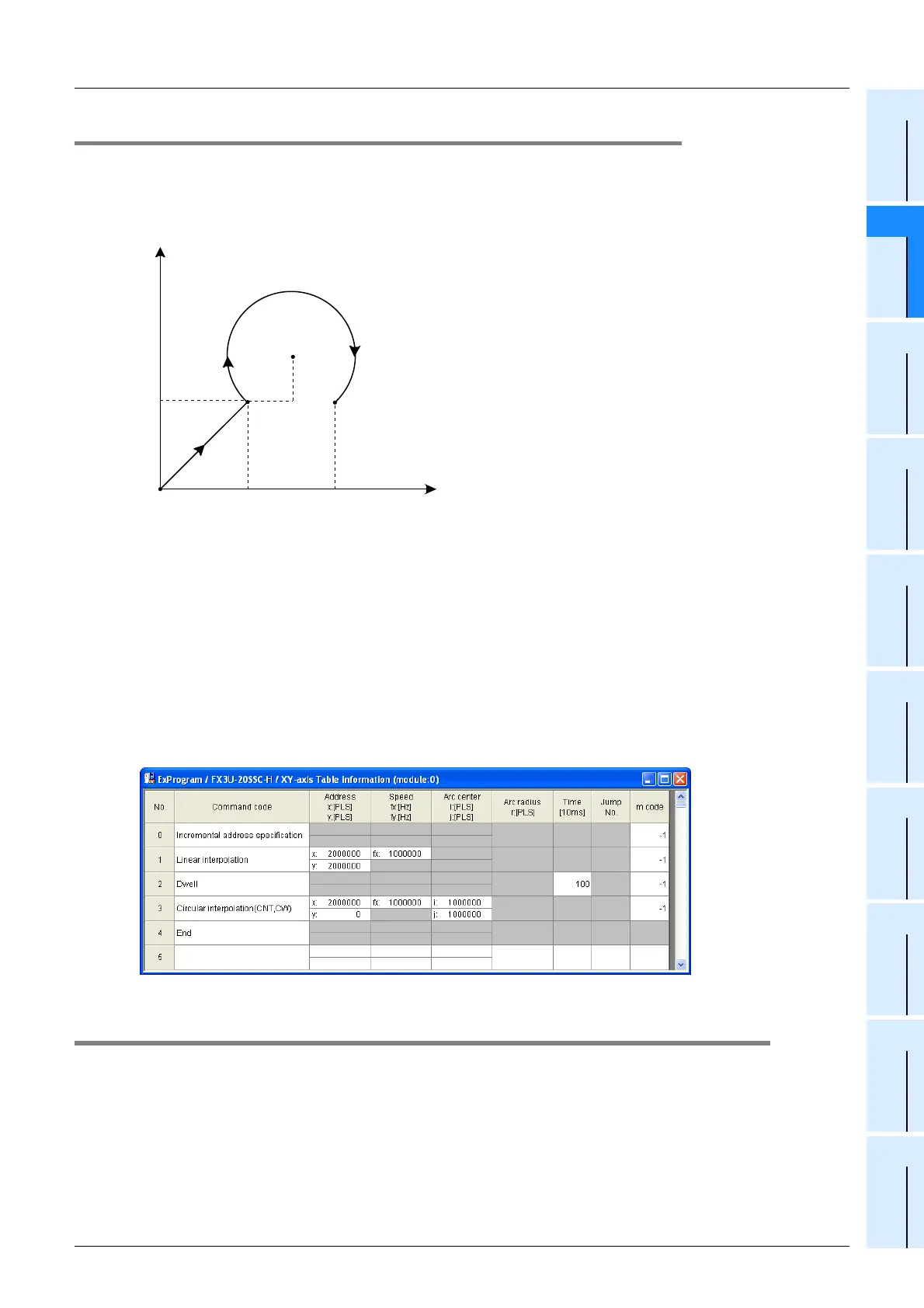

12.3.5 Circular interpolation operation [table operation (simultaneous)]
Circular interpolation operation works in table operation. In this example, circular interpolation operation
functions by the drive to increment.
1. Operation details
XY-axis
• When turnig X007 "X-axis START command" to ON with X024 "X-axis selection of table operation
(simultaneous)" turned ON, operation starts in the order of the XY-table information.
1) Linear interpolation operation
2) Dwell
3) Circular interpolation operation
4) End
• When turnig X001 "X-axis stop" to ON during positioning, operation decelerates to stop.
2. Setting table information
Set the XY-axis table information as follows on FX Configurator-FP.
12.4 Sequence Program
This program example describes the sequence program as unit No.0.
Rewrite the unit No. with the actual system configuration to be used.
→ For details on the unit No., refer to Subsection 12.1.1
→ For details on device assignments, refer to Section 12.2
→ For an explanation of operation, refer to Section 12.3
Y-axis
X-axis
1,000,000
1,000,000
2,000,000
2,000,000 4,000,000
