FX3U-20SSC-H Positioning Block User's Manual
Caution to conform with EC Directives
Attach the ferrite cores to the power supply and the input cables (20SSC-H side).
Attach the ferrite core approximately 200 mm or less from connector on the 20SSC-H side.
• The ferrite core should use the following equivalent
product:
- Power supply cable (needs at least 1 turn)
Model name: ZCAT2035-0930
(Manufactureed by TDK co., Ltd.)
- Input cable
Model name: ZCAT3035-1330
(Manufactureed by TDK co., Ltd.)

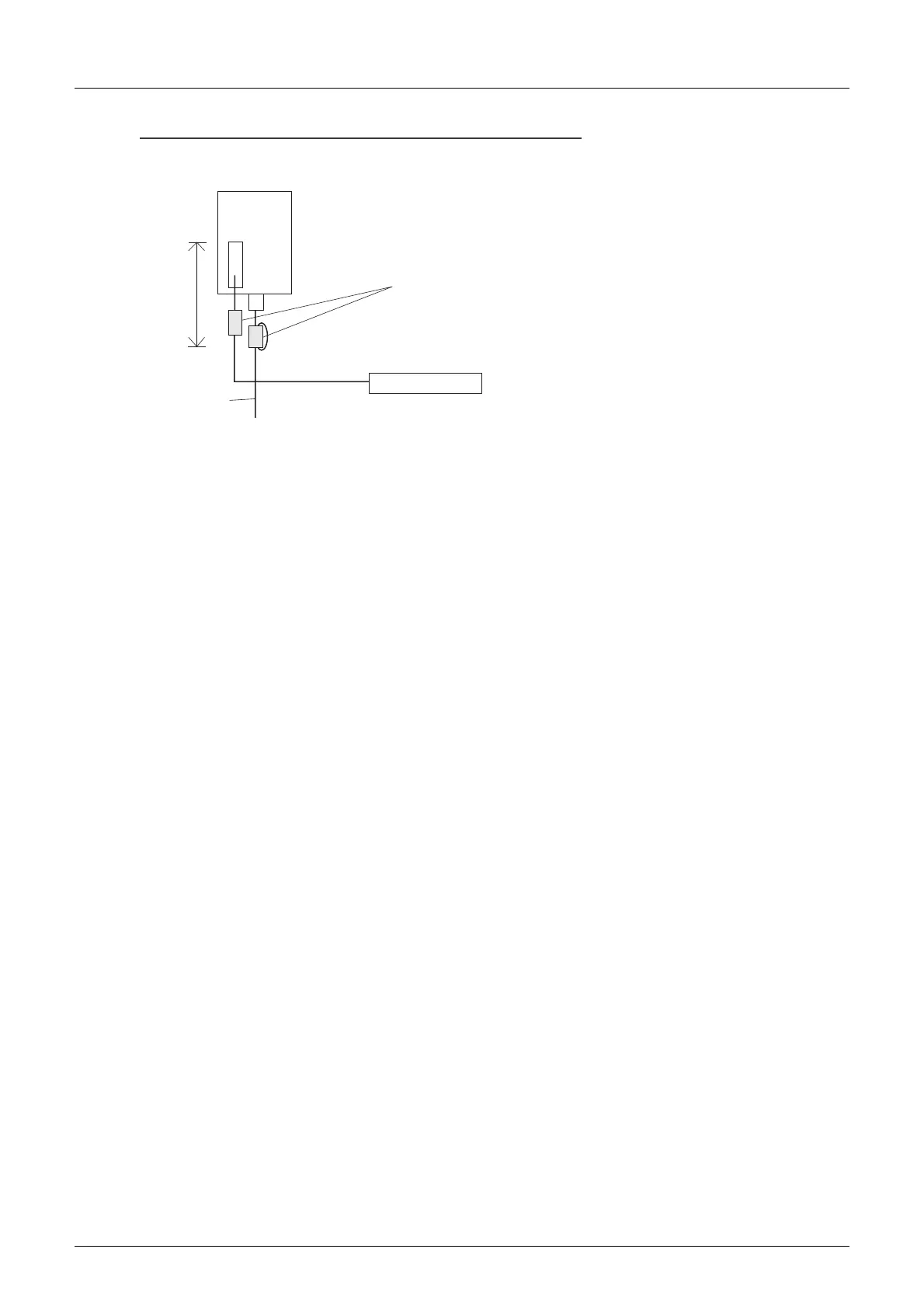

200 mm (0.78") or less
20SSC-H
Ferrite cores
Input cable
External equipment
Power supply cable
1 turn
